Luggage compartment side trim (fixed rear seat)

The following list pertains to Fig 1.

1. Luggage compartment trim
   • Remove luggage compartment floor covering.
   • Remove rear cross panel trim. See REAR CROSS PANEL TRIM, REMOVING AND INSTALLING .
   • Remove screws -7- (2x) for fastening rings -8-.
   • Unclip clips -5- (2x).
   • Unclip clip -3-.
   • Unclip clip -4-.
   • Remove cover -2-.
   • Unclip luggage compartment trim -1- at rear.
   • Pull luggage compartment trim -1- upward out of retaining clips -9- (2x).
   • Pull out luggage compartment trim -1- behind back panel trim.
2. Cover
3. Clip
4. Clip
5. Clips (2x)
6. Mounts
7. Screws (2x)
   • Tightening torque: 4.5 Nm (40 in lb)
8. Fastening rings
9. Retaining clip

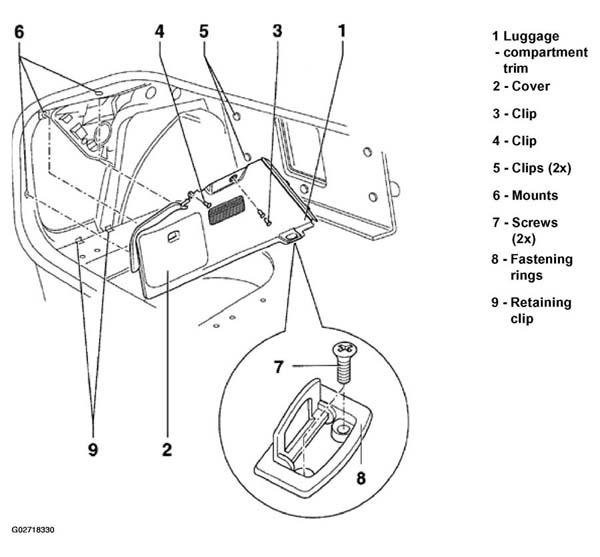

Fig 1: Identifying Component Of Luggage Compartment Side Trim (Fixed Rear Seat, Sedan)
Courtesy of AUDI OF AMERICA, INC.
