Automatic vertical aim control system control module -J431-, removing and installing: Removing

• Remove left luggage compartment liner. See LUGGAGE COMPARTMENT SIDE TRIM (FIXED REAR SEAT) or LUGGAGE COMPARTMENT SIDE TRIM (SPLIT REAR SEAT) or CARGO AREA SIDE TRIM .

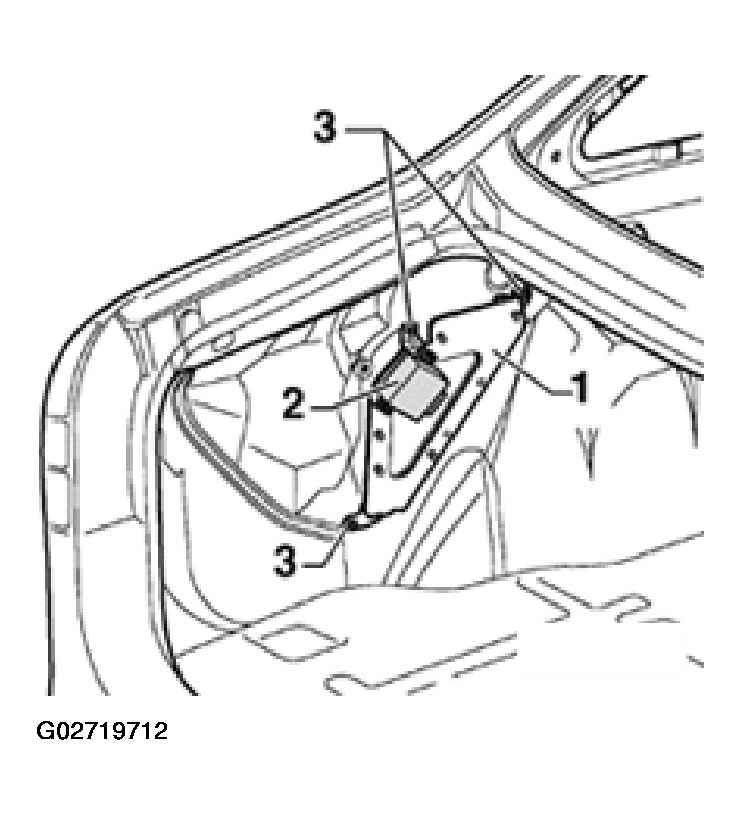

The automatic vertical aim control system control module -2- is mounted on bracket -1- under the luggage compartment liner.

• If necessary remove screws -3-.
Fig 1: Locating Automatic Vertical Aim Control System Control Module

• Remove electrical connector.

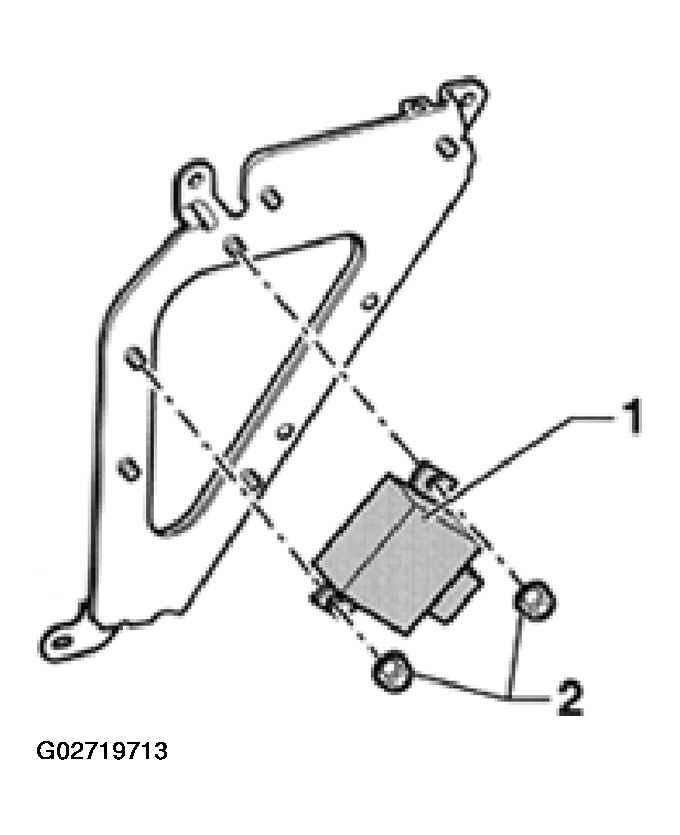

• Remove control module -1- by removing nuts -2-.
Fig 2: Removing Automatic Vertical Aim Control System Control Module
