DTC table: Notes

WARNING: This page is about a different variant/trim than selected.

The following table contains all possible malfunctions that are recognized by the Transmission Control Module (TCM) -J217- and displayed by the VAG 1551 or VAG 1552 Scan Tool (ST) when the Diagnostic Trouble Code (DTC) memory is checked.
The DTC is printed out in the "Rapid data transfer" operating mode only when the printer of the VAG 1551 scan tool is switched on. Example: 5-digit DTC 65535.
If malfunctions occur occasionally or if the DTC memory was not erased after corrective actions, these malfunctions are indicated as "sporadic" for a specified amount of time. Malfunction recognition by the TCM, see ON BOARD DIAGNOSTIC (OBD II), FUNCTION .
If components are determined to be malfunctioning when the DTC memory is checked, check the wiring to the components for a short circuit and open circuit.
See appropriate System Wiring Diagrams .
"Dcy " means "driving cycle. " Conditions for recognition of a driving cycle (Dcy), see MIL FUNCTIONAL CHECK .
Malfunction Indicator Lamp (MIL) function, see MALFUNCTION INDICATOR LAMP (MIL), FUNCTION .
The "MIL" column in the DTC table indicates the conditions for which the MIL will be switched on. If, for example, "2 Dcy" is indicated, it means that the MIL will be switched on after 2 driving cycles. If "Off "is indicated, the malfunction has no influence on the MIL. If "On" is indicated, the MIL will be switched on immediately when the malfunction occurs.

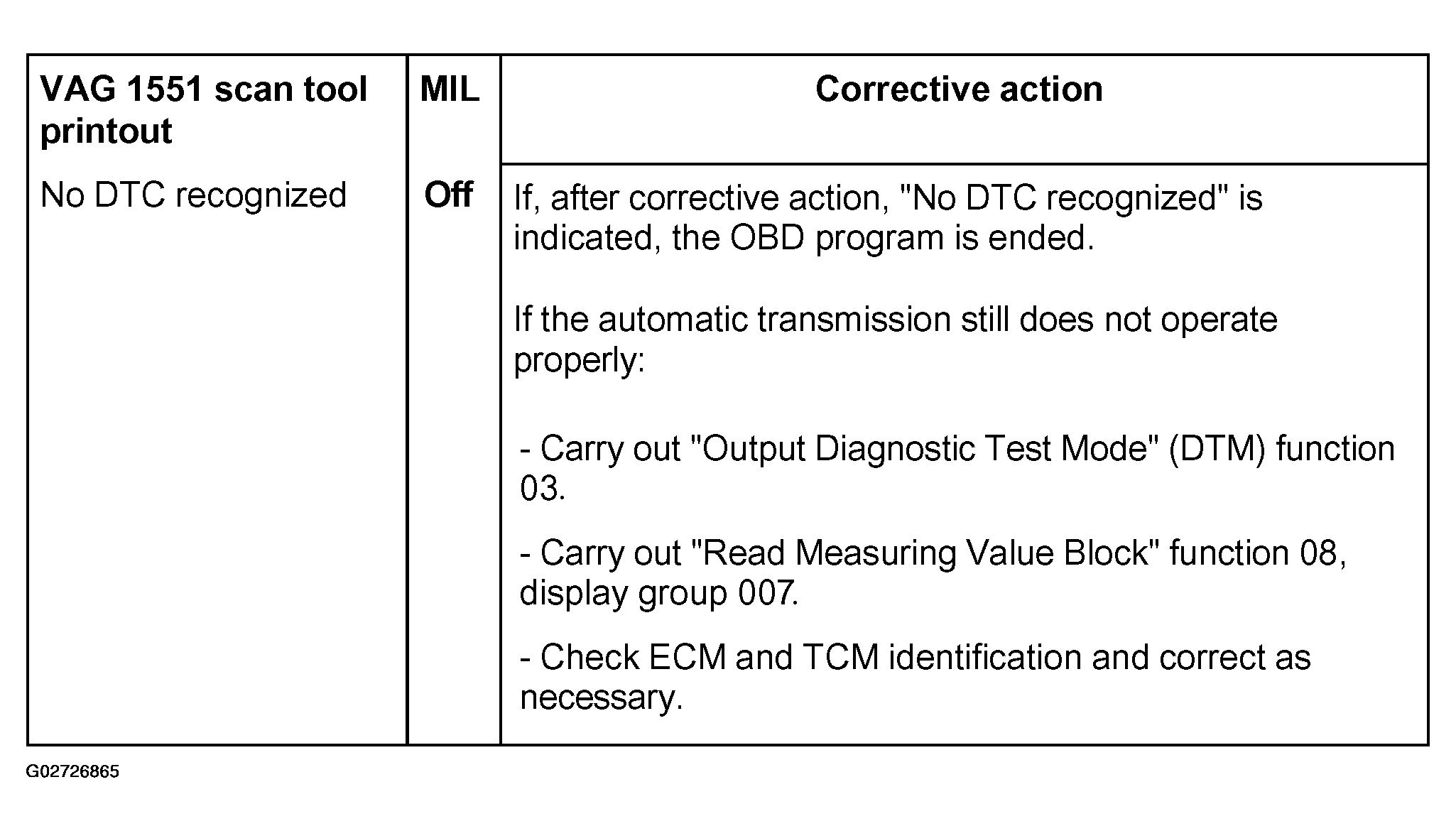

Fig 1: No DTC Recognized Diagnostic Chart

For output diagnostic test mode, see OUTPUT DIAGNOSTIC TEST MODE (DTM) (FUNCTION 03), CONDUCTING .
For "Read Measuring Value Block", see MEASURING VALUE BLOCK, READING (FUNCTION 08) .

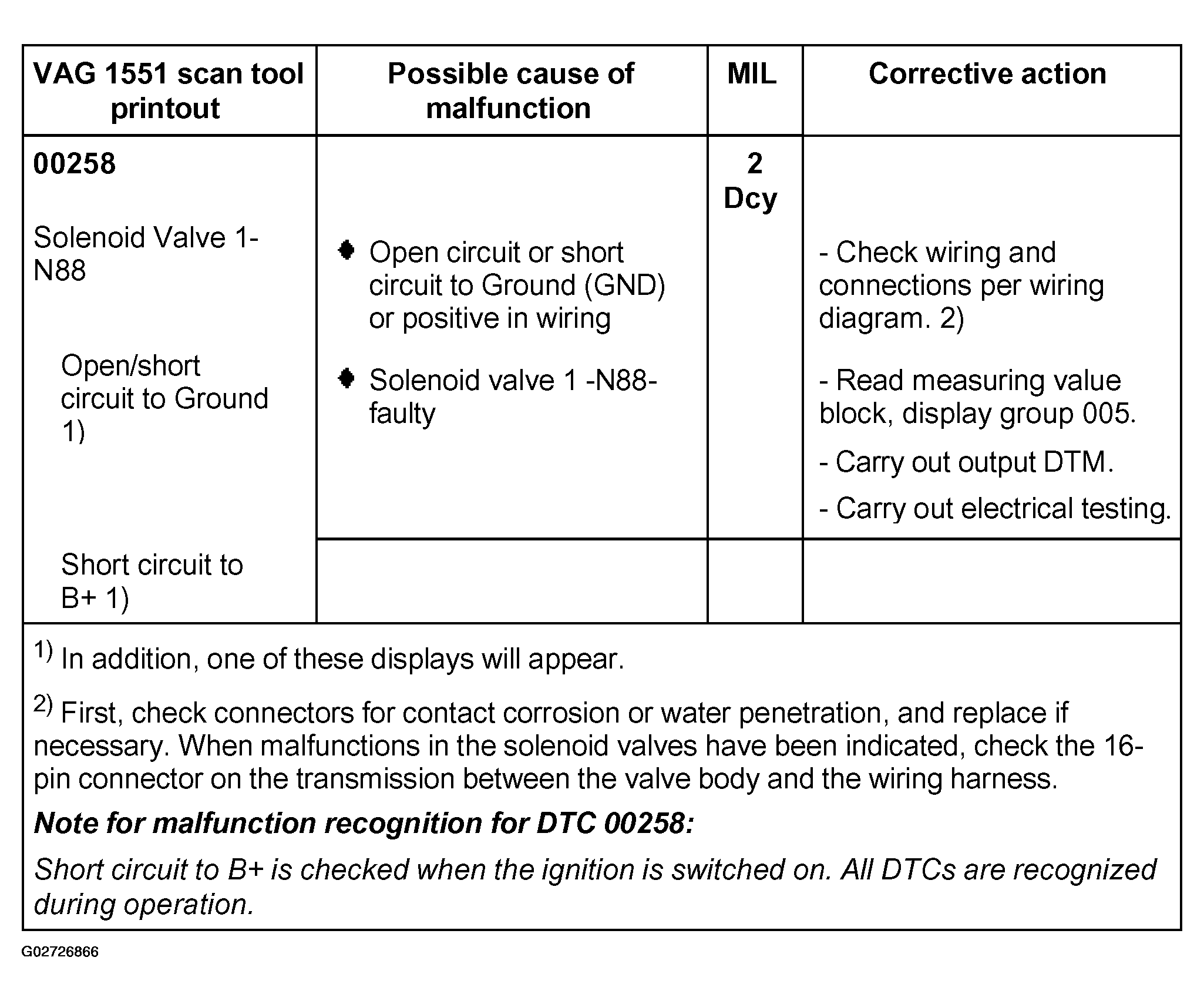

Fig 2: DTC 00258 Chart

For output diagnostic test mode, see OUTPUT DIAGNOSTIC TEST MODE (DTM) (FUNCTION 03), CONDUCTING .
For "Read Measuring Value Block", see MEASURING VALUE BLOCK, READING (FUNCTION 08) .
For electrical testing, see ELECTRICAL TESTING .

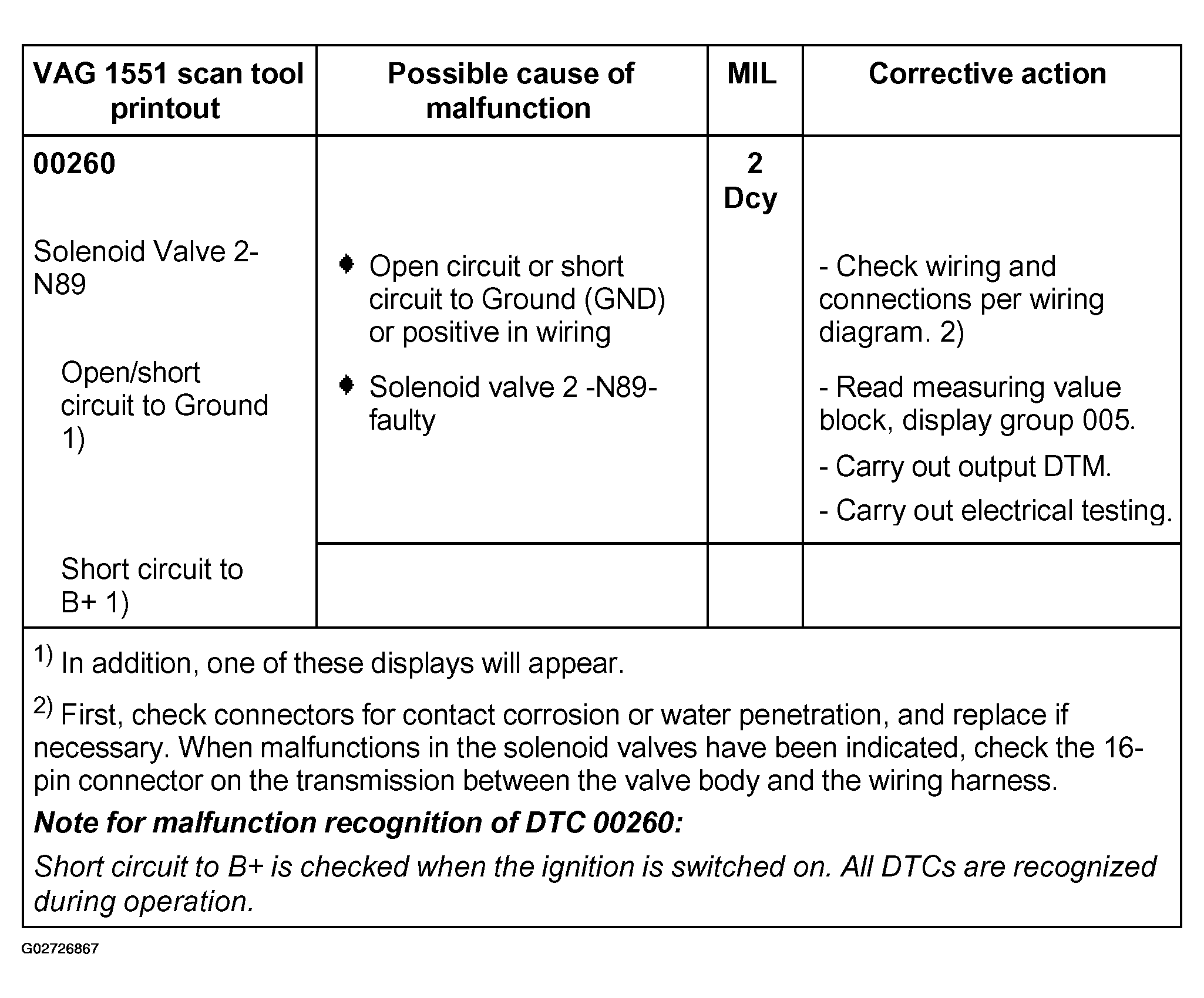

Fig 3: DTC 00260 Chart

For output diagnostic test mode, see OUTPUT DIAGNOSTIC TEST MODE (DTM) (FUNCTION 03), CONDUCTING .
For "Read Measuring Value Block", see MEASURING VALUE BLOCK, READING (FUNCTION 08) .
For electrical testing, see ELECTRICAL TESTING .

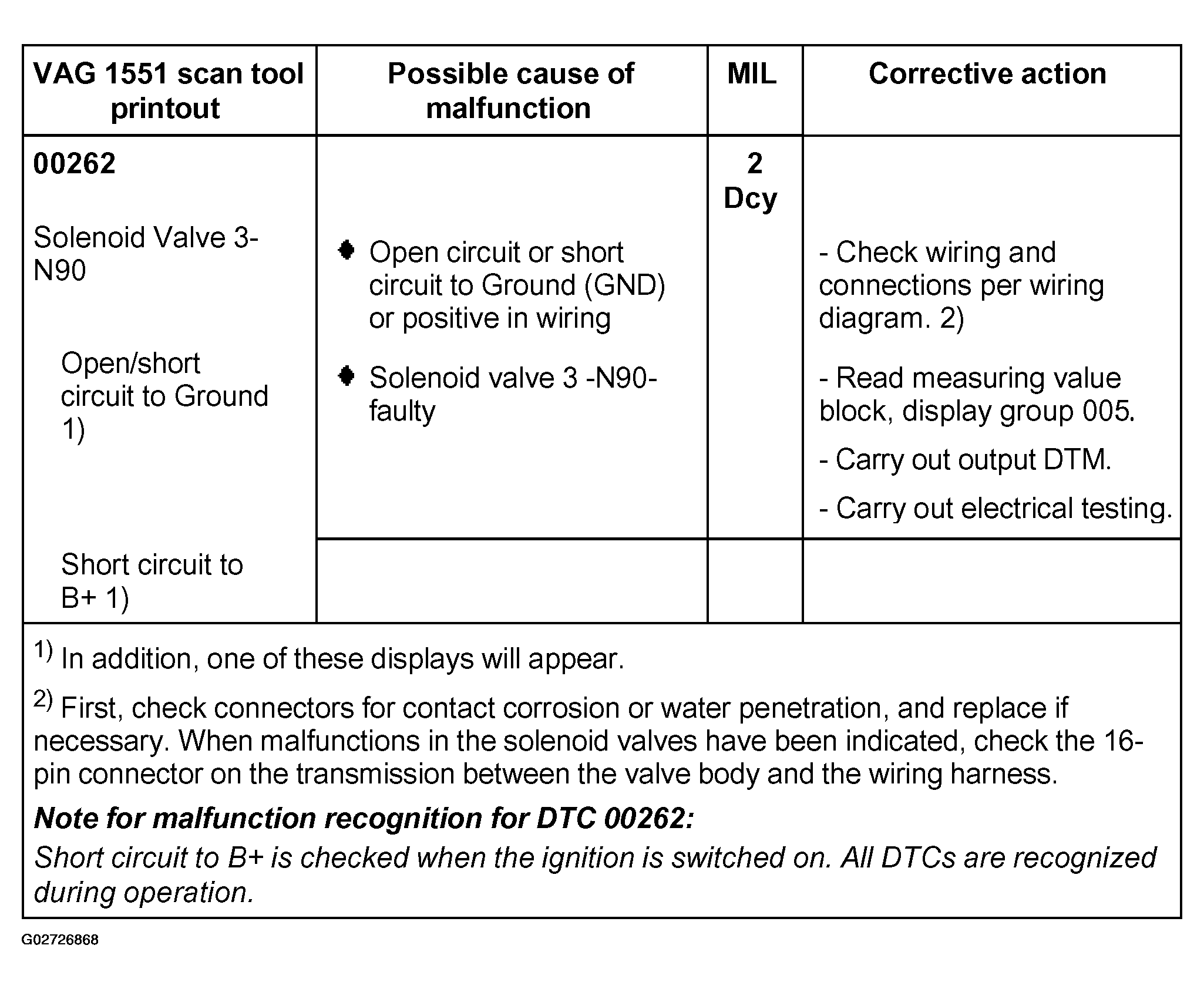

Fig 4: DTC 00262 Chart

For output diagnostic test mode, see OUTPUT DIAGNOSTIC TEST MODE (DTM) (FUNCTION 03), CONDUCTING .
For "Read Measuring Value Block", see MEASURING VALUE BLOCK, READING (FUNCTION 08) .
For electrical testing, see ELECTRICAL TESTING .

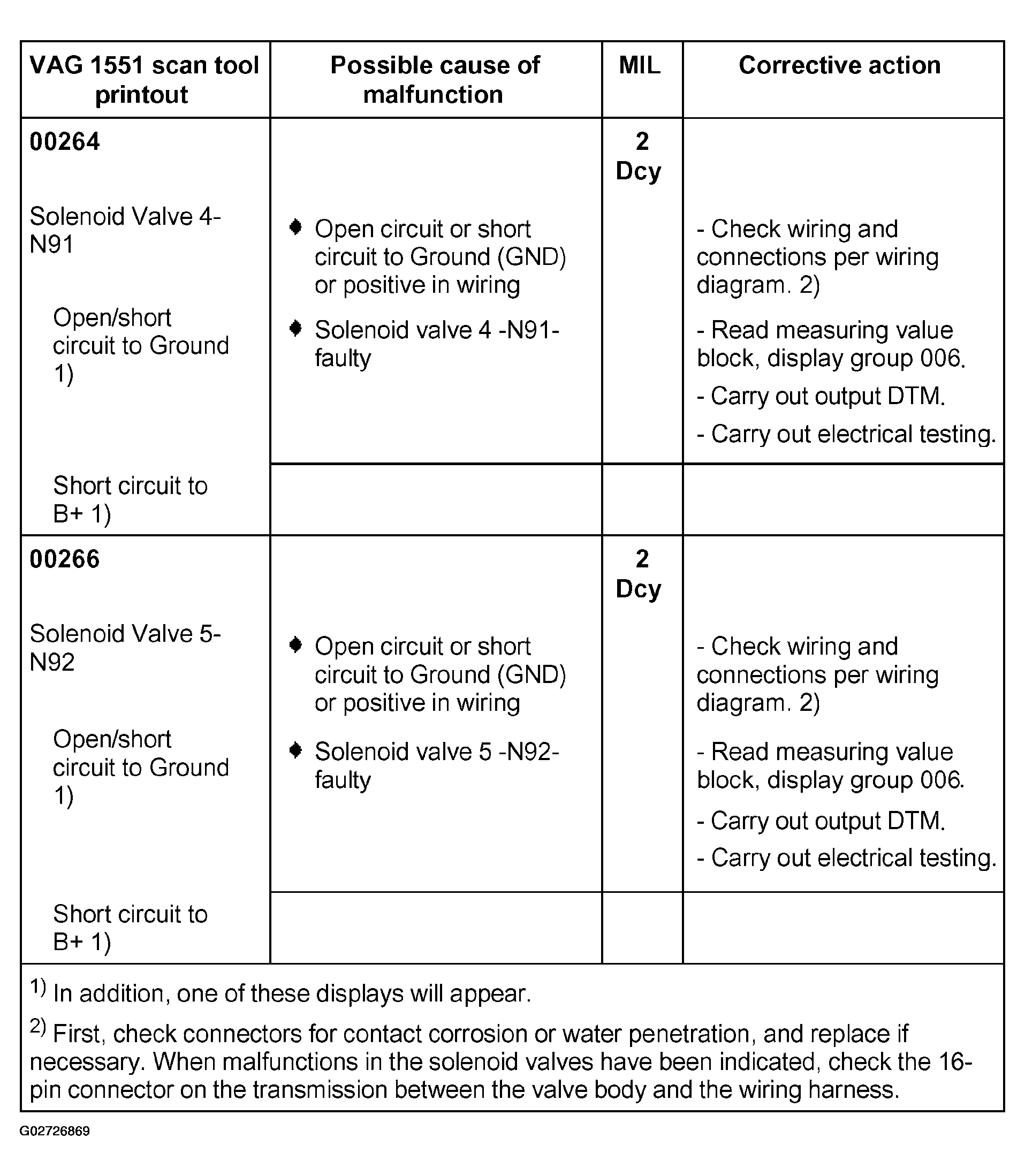

Fig 5: DTC 00264 And 00266 Chart

For output diagnostic test mode, see OUTPUT DIAGNOSTIC TEST MODE (DTM) (FUNCTION 03), CONDUCTING .
For "Read Measuring Value Block", see MEASURING VALUE BLOCK, READING (FUNCTION 08) .
For electrical testing, see ELECTRICAL TESTING .

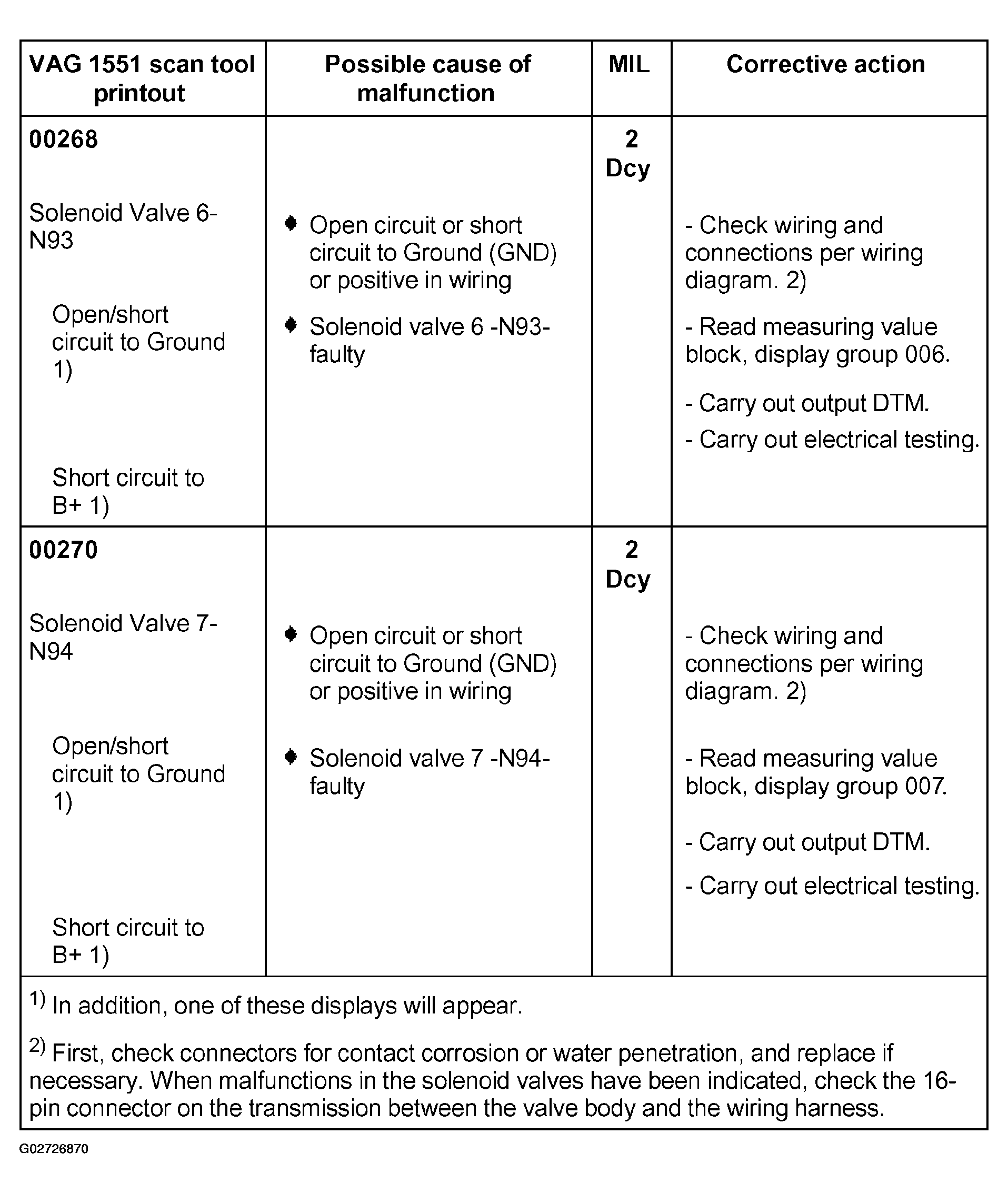

Fig 6: DTC 00268 And 00270 Chart

For output diagnostic test mode, see OUTPUT DIAGNOSTIC TEST MODE (DTM) (FUNCTION 03), CONDUCTING .
For "Read Measuring Value Block", see MEASURING VALUE BLOCK, READING (FUNCTION 08) .
For electrical testing, see ELECTRICAL TESTING .

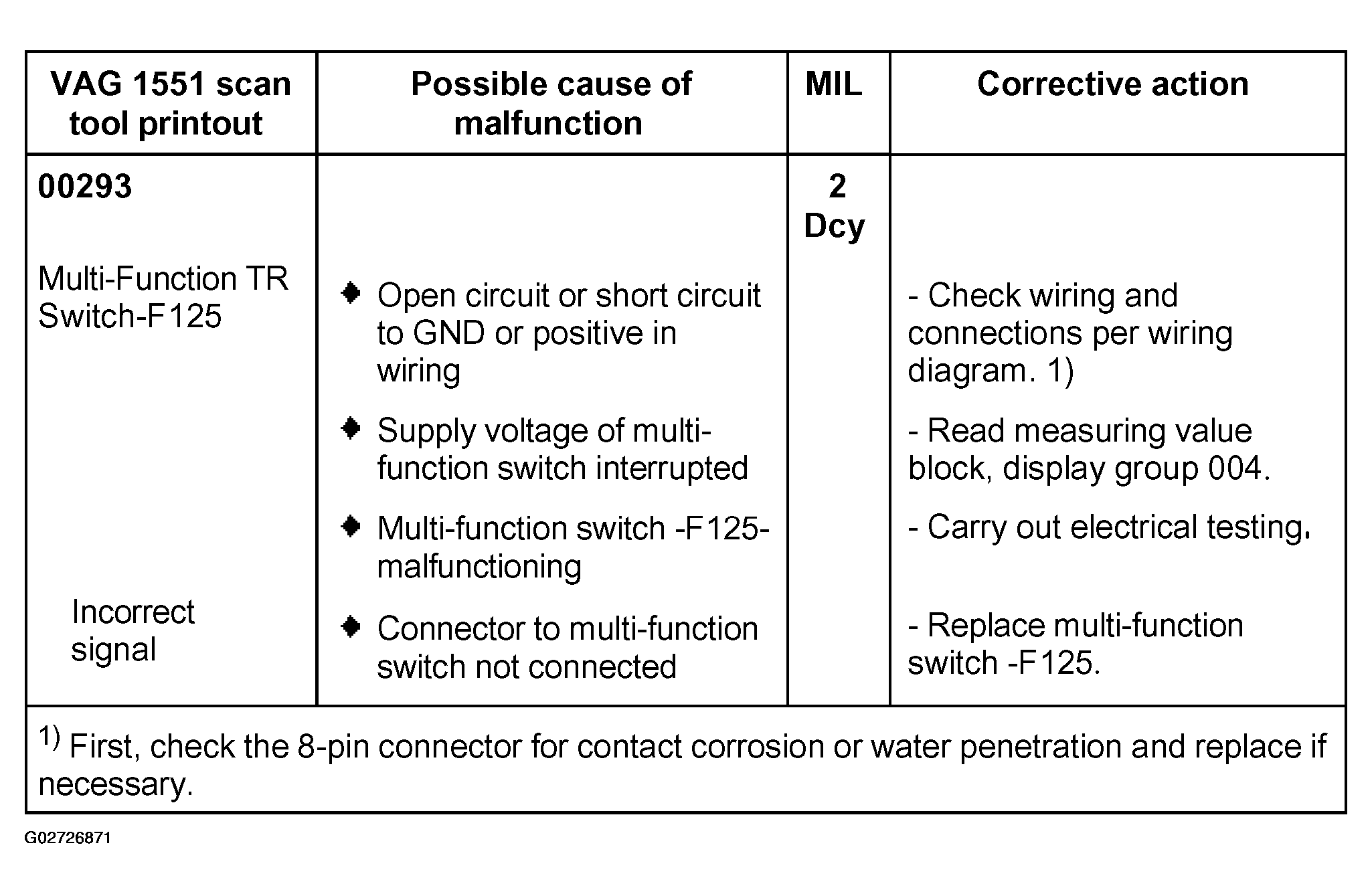

Fig 7: DTC 00293 Chart

For "Read Measuring Value Block", see MEASURING VALUE BLOCK, READING (FUNCTION 08) .
For electrical testing, see ELECTRICAL TESTING .
For multi-function switch replacement, see TRANSAXLE RANGE SWITCH .

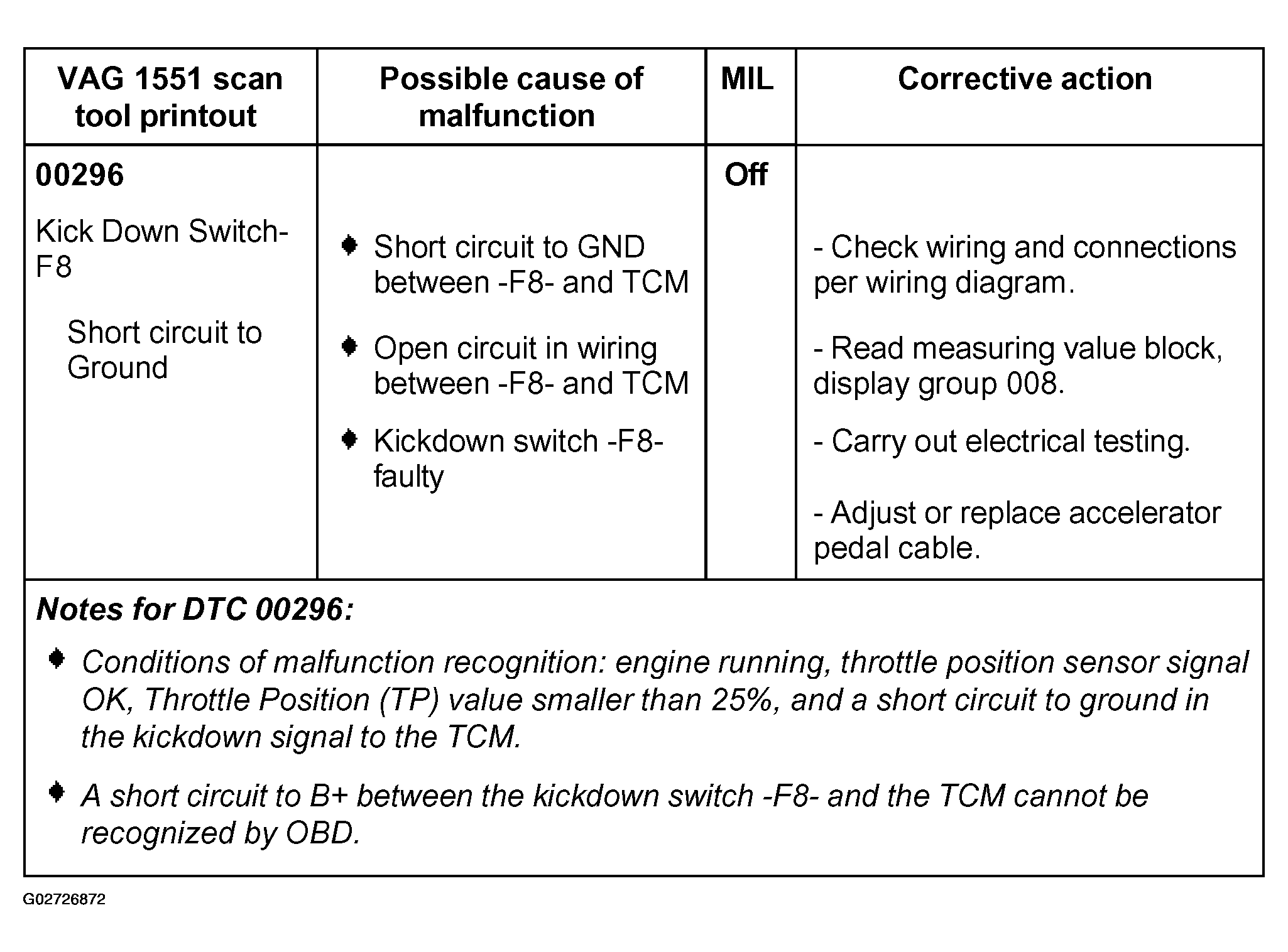

Fig 8: DTC 00296 Chart

For "Read Measuring Value Block", see MEASURING VALUE BLOCK, READING (FUNCTION 08) .
For electrical testing, see ELECTRICAL TESTING .
For accelerator cable adjustment, see ACCELERATOR PEDAL CABLE, ADJUSTING .

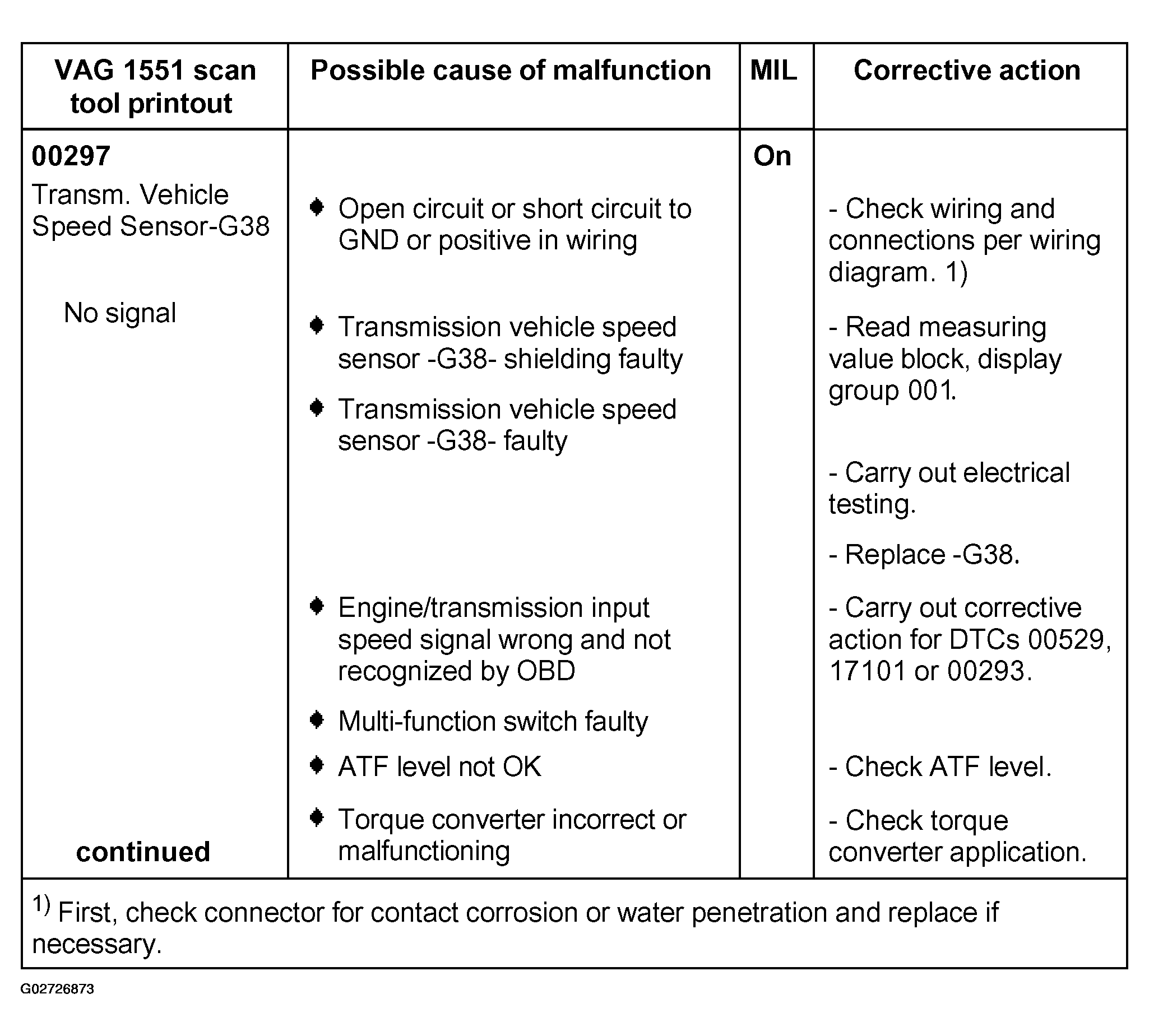

Fig 9: DTC 00297 Chart (1 Of 2)

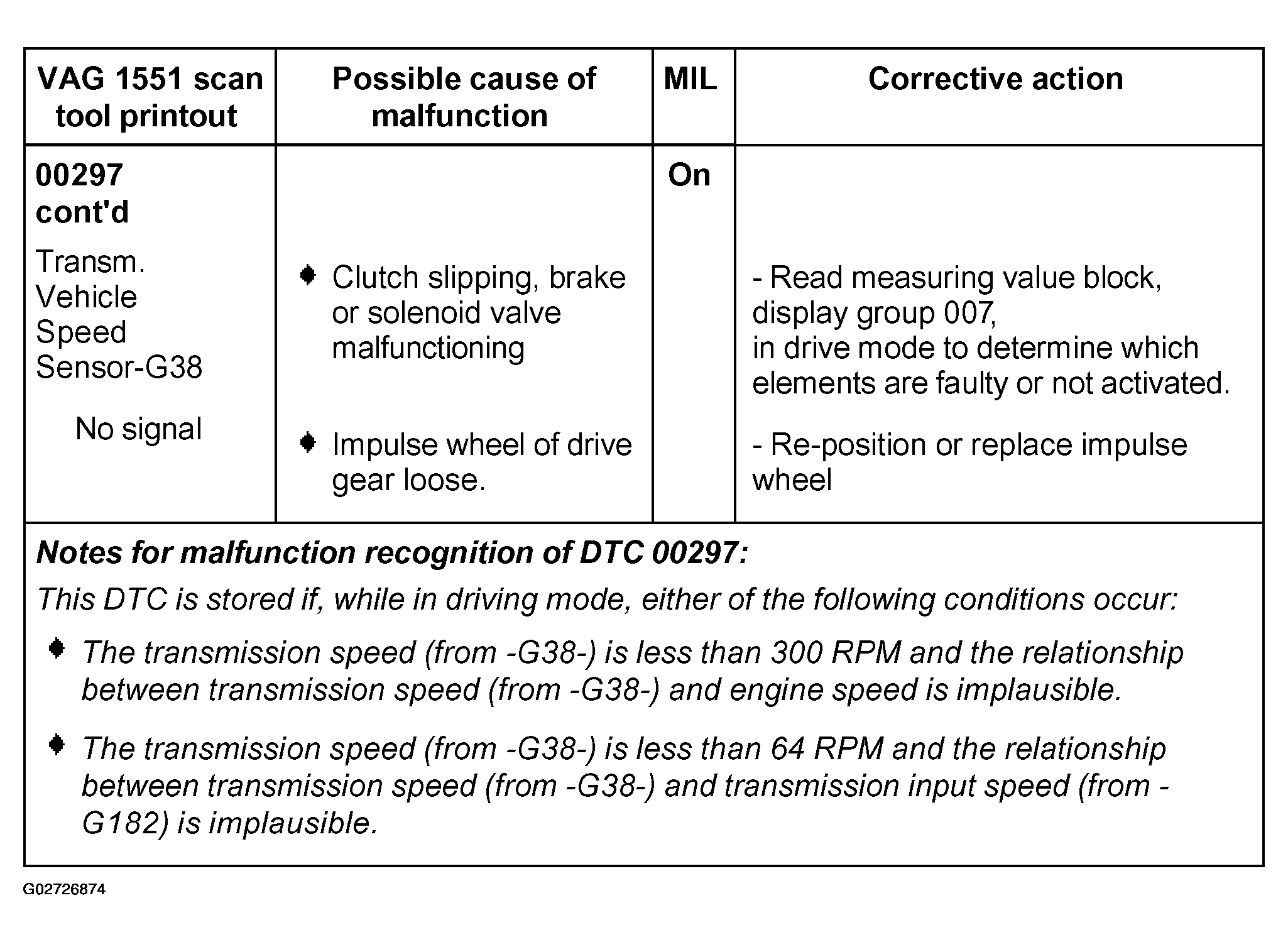

Fig 10: DTC 00297 Chart (2 Of 2)

For "Read Measuring Value Block", see MEASURING VALUE BLOCK, READING (FUNCTION 08) .
For electrical testing, see ELECTRICAL TESTING .
For transmission vehicle speed sensor -G38- replacement, see TRANSAXLE VEHICLE SPEED SENSOR .
For ATF levels, see CHECKING FLUID LEVELS .

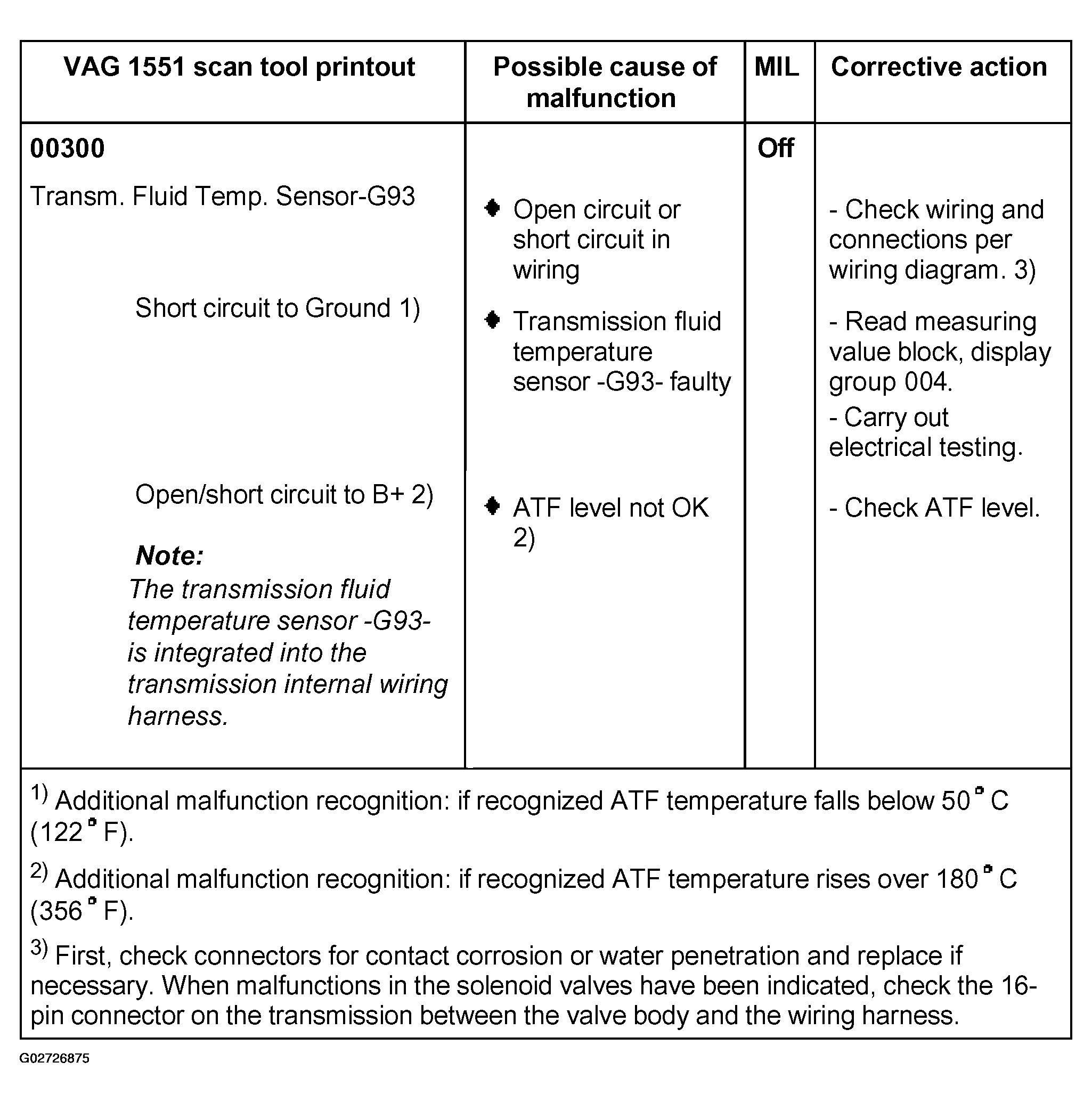

Fig 11: DTC 00300 Chart

For "Read Measuring Value Block", see MEASURING VALUE BLOCK, READING (FUNCTION 08) .
For electrical testing, see ELECTRICAL TESTING .
For ATF levels, see CHECKING FLUID LEVELS .

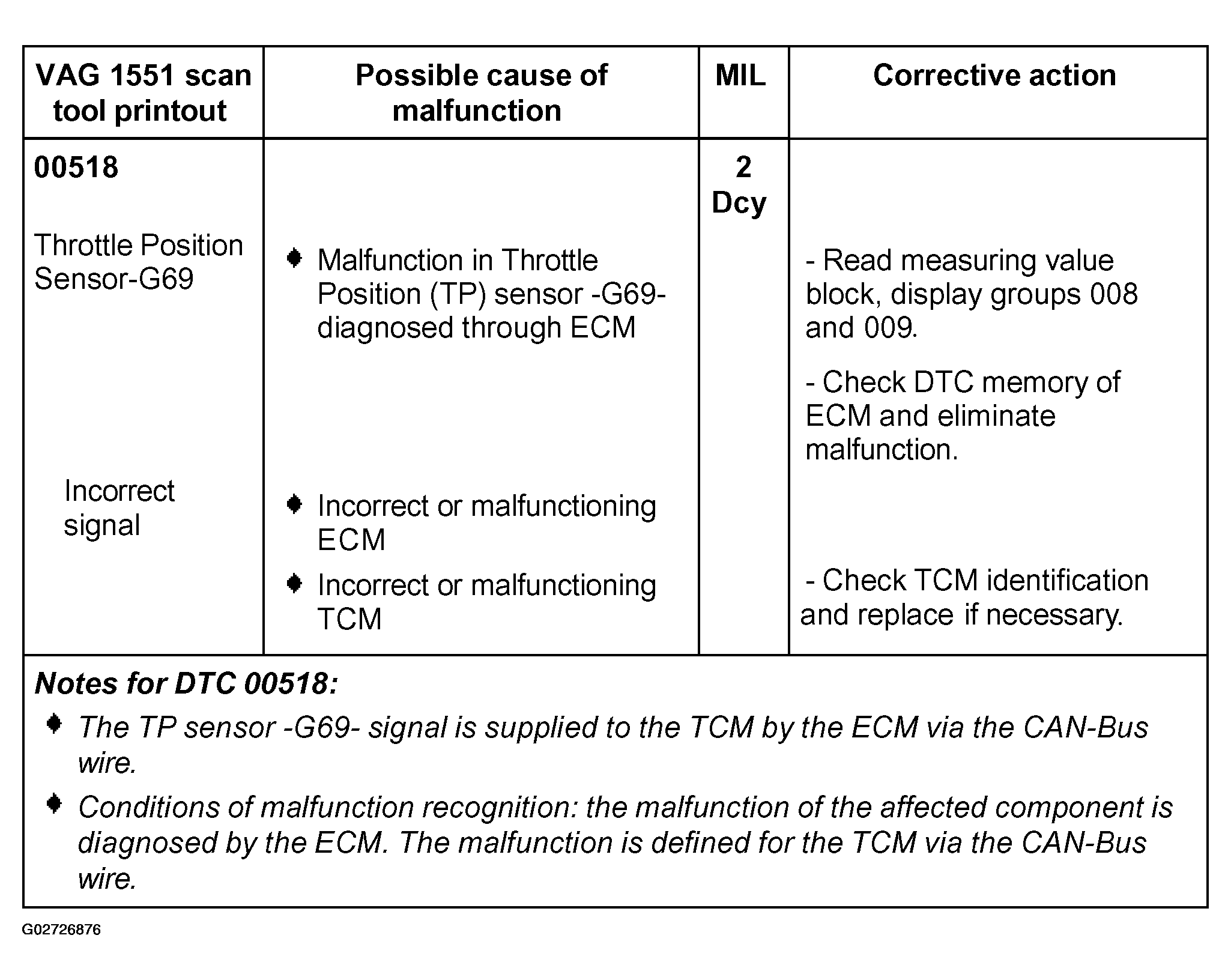

Fig 12: DTC 00518 Chart

For "Read Measuring Value Block", see MEASURING VALUE BLOCK, READING (FUNCTION 08) .
To check TCM identification, see ON BOARD DIAGNOSTIC (OBD II), CONDUCTING PROGRAM .

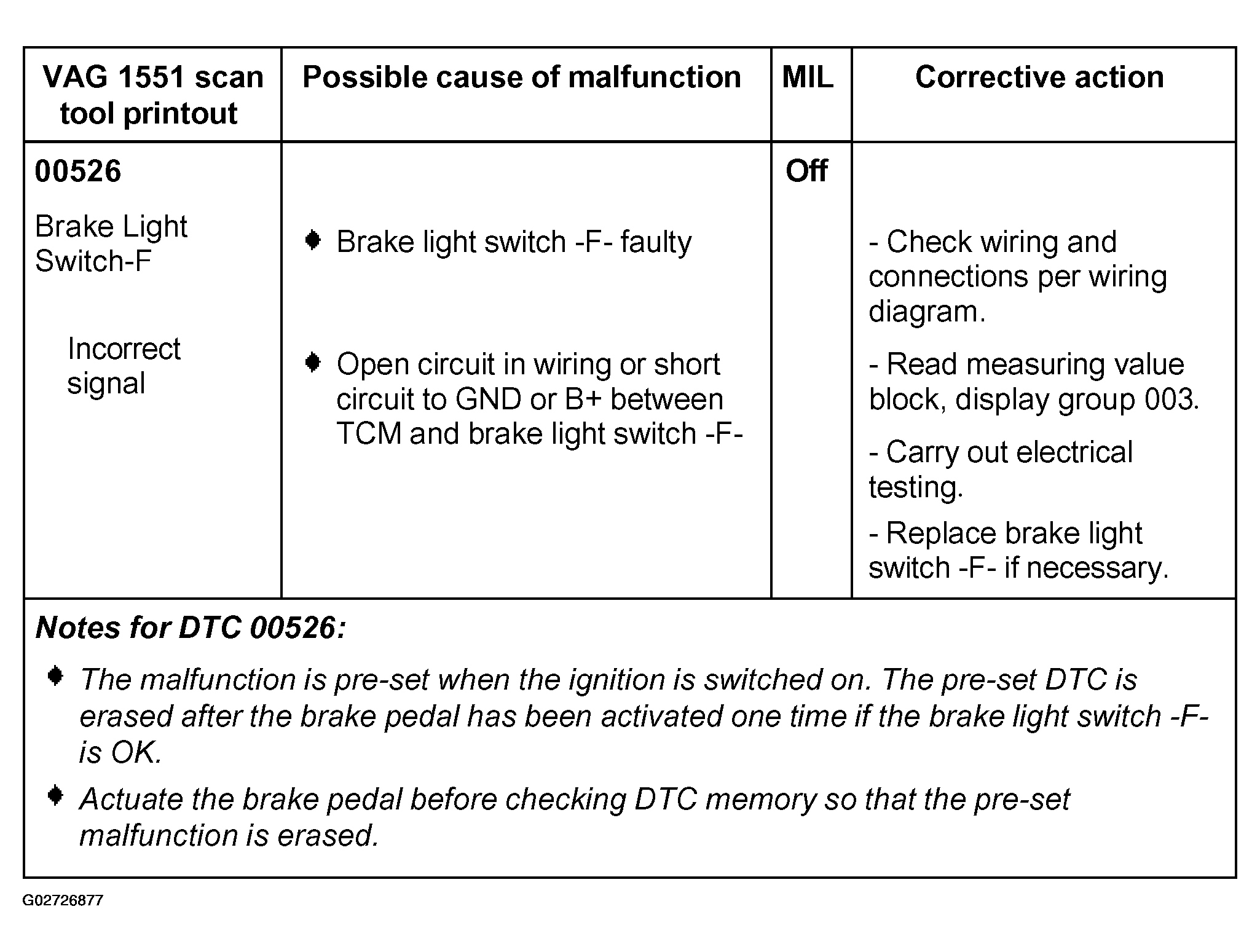

Fig 13: DTC 00526 Chart

For "Read Measuring Value Block", see MEASURING VALUE BLOCK, READING (FUNCTION 08) .
For electrical testing, see ELECTRICAL TESTING .

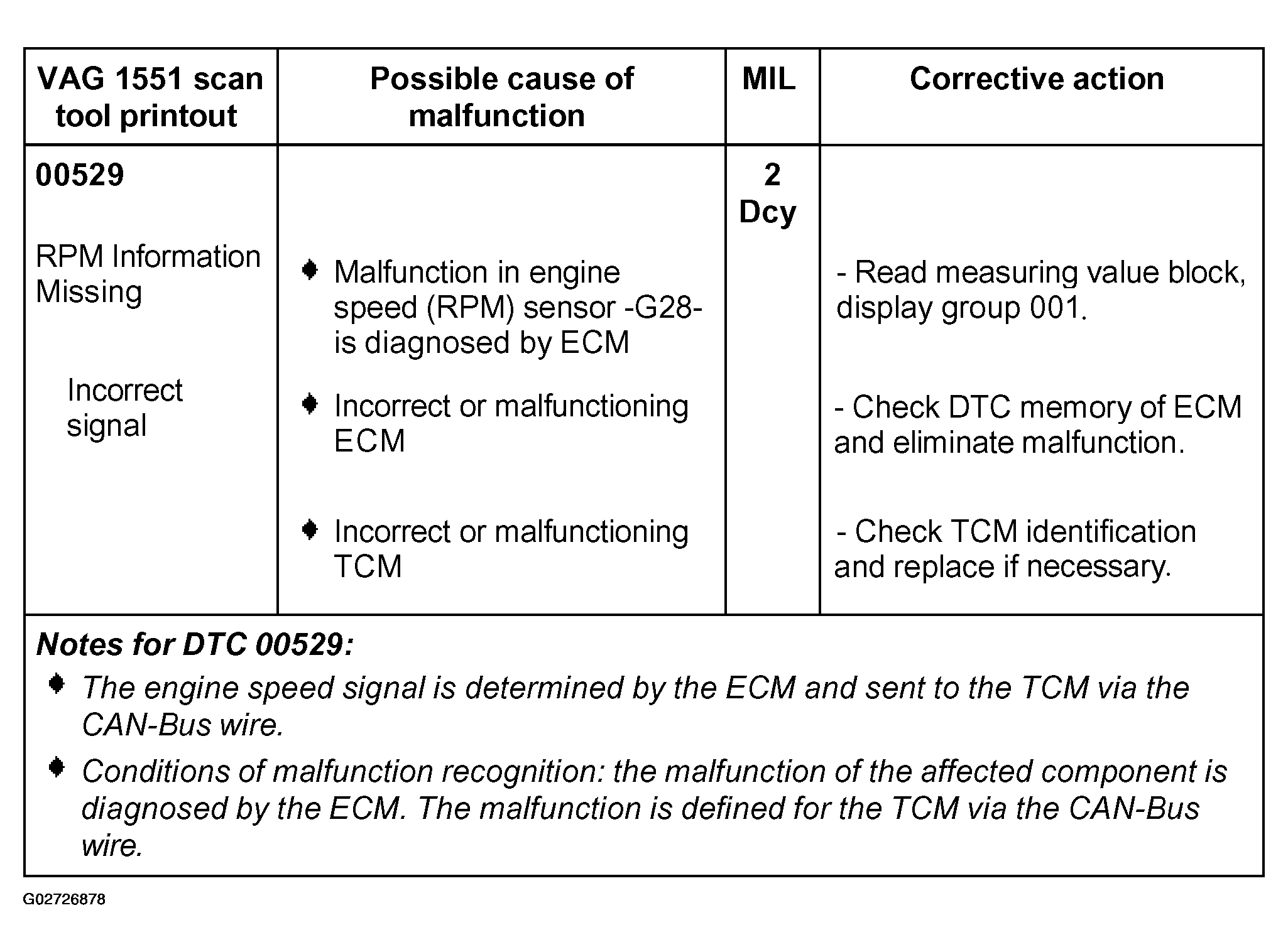

Fig 14: DTC 00529 Chart

For "Read Measuring Value Block", see MEASURING VALUE BLOCK, READING (FUNCTION 08) .
To check TCM identification, see ON BOARD DIAGNOSTIC (OBD II), CONDUCTING PROGRAM .

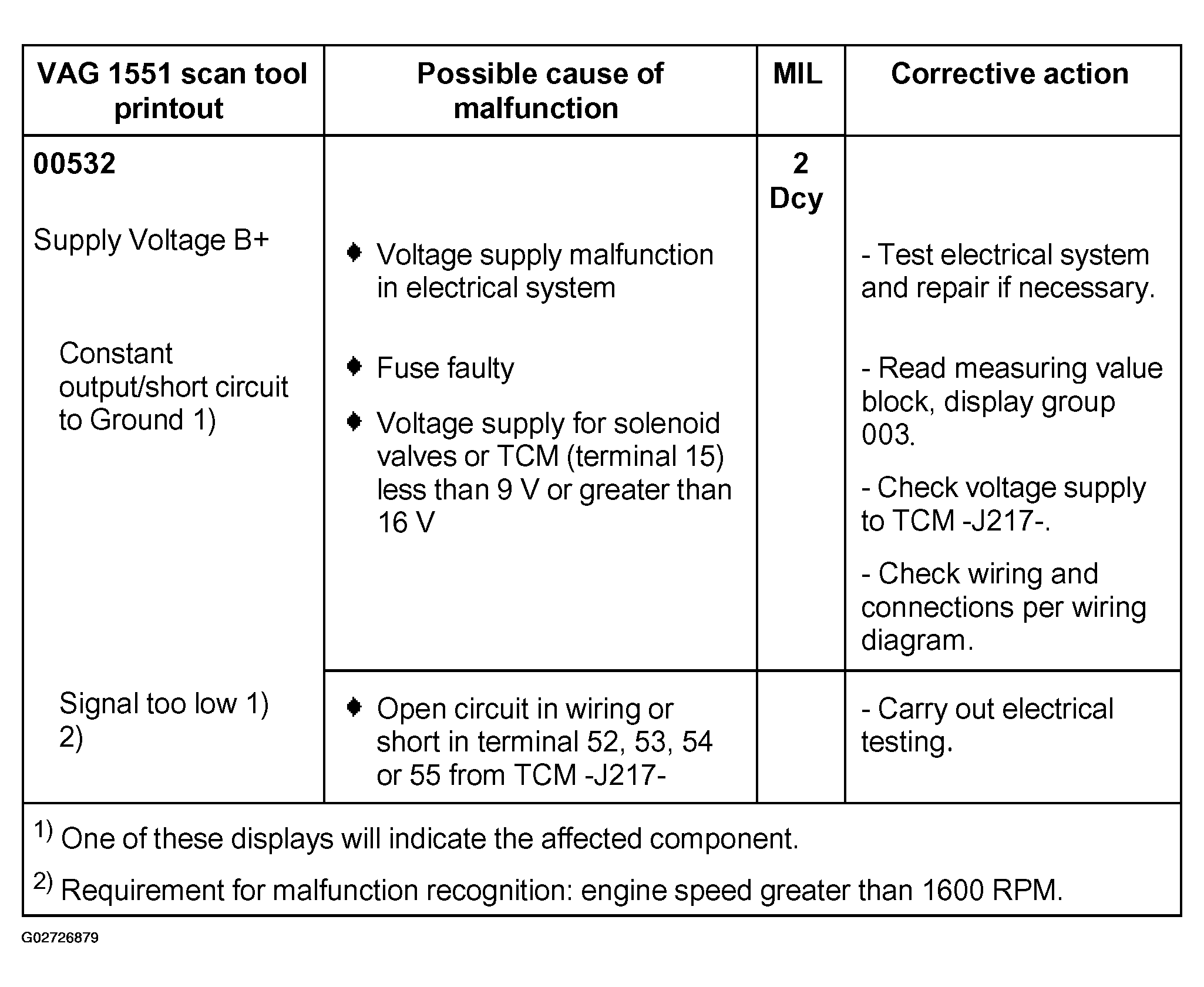

Fig 15: DTC 00532 Chart

For "Read Measuring Value Block", see MEASURING VALUE BLOCK, READING (FUNCTION 08) .
For electrical testing, see ELECTRICAL TESTING .

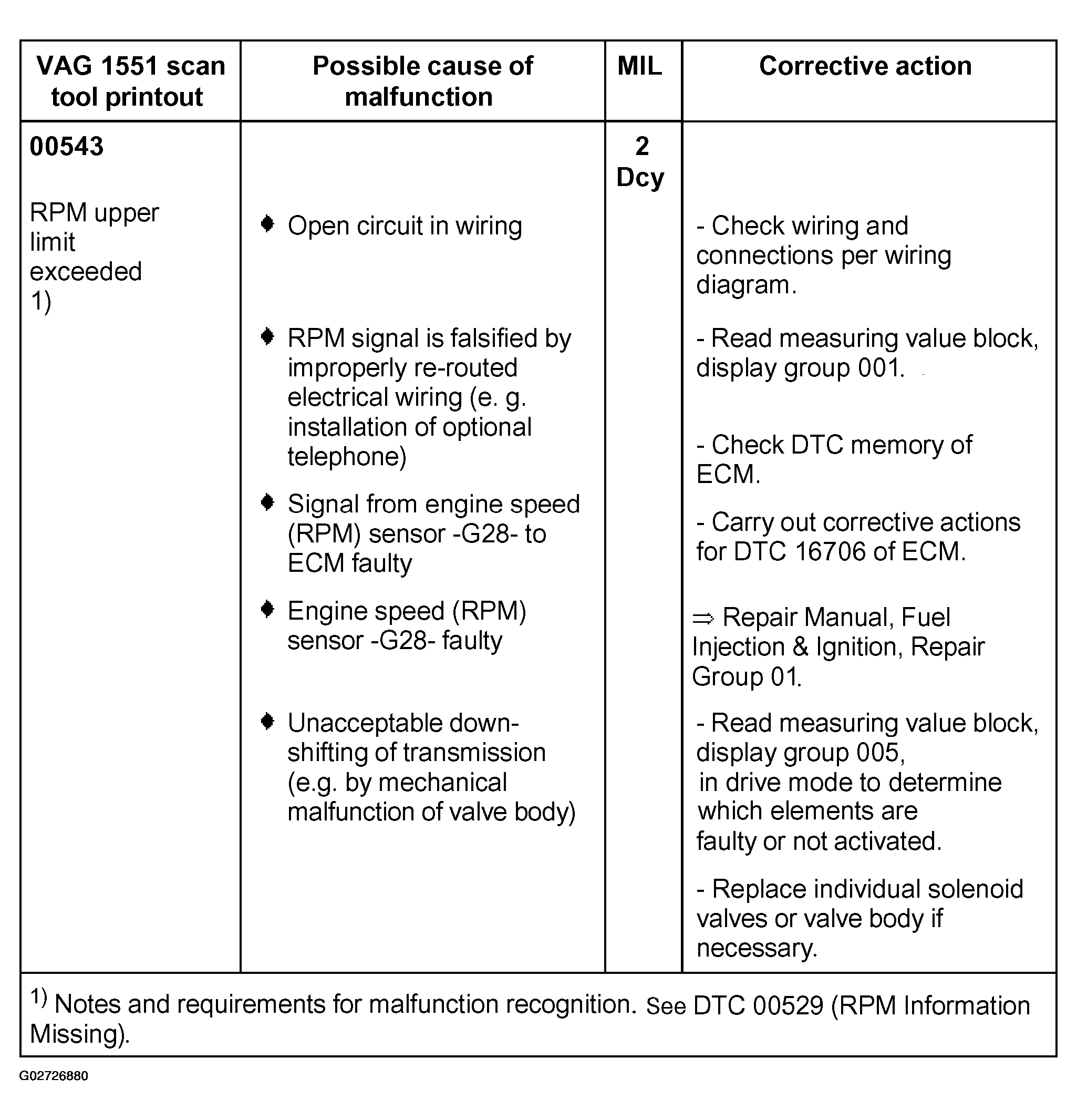

Fig 16: DTC 00543 Chart

For "Read Measuring Value Block", see MEASURING VALUE BLOCK, READING (FUNCTION 08) .
For more information regarding a malfunctioning ECM, see ON BOARD DIAGNOSTIC ( OBD) - 3.7L & 4.2L V8 (ABZ & AEW) .
To replace valve body, see VALVE BODY .

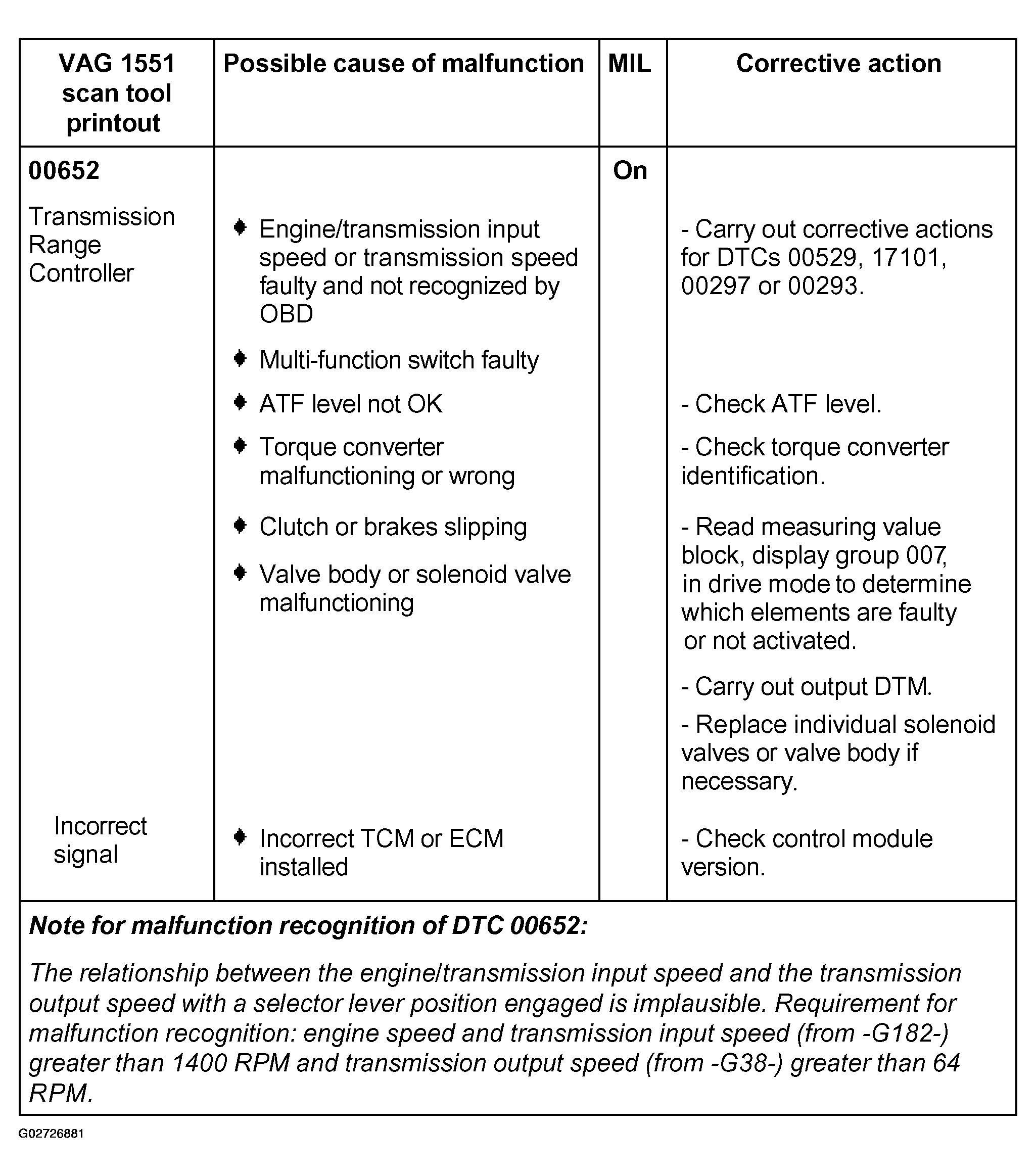

Fig 17: DTC 00652 Chart

For ATF levels, see CHECKING FLUID LEVELS .
For "Read Measuring Value Block", see MEASURING VALUE BLOCK, READING (FUNCTION 08) .
For output diagnostic test mode, see OUTPUT DIAGNOSTIC TEST MODE (DTM) (FUNCTION 03), CONDUCTING .
To replace valve body, see VALVE BODY .
To check TCM identification, see ON BOARD DIAGNOSTIC (OBD II), CONDUCTING PROGRAM .

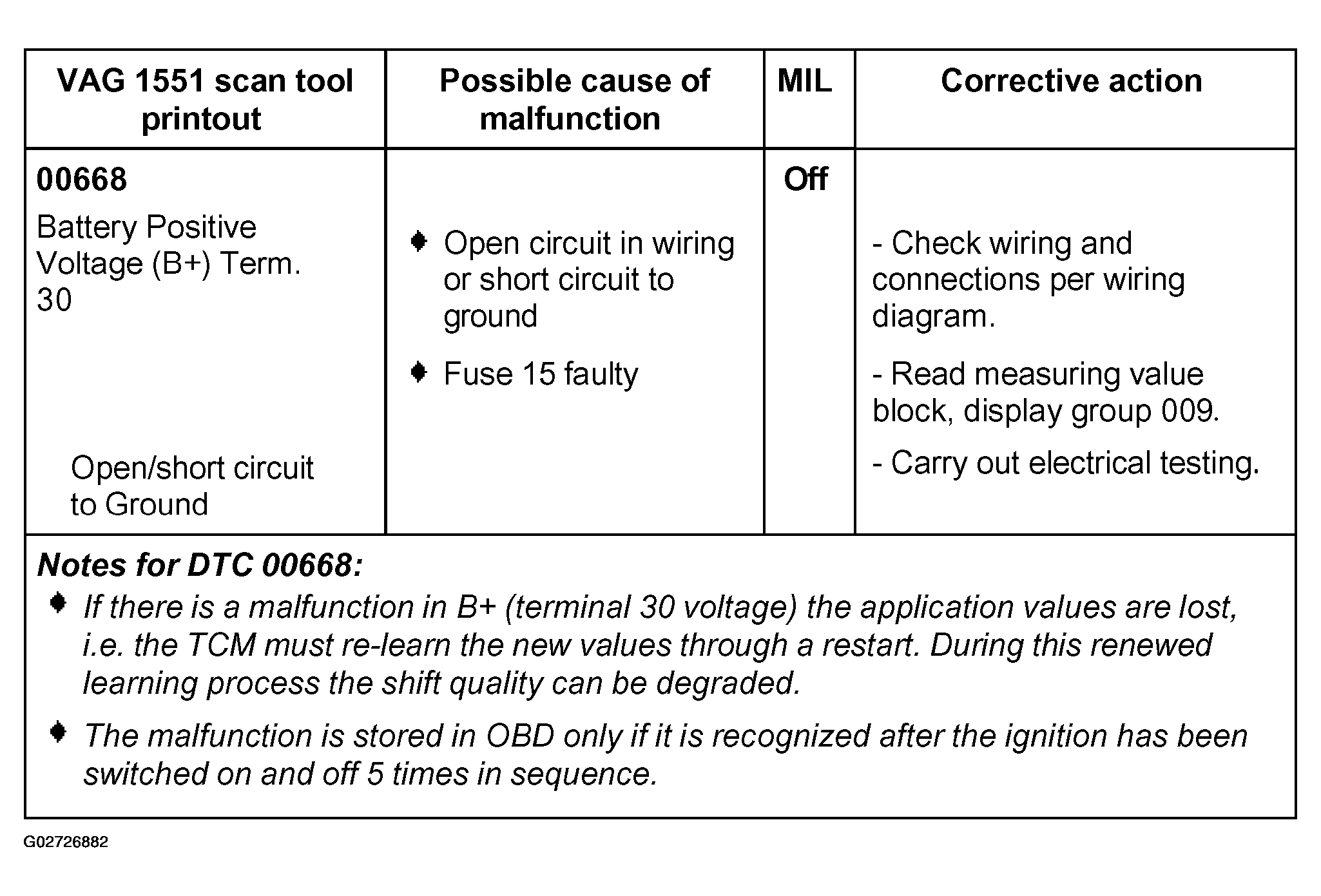

Fig 18: DTC 00668 Chart

For "Read Measuring Value Block", see MEASURING VALUE BLOCK, READING (FUNCTION 08) .
For electrical testing, see ELECTRICAL TESTING .

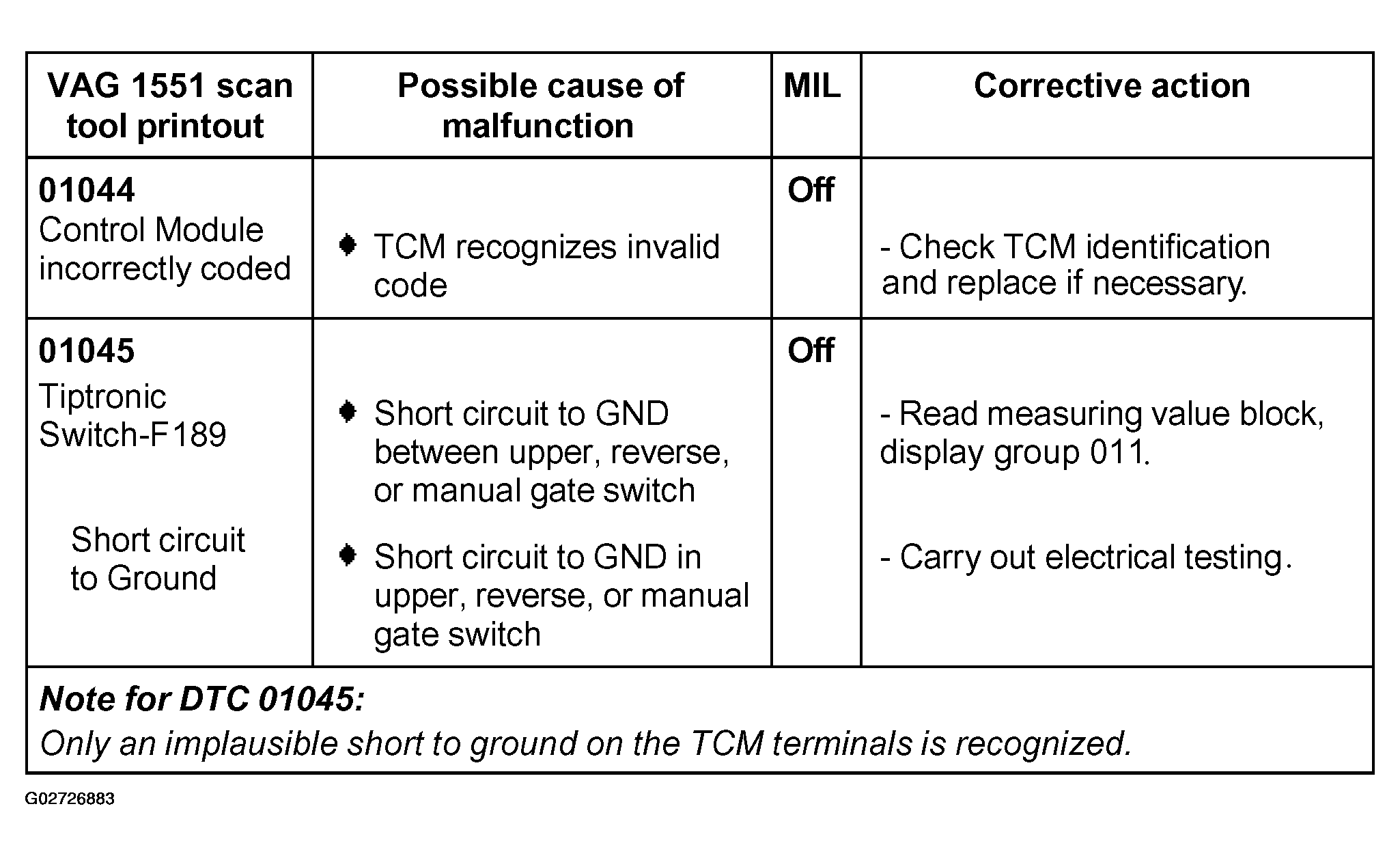

Fig 19: DTC 01044 And 01045 Chart

To check TCM identification, see ON BOARD DIAGNOSTIC (OBD II), CONDUCTING PROGRAM .
For "Read Measuring Value Block", see MEASURING VALUE BLOCK, READING (FUNCTION 08) .
For electrical testing, see ELECTRICAL TESTING .

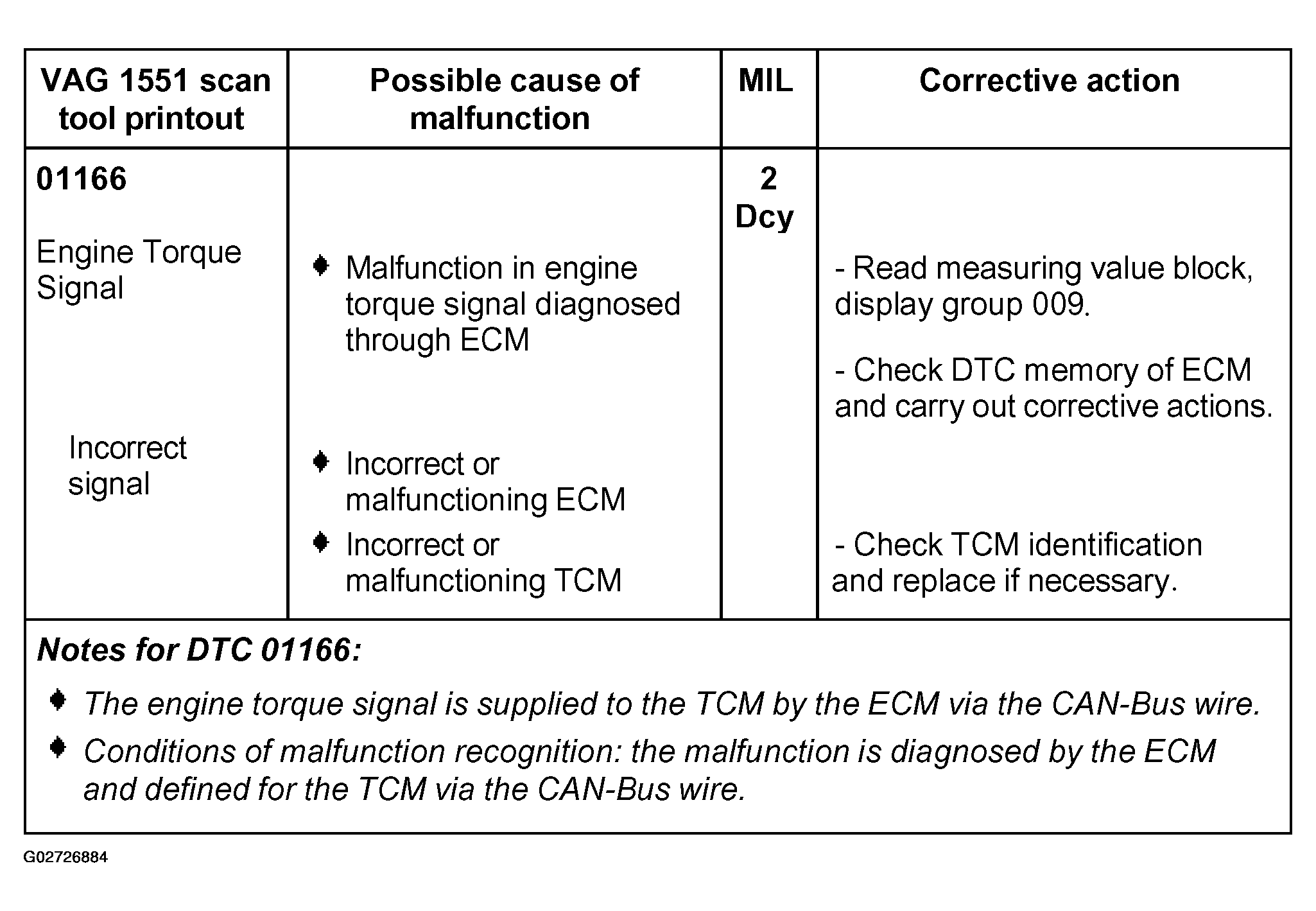

Fig 20: DTC 01166 Chart

For "Read Measuring Value Block", see MEASURING VALUE BLOCK, READING (FUNCTION 08) .
To check TCM identification, see ON BOARD DIAGNOSTIC (OBD II), CONDUCTING PROGRAM .
To replace TCM, see REMOVING AND INSTALLING TCM -J217- .

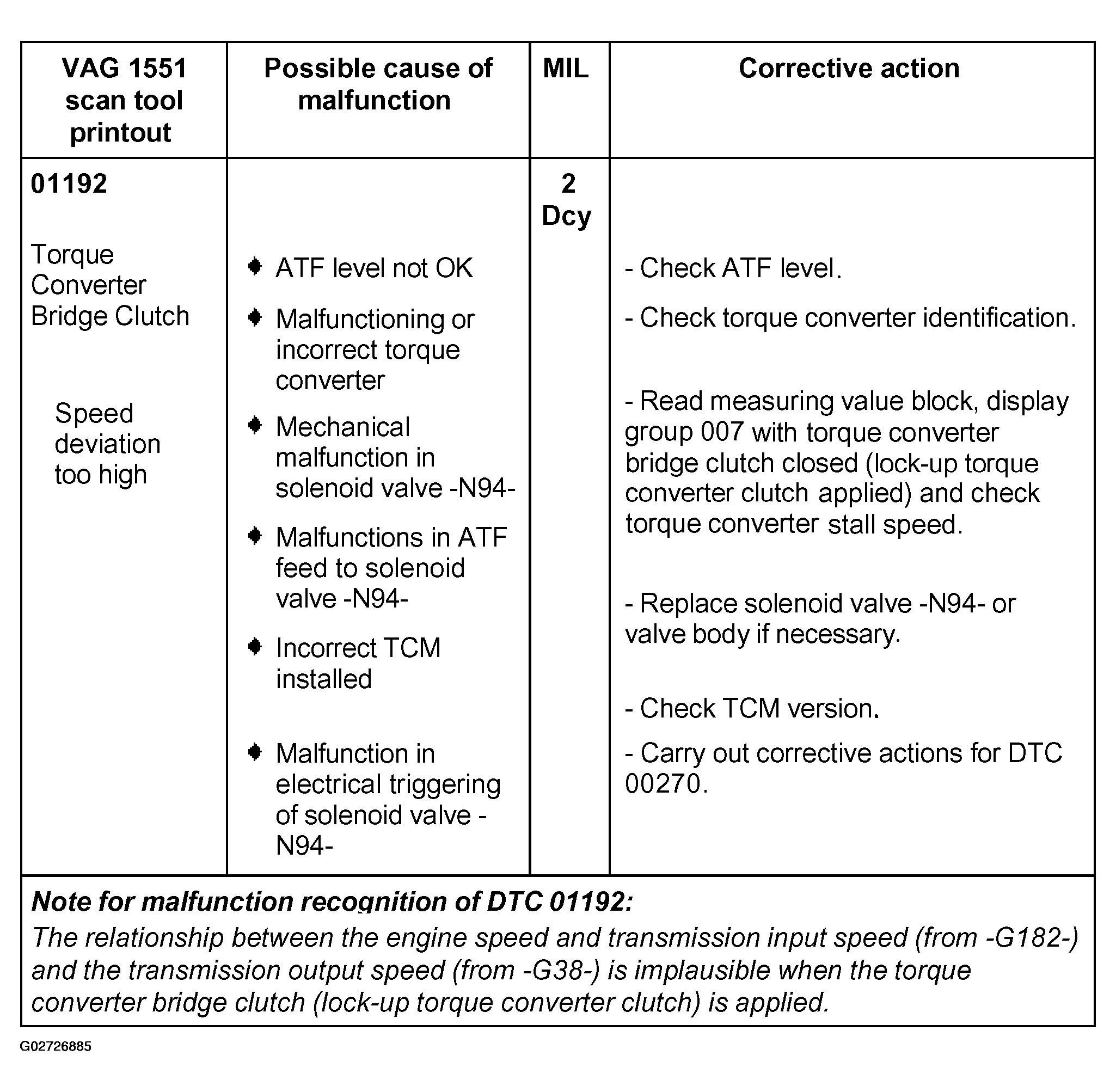

Fig 21: DTC 01192 Chart

For ATF levels, see CHECKING FLUID LEVELS .
For "Read Measuring Value Block", see MEASURING VALUE BLOCK, READING (FUNCTION 08) .
To replace valve body, see VALVE BODY .
To check TCM identification, see ON BOARD DIAGNOSTIC (OBD II), CONDUCTING PROGRAM .

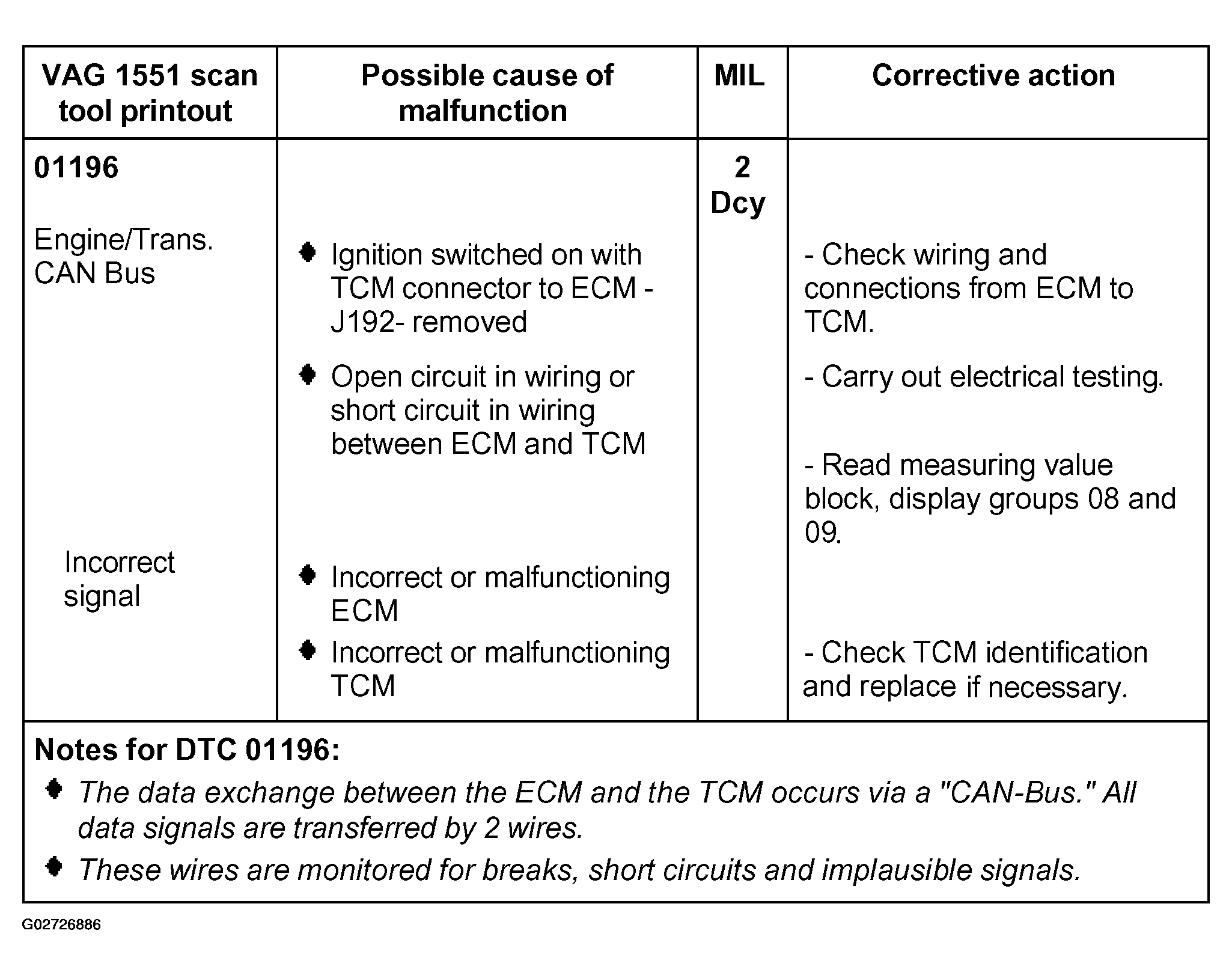

Fig 22: DTC 01196 Chart

For electrical testing, see ELECTRICAL TESTING .
For "Read Measuring Value Block", see MEASURING VALUE BLOCK, READING (FUNCTION 08) .
To check TCM identification, see ON BOARD DIAGNOSTIC (OBD II), CONDUCTING PROGRAM .
To replace TCM, see REMOVING AND INSTALLING TCM -J217- .

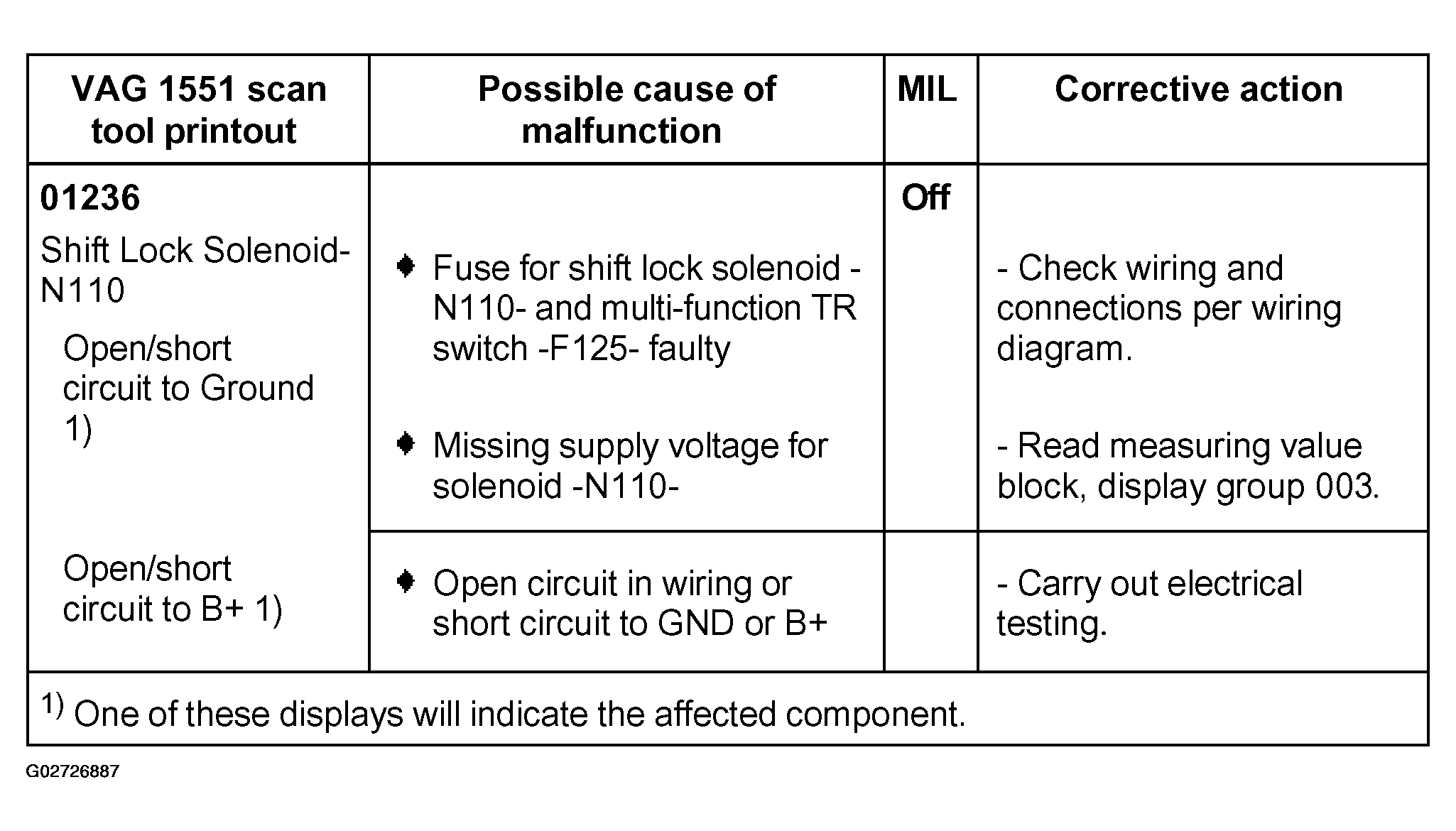

Fig 23: DTC 01236 Chart

For "Read Measuring Value Block", see MEASURING VALUE BLOCK, READING (FUNCTION 08) .
For electrical testing, see ELECTRICAL TESTING .
For ATF levels, see CHECKING FLUID LEVELS .

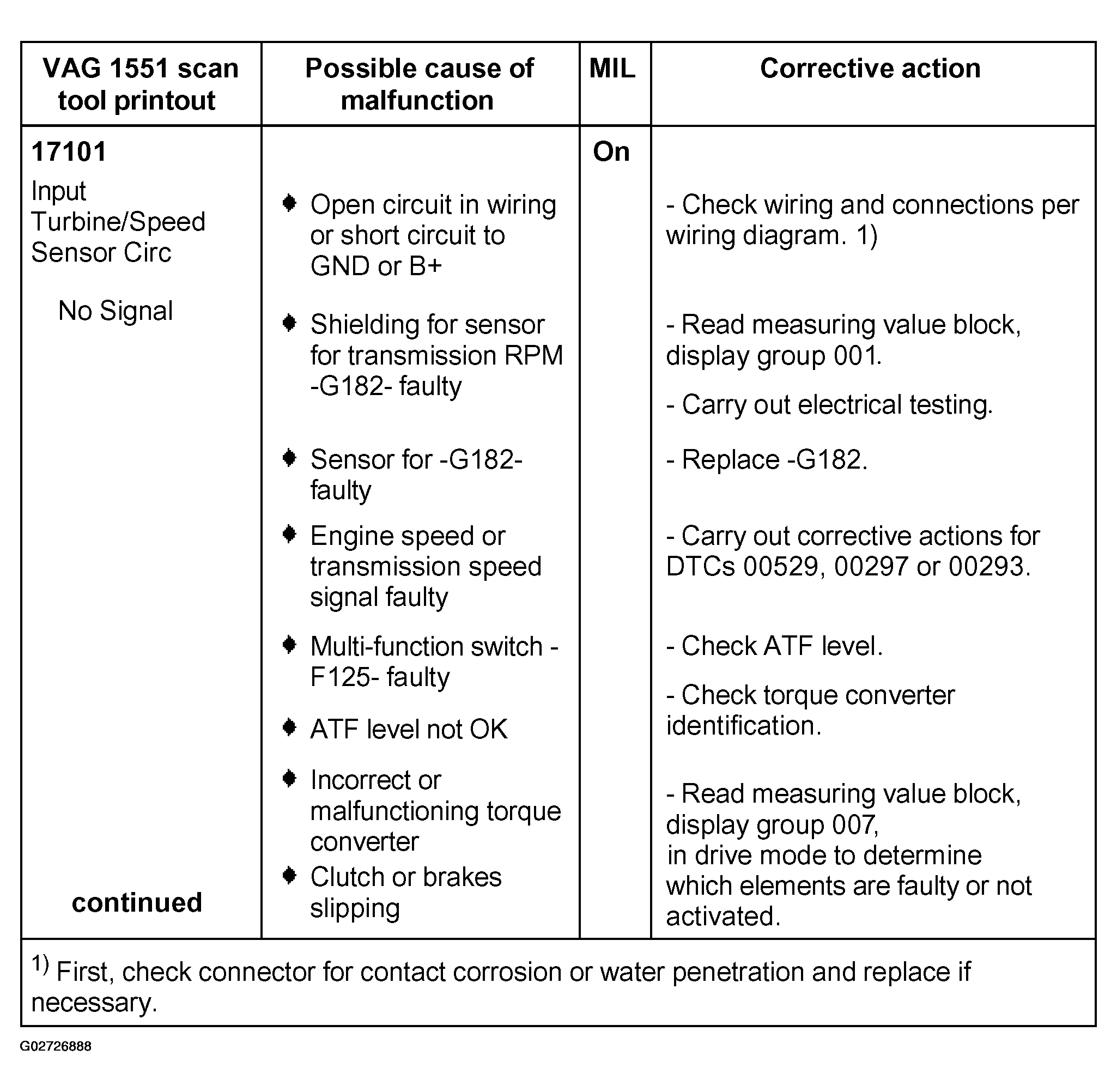

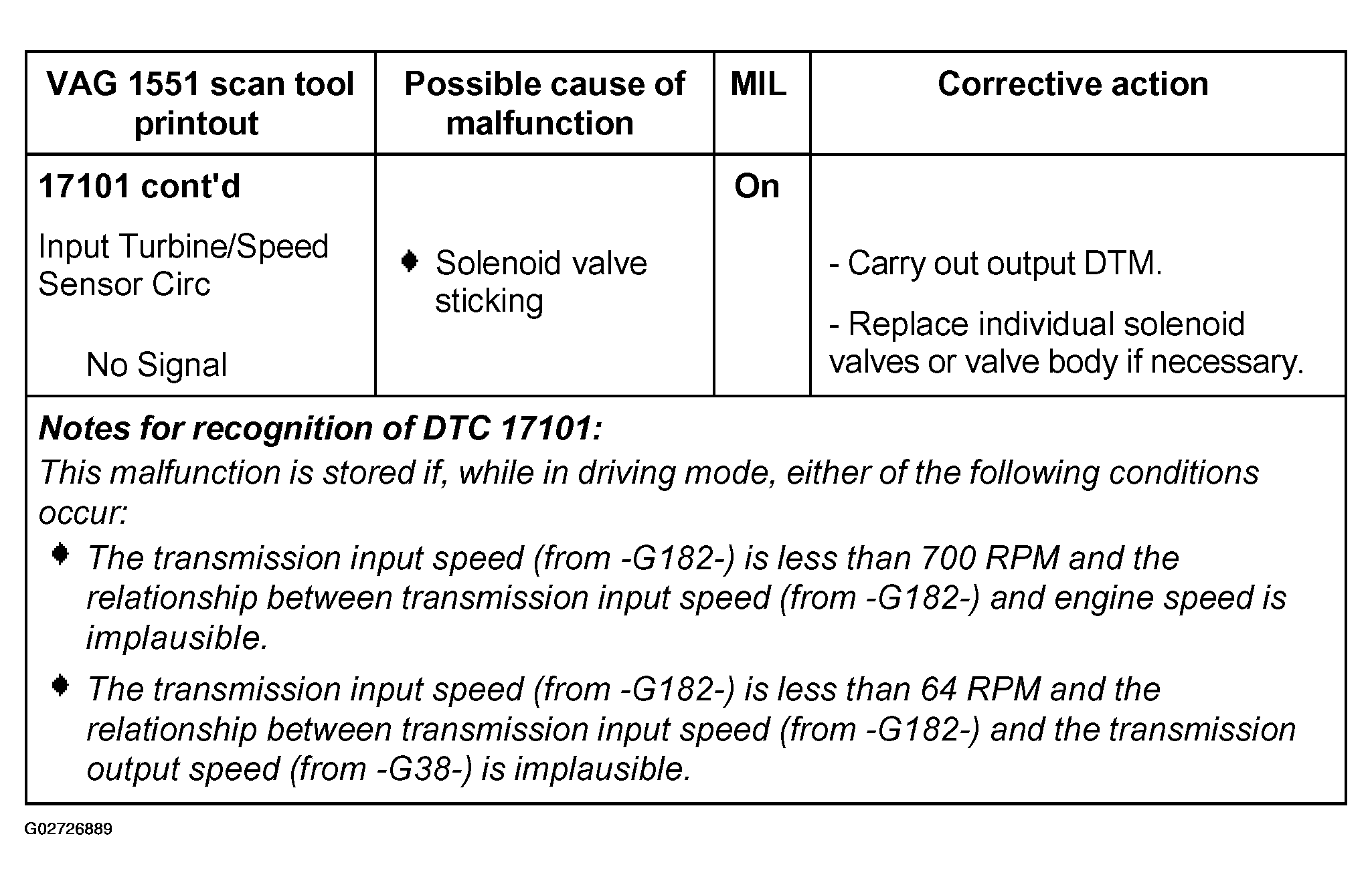

Fig 24: DTC 17101 Chart (1 Of 2)

Fig 25: DTC 17101 Chart (2 Of 2)

For "Read Measuring Value Block", see MEASURING VALUE BLOCK, READING (FUNCTION 08) .
For electrical testing, see ELECTRICAL TESTING .
To replace transmission RPM sensor G182, see TRANSAXLE RPM SENSOR .
For ATF levels, see CHECKING FLUID LEVELS .
To replace valve body, see VALVE BODY .

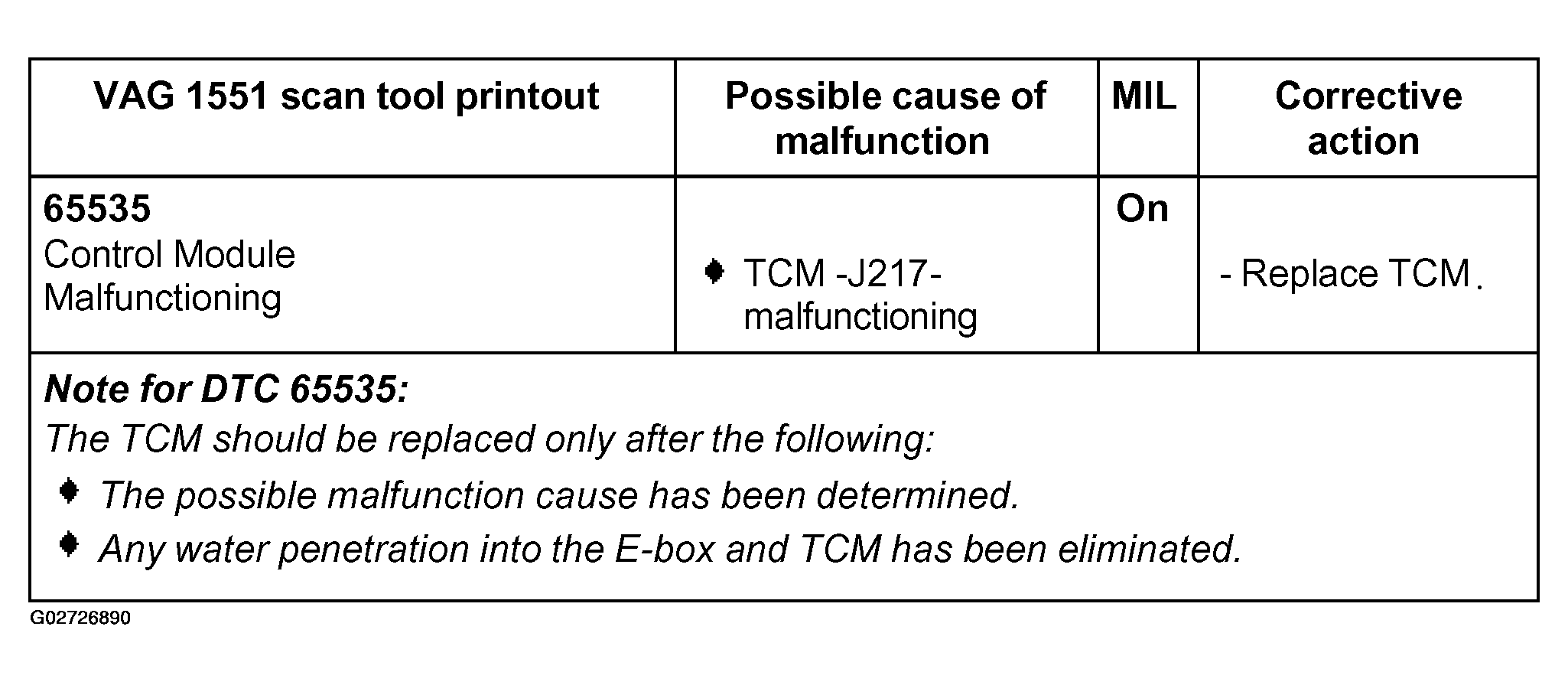

Fig 26: DTC 65535 Chart

To replace TCM, see REMOVING AND INSTALLING TCM -J217- .
