Measuring value block, reading (function 08)
WARNING: This page is about a different variant/trim than selected.
- Connect VAG 1551, insert "Transmission Electronics" address word 02 and advance through program sequence until "Select function XX" is indicated in display. See ON BOARD DIAGNOSTIC (OBD II), CONDUCTING PROGRAM .
Indicated on display
- Press buttons -0- and -8- to select "Read Measuring Value Block" function 08.

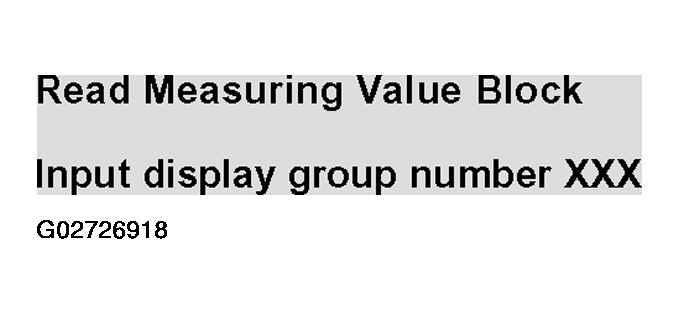

Indicated on display
- Press -Q- button to confirm input.
Indicated on display
- Input display group number. See AVAILABLE DISPLAY GROUP NUMBERS .
- Press -Q- button to confirm input.
4 display fields always appear in the measuring value block (in physical values where necessary). For specifications for values in individual display fields, see MEASURING VALUE BLOCK TABLE .
AVAILABLE DISPLAY GROUP NUMBERS (1 OF 2)
| Display group | Display field | Designation |
|---|---|---|
| 001 | 1 | Engine speed (RPM) |
| 001 | 2 | Sensor for transmission RPM (input speed) -G182- |
| 001 | 3 | Transmission Vehicle Speed Sensor (VSS) -G38- |
| 001 | 4 | Transmission Range (TR) engaged |
| 002 | 1 | Dynamic shift program index |
| 002 | 2 | Throttle Position (TP) value |
| 002 | 3 | Transmission VSS -G38- |
| 002 | 4 | TR engaged |
| 003 | 1 | Brake light switch |
| 003 | 2 | Shift lock activation |
| 003 | 3 | Vehicle speed |
| 003 | 4 | Voltage supply |
| 004 | 1 | ATF temperature |
| 004 | 2 | Selector lever position |
| 004 | 3 | Multi-function TR switch -F125- position |
| 004 | 4 | On Board Diagnostic information |
AVAILABLE DISPLAY GROUP NUMBERS (2 OF 2)
| Display group | Display field | Designation |
|---|---|---|
| 005 | 1 | Solenoid valve 1 -N88- |
| 005 | 2 | Solenoid valve 2 -N89- |
| 005 | 3 | Solenoid valve 3 -N90- |
| 005 | 4 | Transmission Range (TR) engaged |
| 006 | 1 | Specified current of solenoid valve 4 -N91- |
| 006 | 2 | Specified current of solenoid valve 5 -N92- |
| 006 | 3 | Specified current of solenoid valve 6 -N93- |
| 006 | 4 | TR engaged |
| 007 | 1 | ATF temperature |
| 007 | 2 | Specified current of solenoid valve 7 -N94- |
| 007 | 3 | Torque converter |
| 007 | 4 | Torque converter stall speed |
| 008 | 1 | Kickdown switch |
| 008 | 2 | Throttle Position (TP) value |
| 008 | 3 | Engine torque |
| 008 | 4 | Deceleration/acceleration mode |
| 009 | 1 | Engine torque |
| 009 | 2 | Maximum torque |
| 009 | 3 | Engine speed (RPM) |
| 009 | 4 | Throttle Position (TP) value |
| 010 | 1 | Torque increase in torque converter |
| 010 | 2 | Engine speed (RPM) |
| 010 | 3 | Transmission Range (TR) engaged |
| 010 | 4 | Traction control (ASR) activation |
| 011 | 1 | Selector lever position |
| 011 | 2 | Tiptronic switch -F189- (recognition) |
| 011 | 3 | Tiptronic switch -F189- |
| 011 | 4 | A/C kickdown activation |
NOTE:
If the printer is switched on, the actual display is printed out on the paper strip.
If the specified values are attained in all display fields:
- Press --> button.
Indicated on display
