Removal And Installation

WARNING: This page is about a different variant/trim than selected.

REMOVAL

Remove the transmission. Refer to REMOVAL AND INSTALLATION or REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

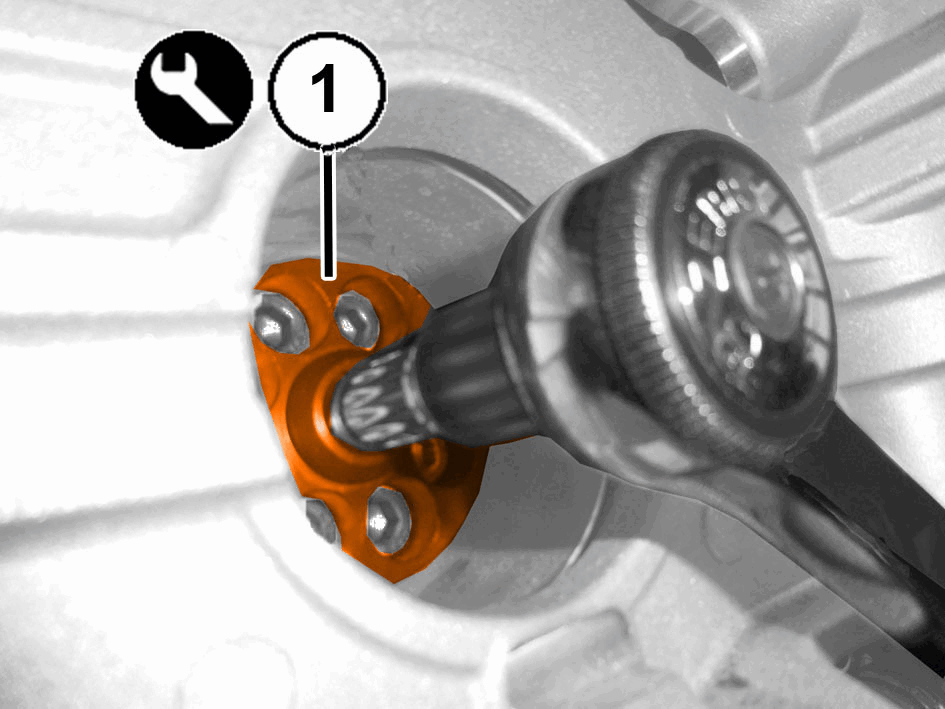

Position the (special tool #2024200090, Damper, Rotating Tool) tool (1) on the vibration damper.

Courtesy of CHRYSLER GROUP, LLC

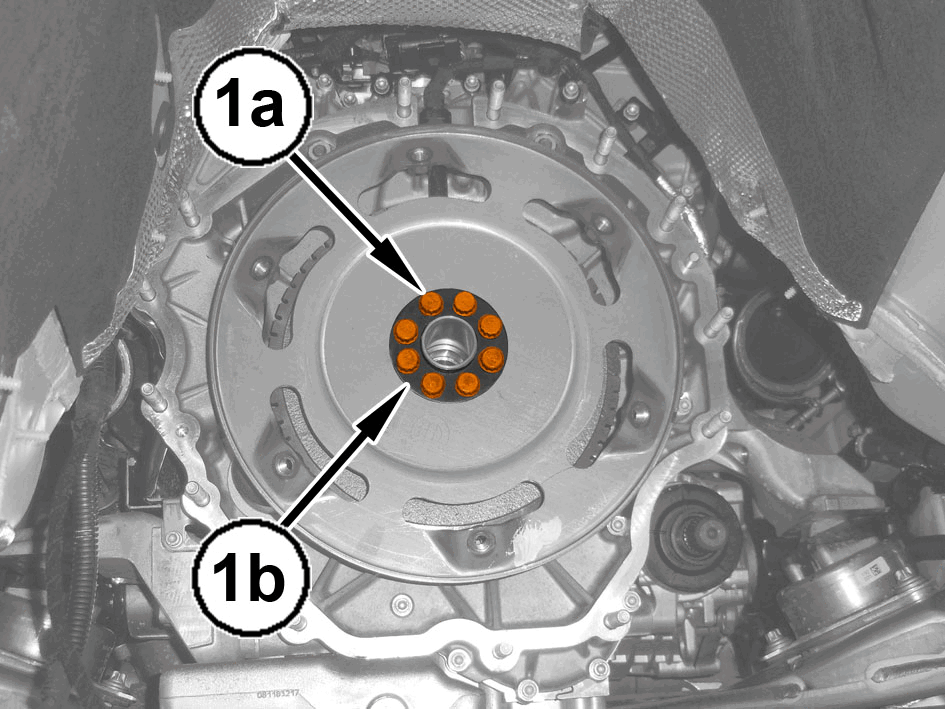

Remove the bolts (1a) and the spacer (1b).

Courtesy of CHRYSLER GROUP, LLC

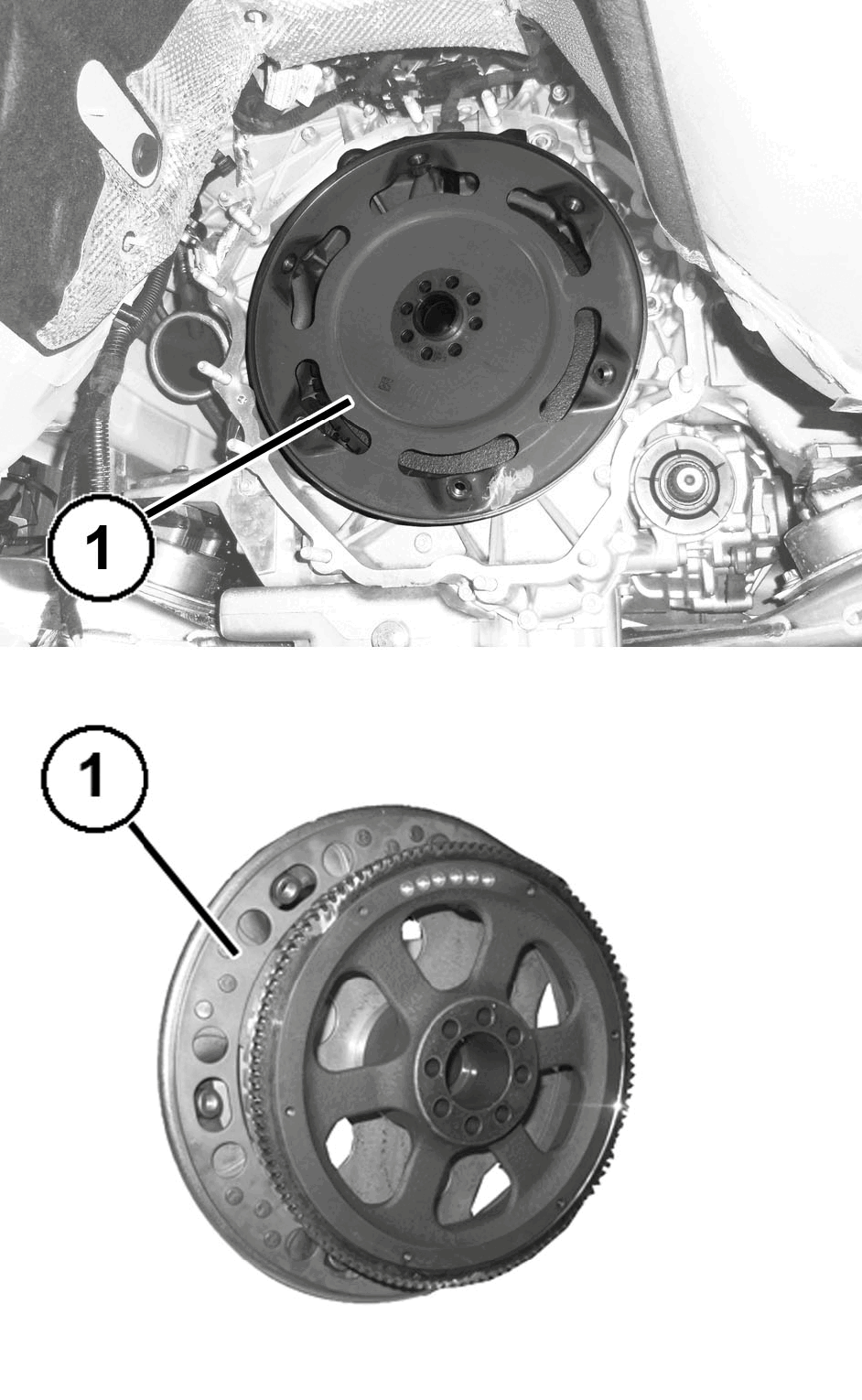

1. Remove the engine flexplate (1).

INSTALLATION

Thoroughly clean the flexplate seat and the threaded holes on the engine crankshaft.

Courtesy of CHRYSLER GROUP, LLC
Install the engine flexplate (1) in position.

Courtesy of CHRYSLER GROUP, LLC

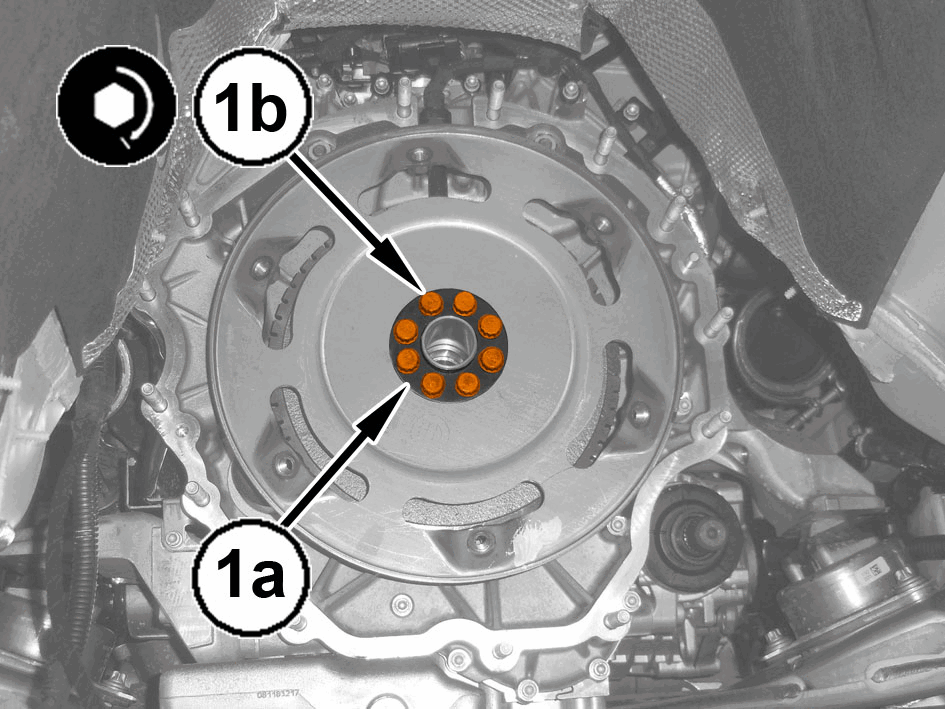

Install the spacer (1a) in position and tighten the bolts (1b) to the proper using the (special tool #2024200090, Damper, Rotating Tool) tool on the vibration damper. Refer to TORQUE SPECIFICATIONS .
Install the transmission. Refer to REMOVAL AND INSTALLATION or REMOVAL AND INSTALLATION .
