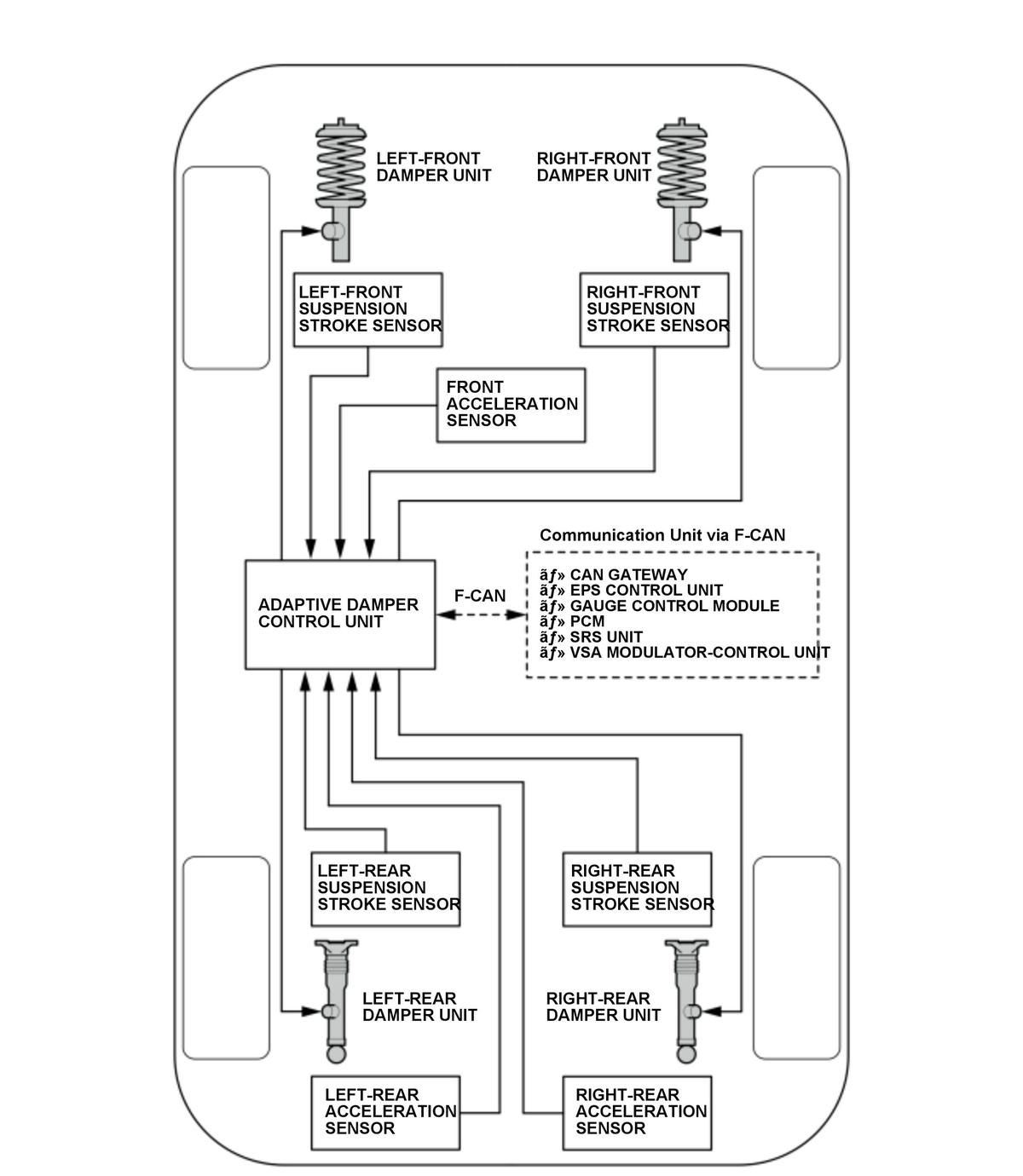

Adaptive Damper System Description - System Diagram
The adaptive damper system controller uses information from the PCM, VSA modulator-control unit, EPS control unit, and SRS unit.When a malfunction is detected, the multi-information display will show a warning to inform the driver about the malfunction in the system.
For locations of each component on vehicle, refer to Component Location Index:
- Adaptive damper control unit, Adaptive damper unit, Acceleration sensor, Suspension stroke sensor
- CAN gateway
- EPS control unit
- Gauge control module
- PCM - Refer to: Fuel and Emissions Systems Component Location Index(Mexico models) or Fuel and Emissions Systems Component Location Index(Mexico models)
- SRS unit
- VSA modulator-control unit
F-CAN Communication Data
Adaptive Damper Control Unit Receiving Signal
| Transmitting Unit | Signal Name |
|---|---|
| CAN gateway |
|
| EPS control unit |
|
| PCM |
|
| Transmitting Unit | Signal Name |
|---|---|
| SRS unit |
|
| VSA modulator-control unit |
|
Adaptive Damper Control Unit Transmitting Signal
| Transmitting Unit | Signal Name |
|---|---|
| Adaptive damper control unit |
|
