Home >> Acura >> 2021 >> TLX Base >> Repair and Diagnosis >> Electrical >> Gauges >> Gauges - Testing & Troubleshooting >> Component Location Index >> Gauges Component Location Index

Gauges Component Location Index

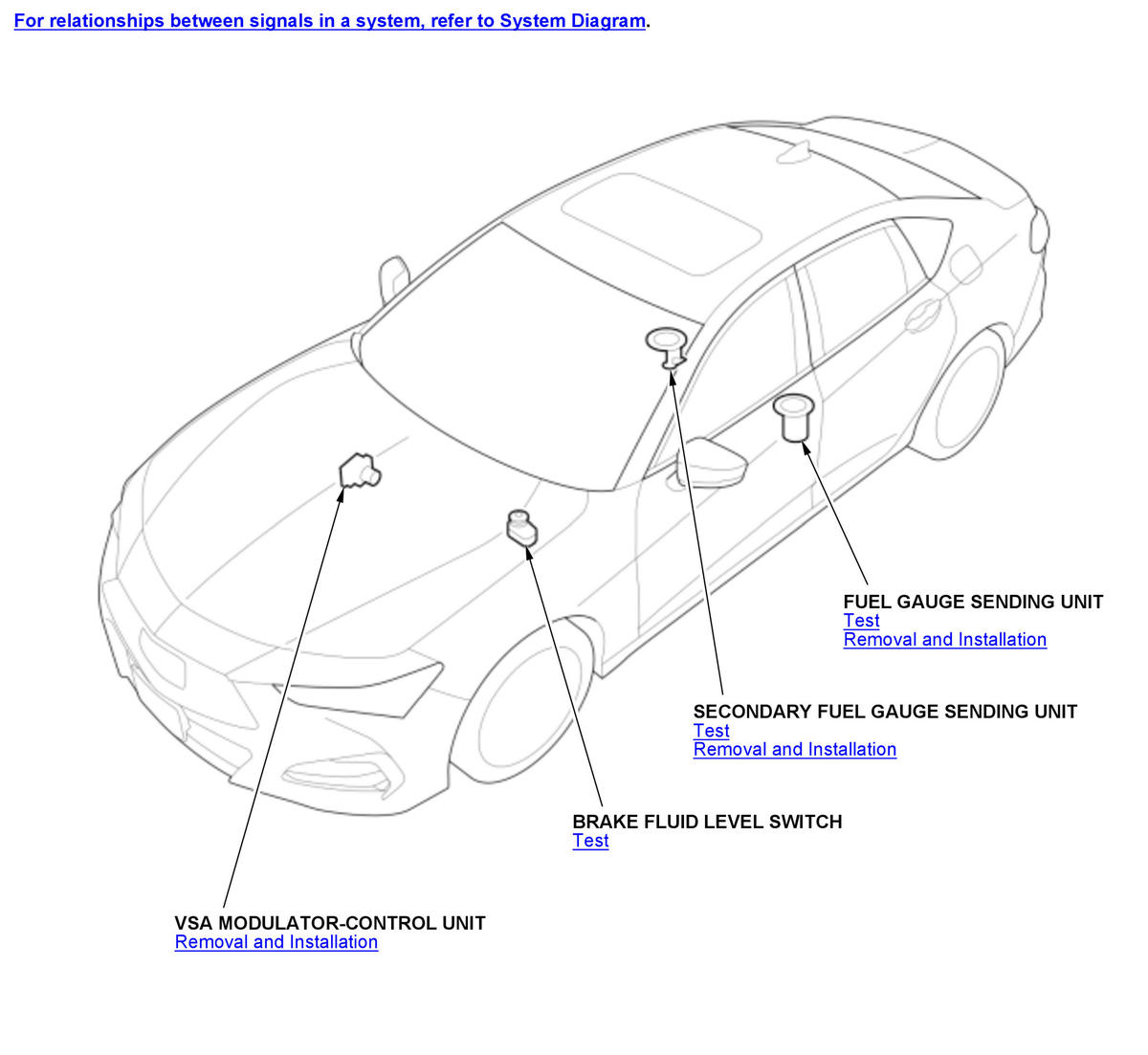

GHH561758Courtesy of HONDA, U.S.A., INC.

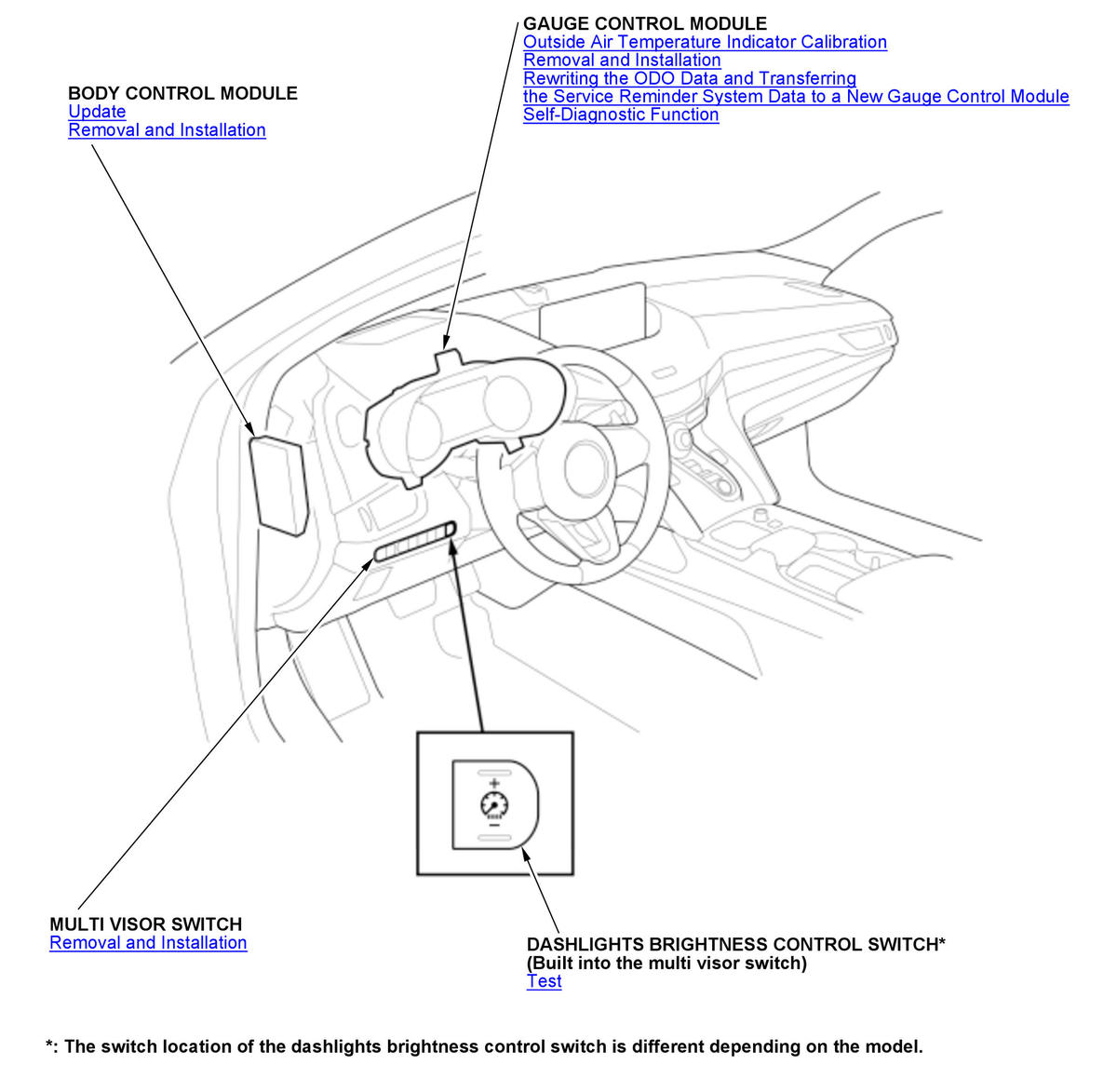

GHH561759Courtesy of HONDA, U.S.A., INC.

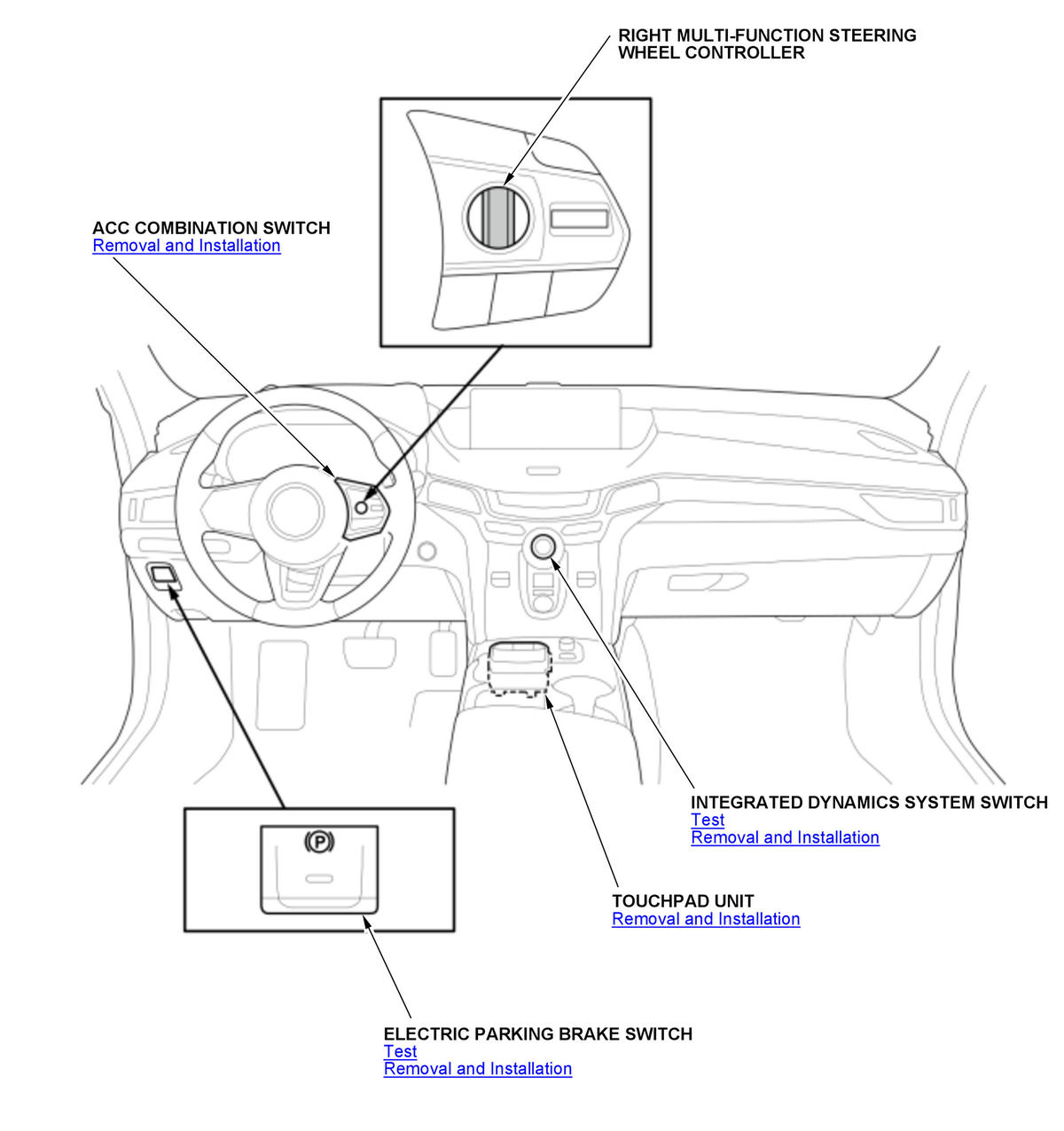

GHH561760Courtesy of HONDA, U.S.A., INC.

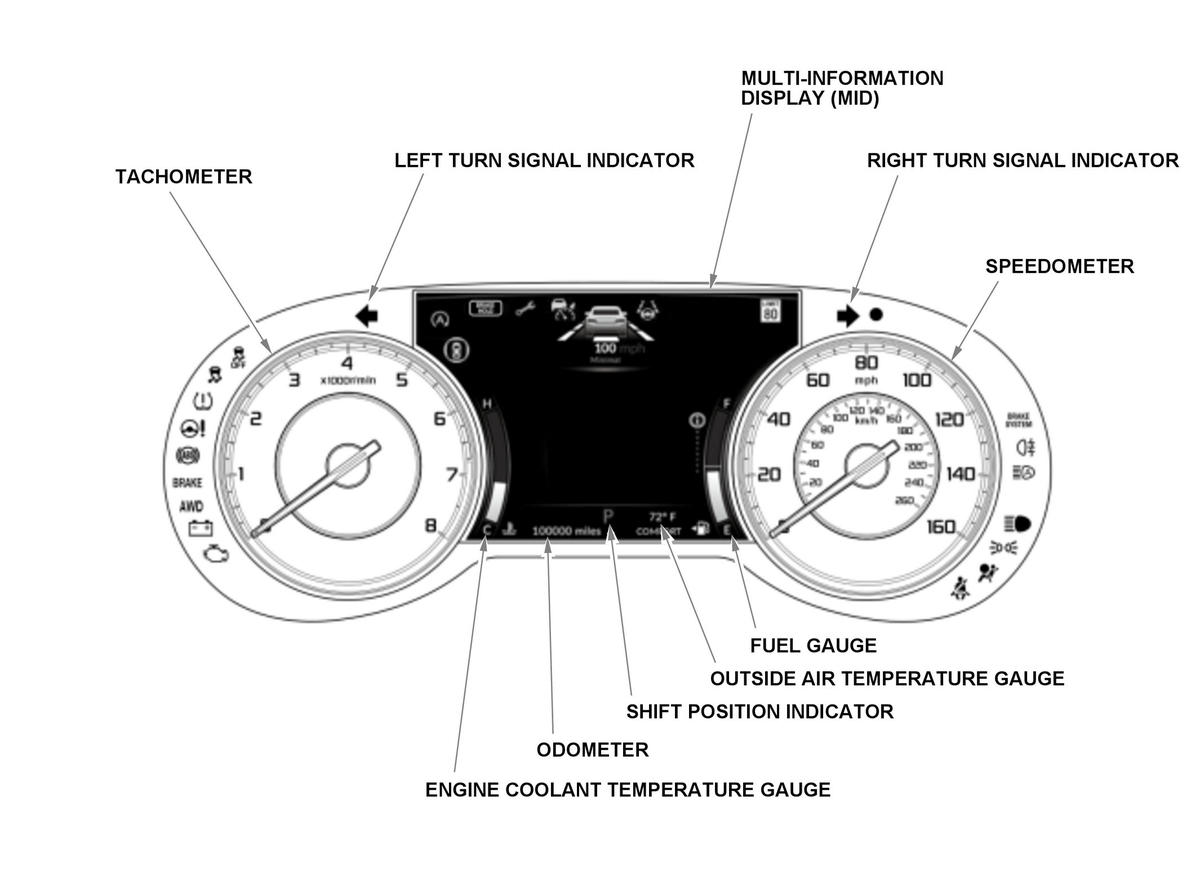

GHH561761Courtesy of HONDA, U.S.A., INC.

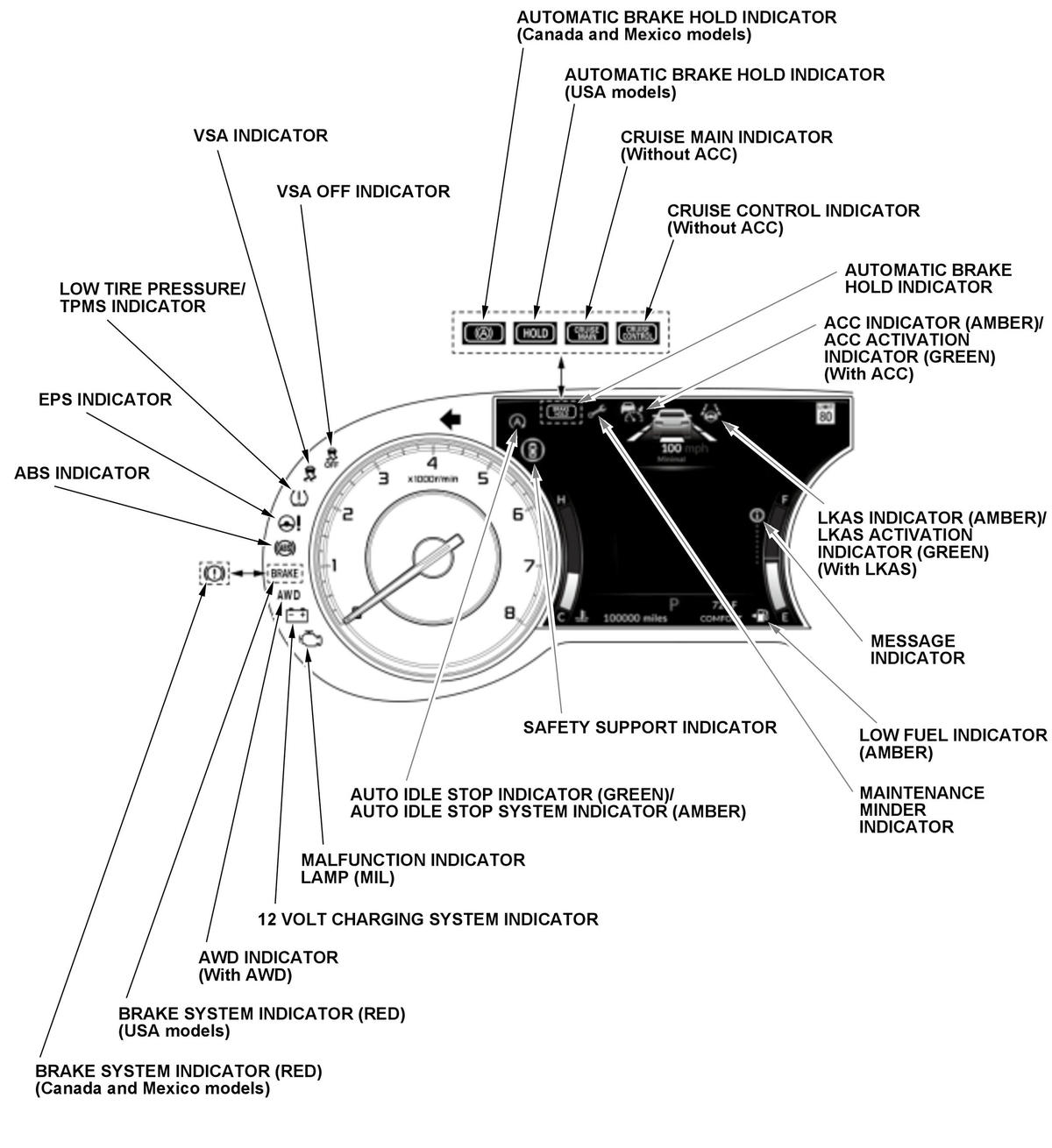

GHH561762Courtesy of HONDA, U.S.A., INC.

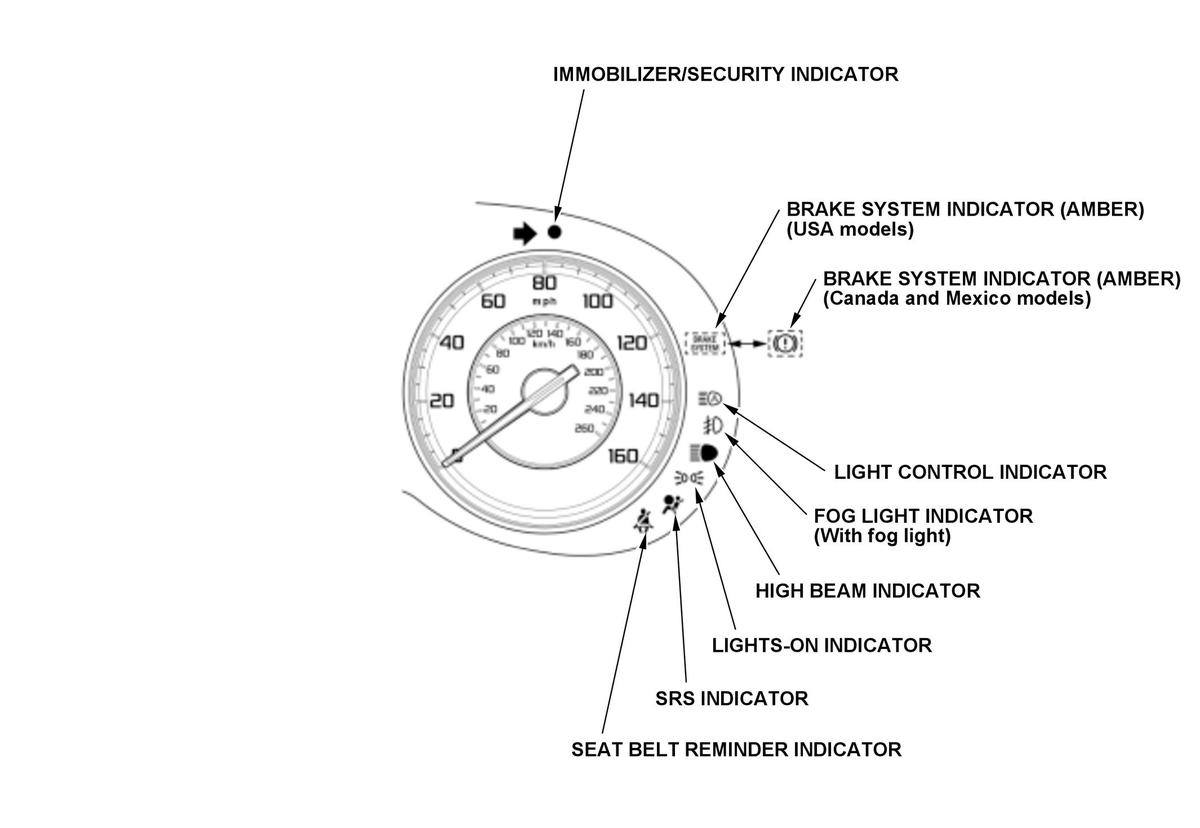

GHH561763Courtesy of HONDA, U.S.A., INC.
