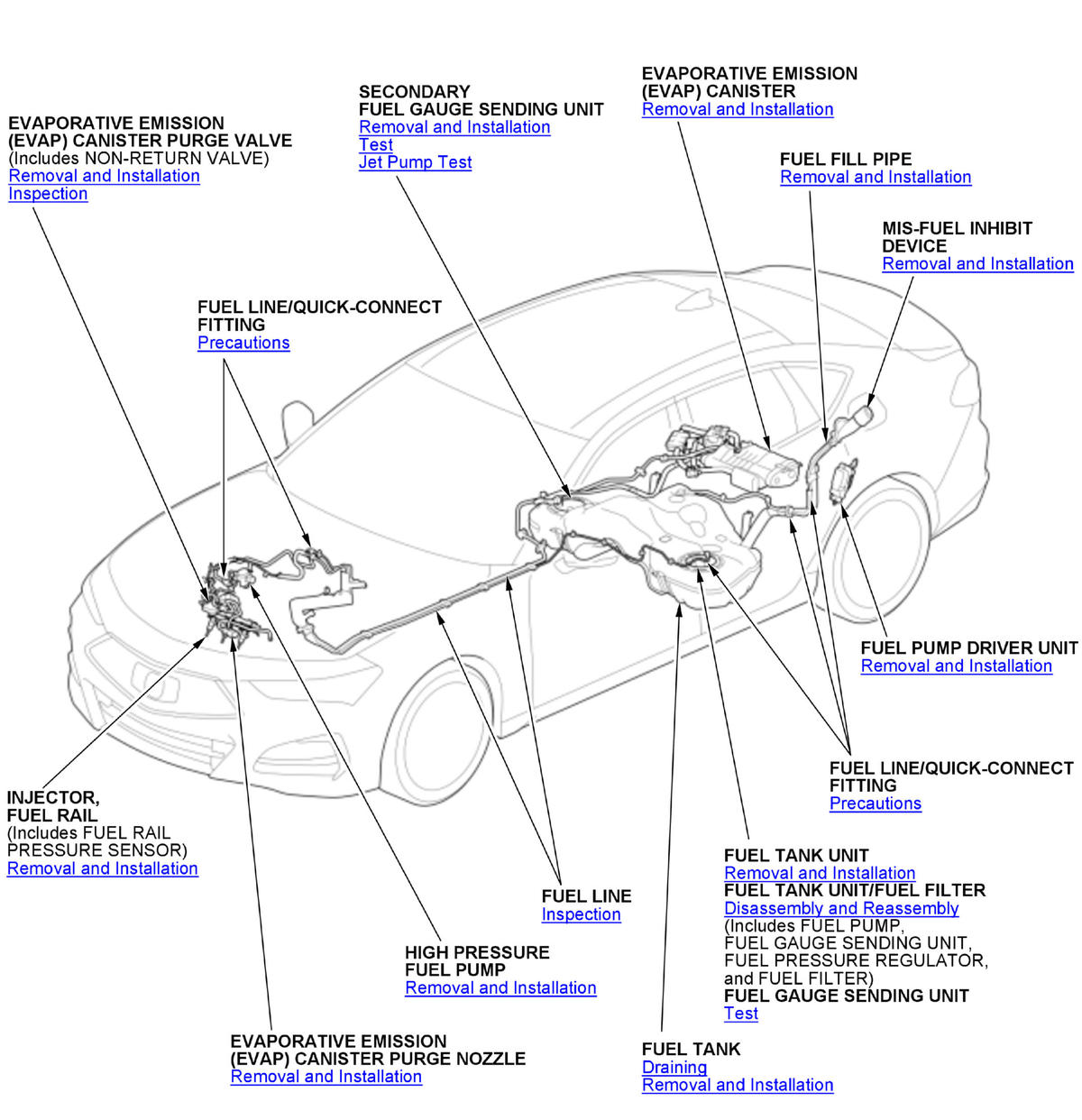

Fuel and Emissions Systems Component Location Index (USA/Canada models)

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

USA and Canada Models

Courtesy of HONDA, U.S.A., INC.

USA and Canada Models

Courtesy of HONDA, U.S.A., INC.

Mexico Models

Courtesy of HONDA, U.S.A., INC.

Mexico Models

Courtesy of HONDA, U.S.A., INC.
