Rear Differential System Description - SH-AWD? System
Rear Differential System Description - SH-AWD® System
SH-AWD System
Outline
This vehicle is equipped with a Super Handling All-Wheel Drive ® (SH-AWD ®) rear differential system. This system uses multiple wet disc clutches and the SH-AWD control unit to control front to rear torque distribution and independent left to right rear torque distribution. The rear differential solenoid valves and the oil pump driven by the rear differential pump motor are built into the SH-AWD hydraulic circuit. It achieves a wide range of torque control, response improvement, downsizing, and weight reduction.
SH-AWD features include:
- Independent torque distribution to the front and rear wheels, and to the left and right wheels for neutral handling when cornering.
- Controls differential (inside/outside) wheel speed in a turn to increase cornering stability.

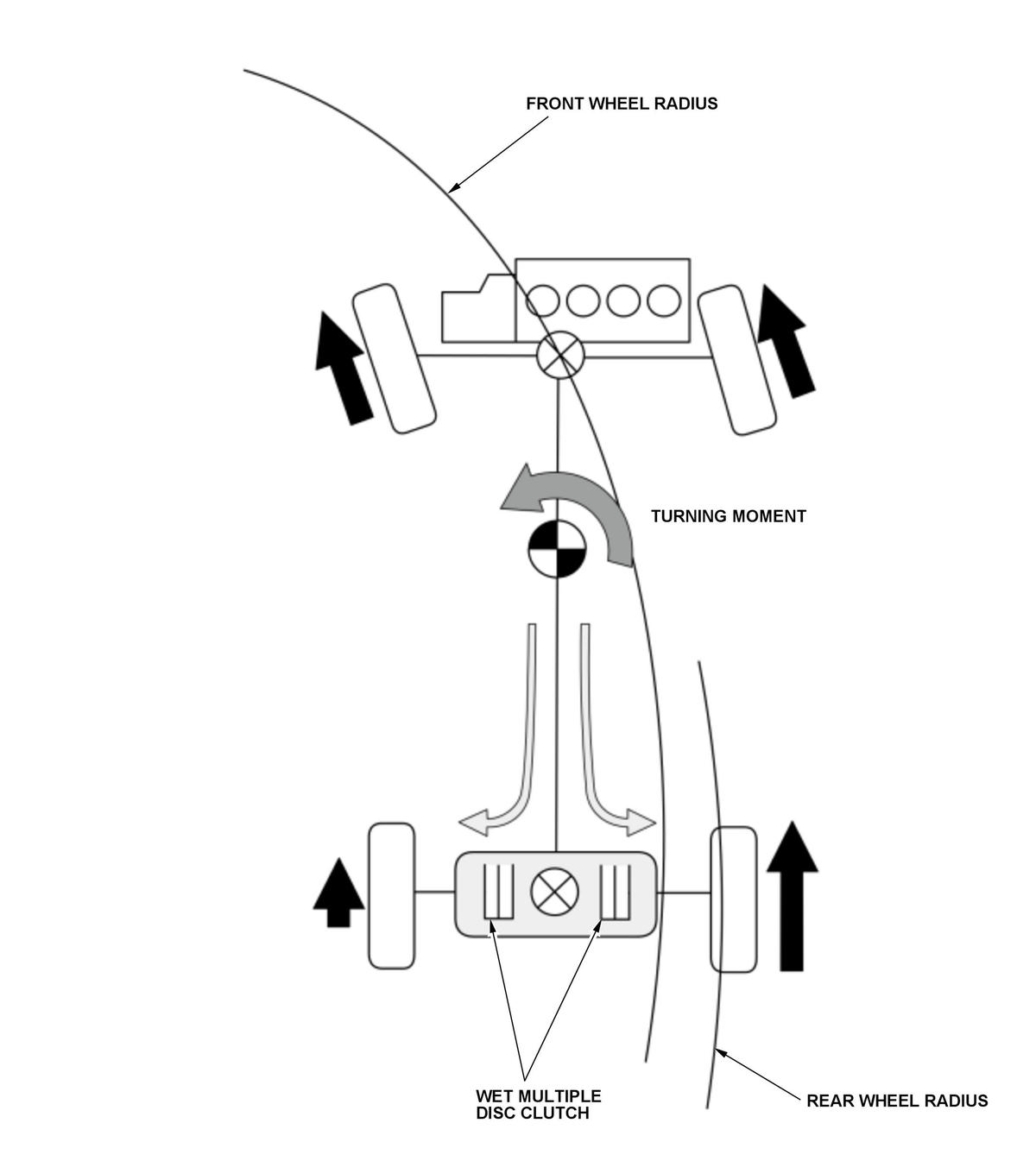

Operation
In a normal turn, the radius of the front wheels are shorter than the radius that the rear wheels travel. If the front and rear wheels are driven at the same speed, full power is not transmitted. The SH-AWD system monitors the speed of the front wheels and increases the speed of the outside rear wheel proportionally around the larger radius. This improves stability and steering response. On slippery surfaces, this provides the improved traction of a 4-wheel drive system.

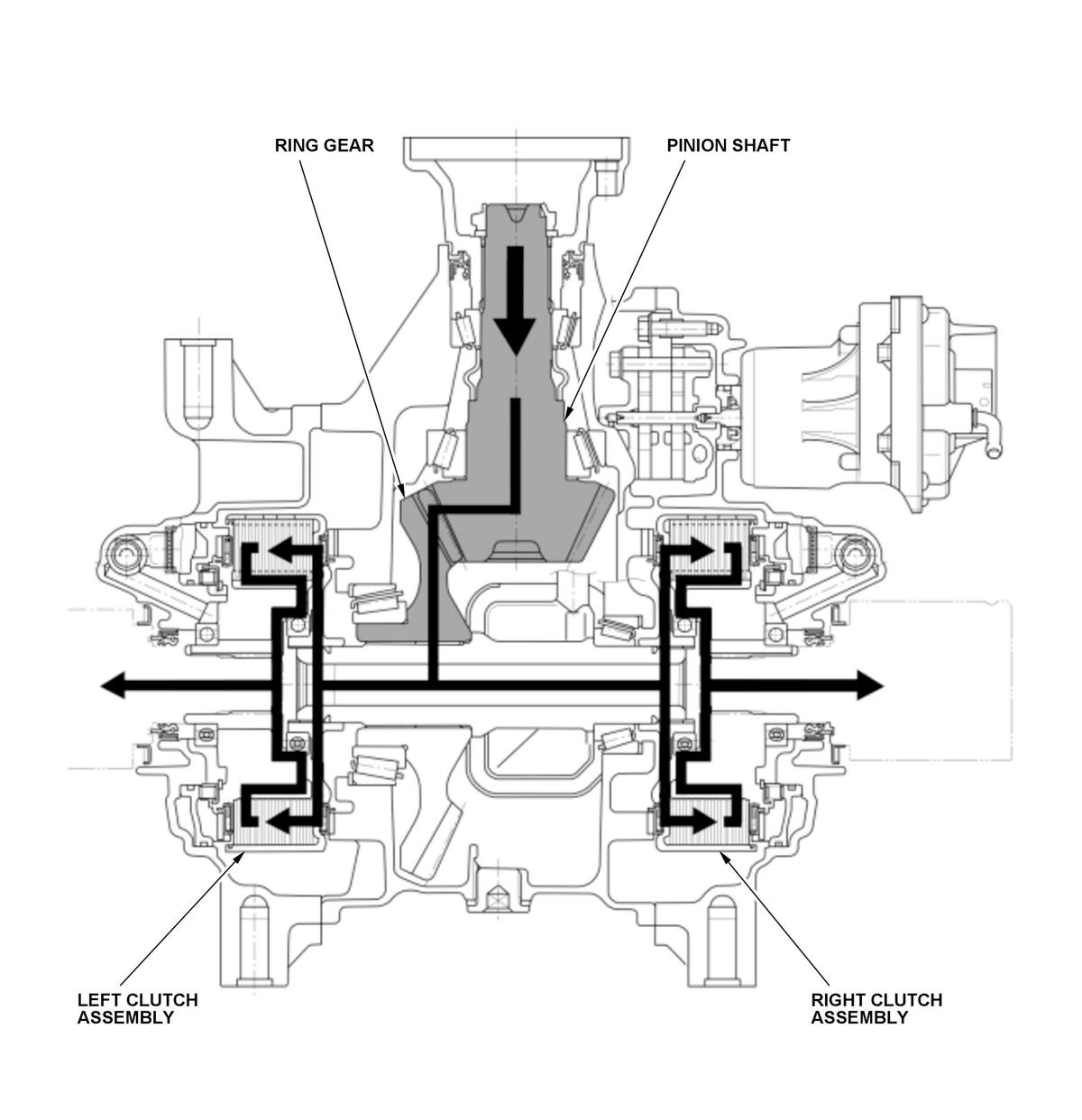

Power Transmission
The sub carrier assembly contains the pinion shaft and the ring gear. Power flows through the sub carrier assembly, providing power to the differential with a fixed 2.7 % acceleration ratio to the rear wheels. Power flows through the pinion shaft to the ring gear. If the clutches are disengaged, no power is transferred to the rear wheels. According to the driving condition, the driving power is transferred to the rear wheels by engaging or disengaging the left and right clutches. Because the clutch engaged condition of the left and right clutches is controlled separately, the driving power distribution to both clutches can be varied.

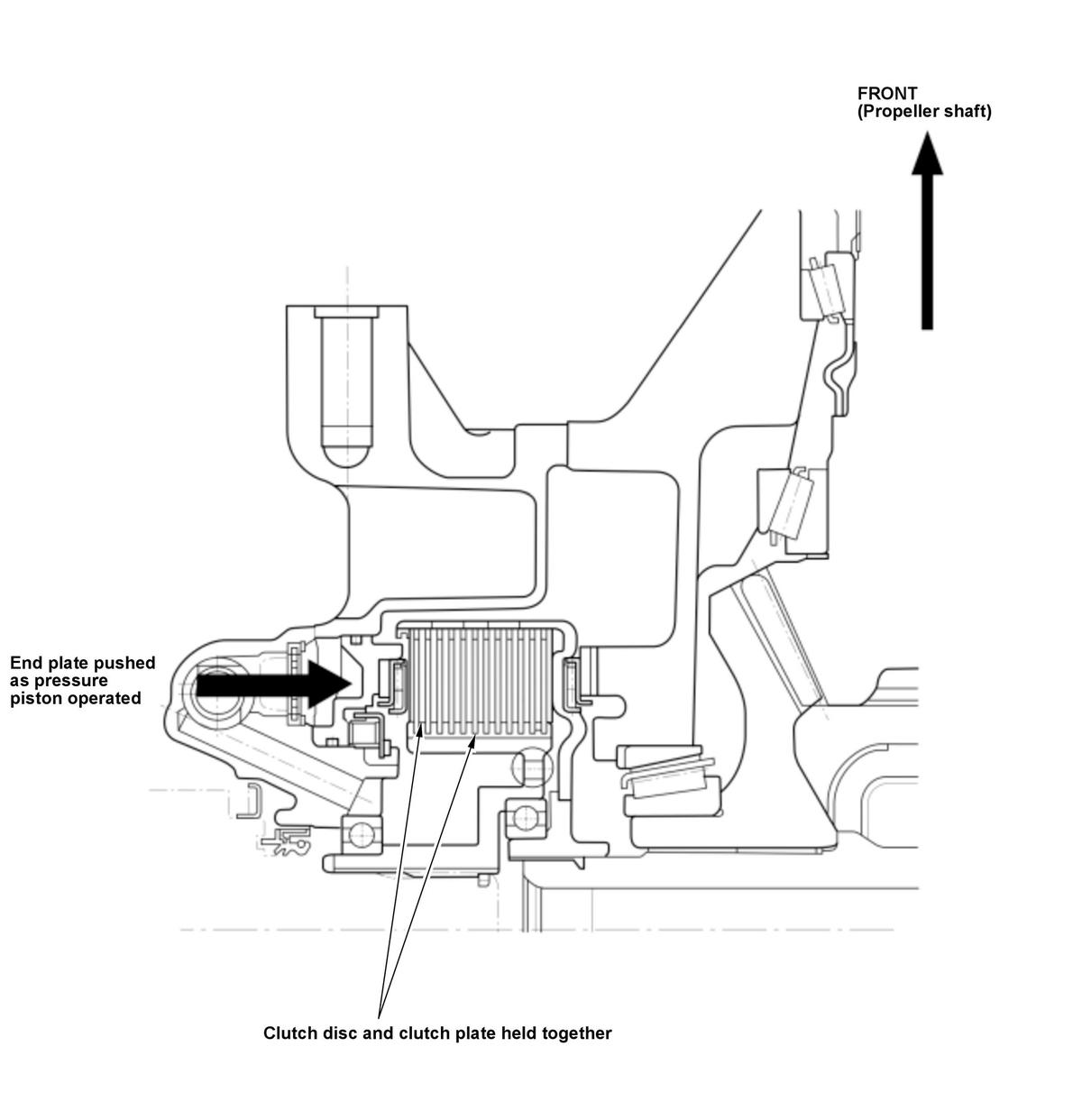

Driving force from the propeller shaft is transferred to both the clutch guide and clutch plate. As the SH-AWD control unit closes the rear differential solenoid valves, the fluid from the oil pump to the clutch piston is pressurized. The end plate is pushed by the clutch piston so the clutch discs and clutch plates are held together, then the clutch is engaged.
Construction
The rear differential assembly is composed of the multiple wet disc clutch and the hydraulic circuit.

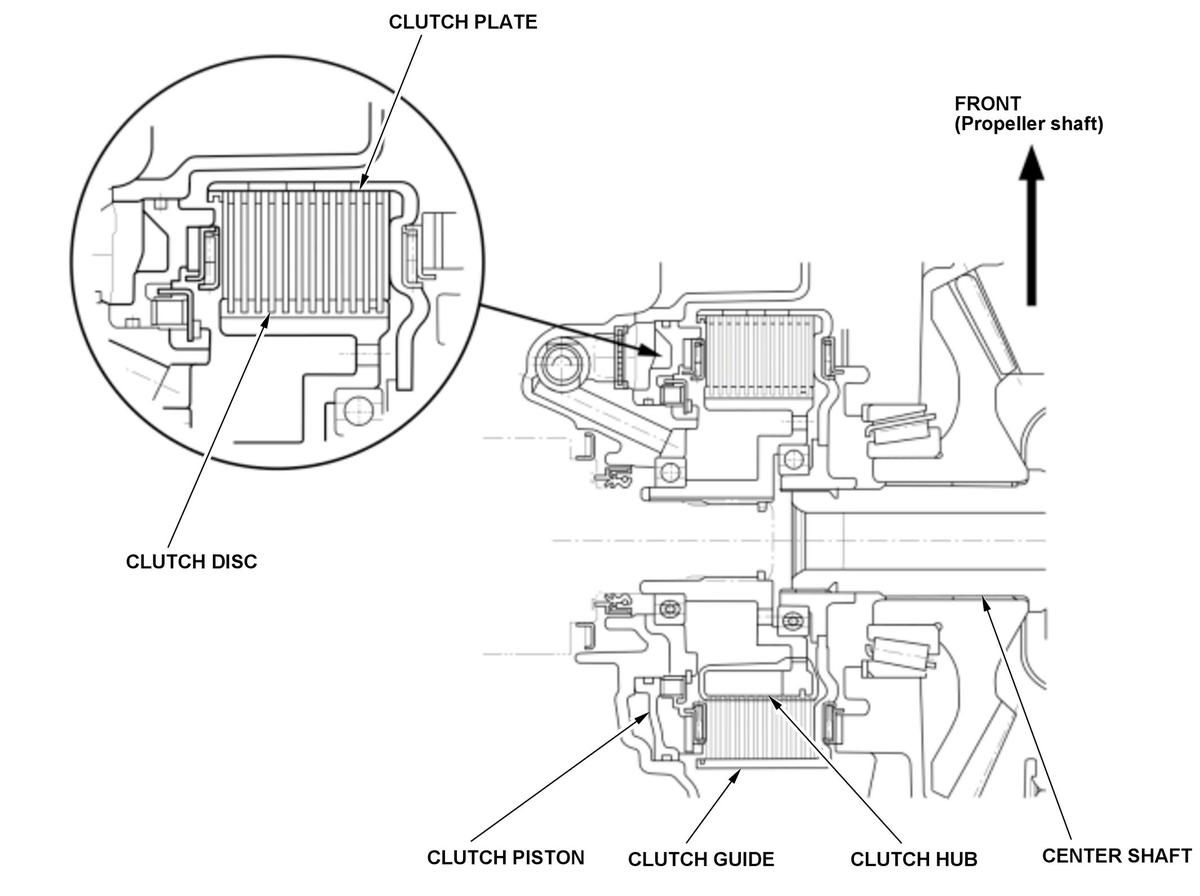

Multiple Wet Disc Clutch
The multiple wet disc clutch components are shown below:
| Components | Contents |
|---|---|
| Clutch disc | Installed on clutch hub with spline |
| Clutch plate | Installed on clutch guide with spline |
| Clutch guide | Engaged to center shaft |
| Clutch hub | Engaged to rear driveshaft |
| Clutch piston | By hydraulic pressure, pushing end plate, then engaged clutch disc with clutch plate |

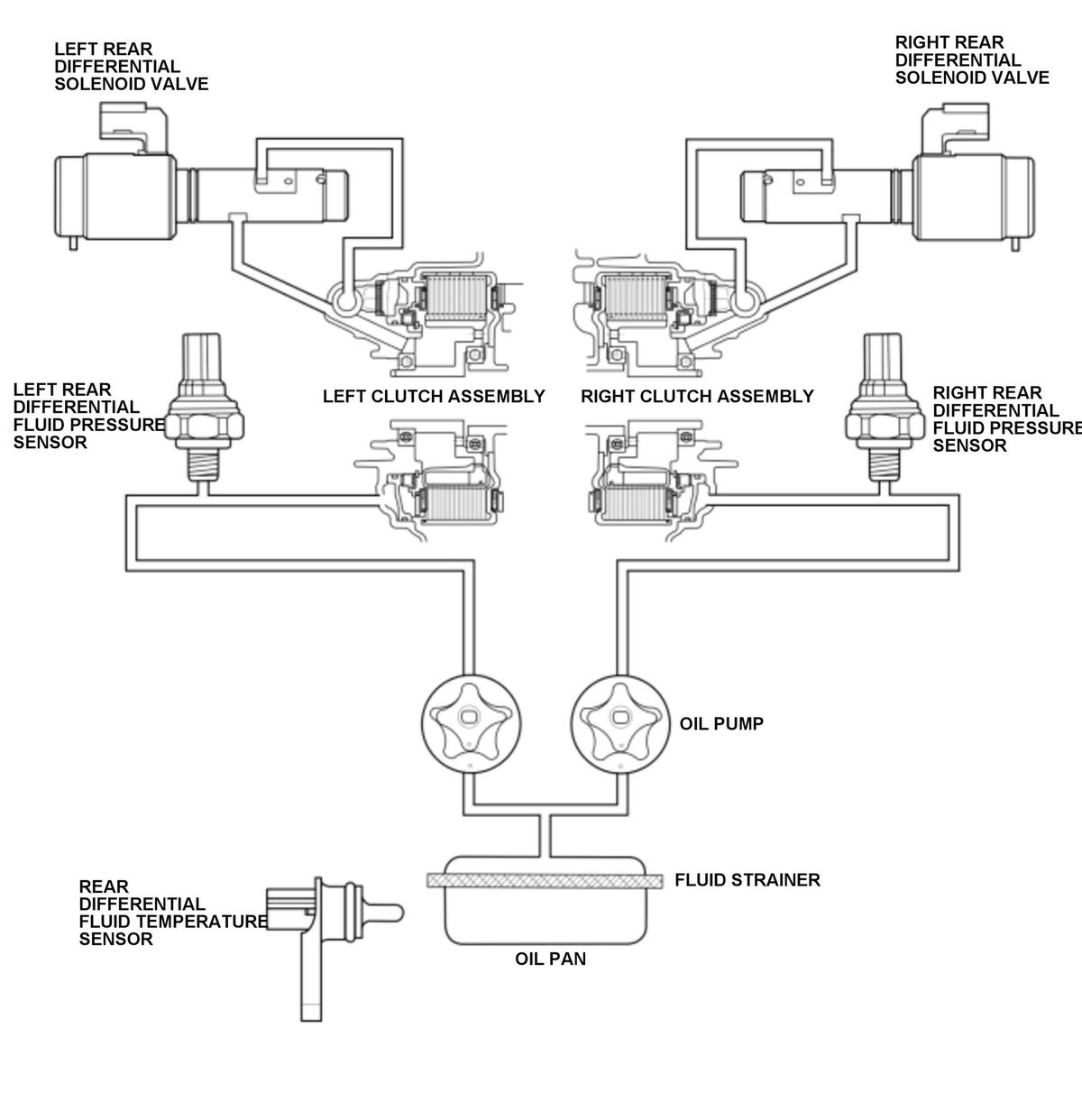

Hydraulic Circuit
The main components in the hydraulic circuit are shown below:
| Components | Contents |
|---|---|
| Oil pump | Driven by rear differential pump motor controlled by SH-AWD control unit, delivering oil drawn up from fluid strainer to hydraulic circuit |
| Rear differential solenoid valve | Controlling fluid pressure to the clutch piston(Rear differential solenoid valves are normally open type (ON-CLOSE/OFF-OPEN), and they are controlled by the electric current (duty controlled) from SH-AWD control unit.) |
| Rear differential fluid pressure sensor | Detecs fluid pressure to each clutch, sending feedback signal to SH-AWD control unit |
| Rear differential fluid temperature sensor | Detects fluid temperature in hydraulic circuit, sending feedback signal to SH-AWD control unit |
Hydraulic Pressure Control
The SH-AWD control unit controls fluid pressure applied to the clutches by adjusting the opening amount of the left and right rear differential solenoid valves according to the driving condition.

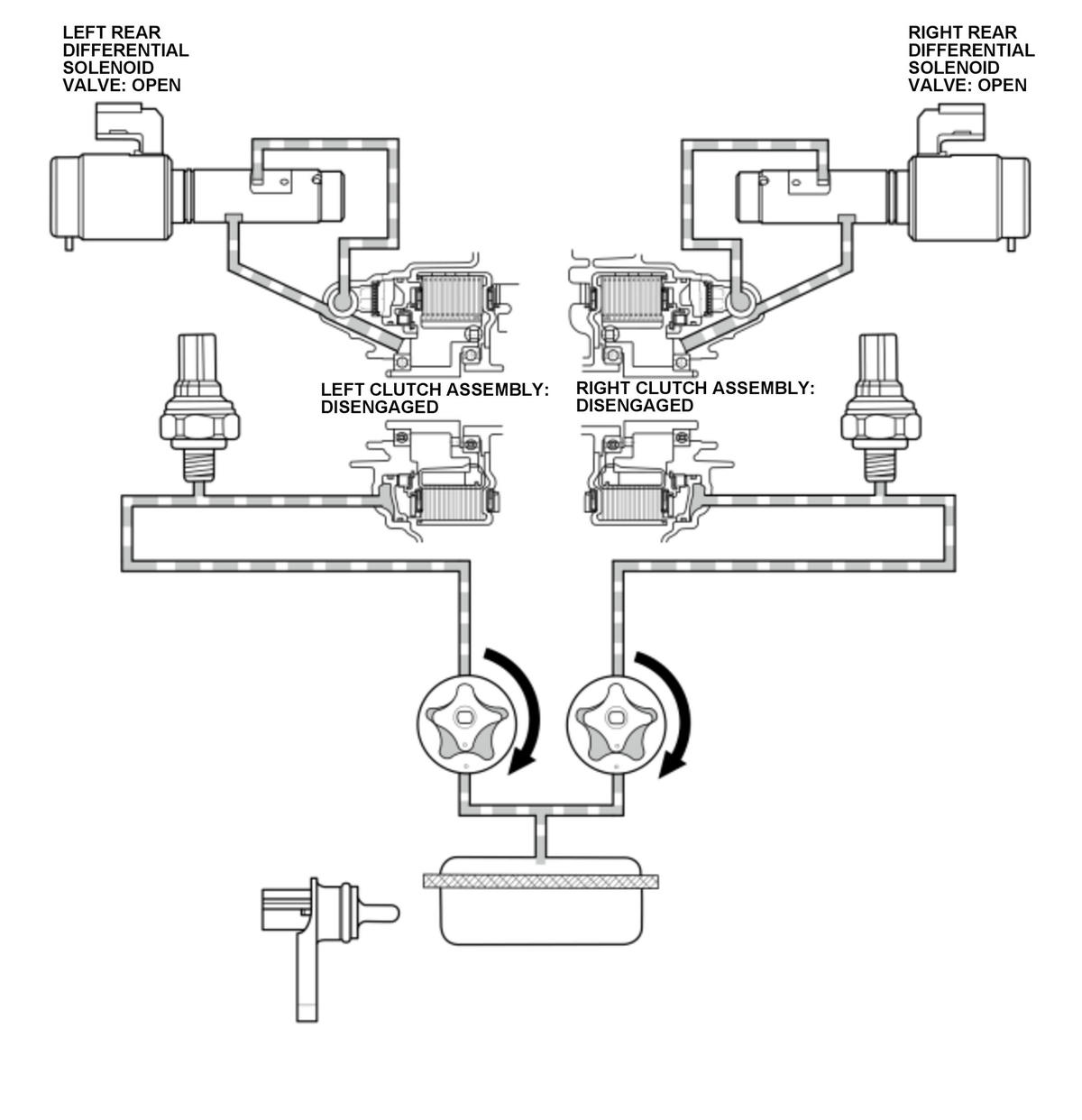

Vehicle Stop/Deceleration
Once the oil pump is driven by the rear differential pump motor, hydraulic pressure is generated, and hydraulic pressure are applied to the clutches. But because the rear differential solenoid valves on the downstream of the clutches are OPEN (OFF), hydraulic pressure for the clutch piston does not rise, so the clutches cannot be engaged.

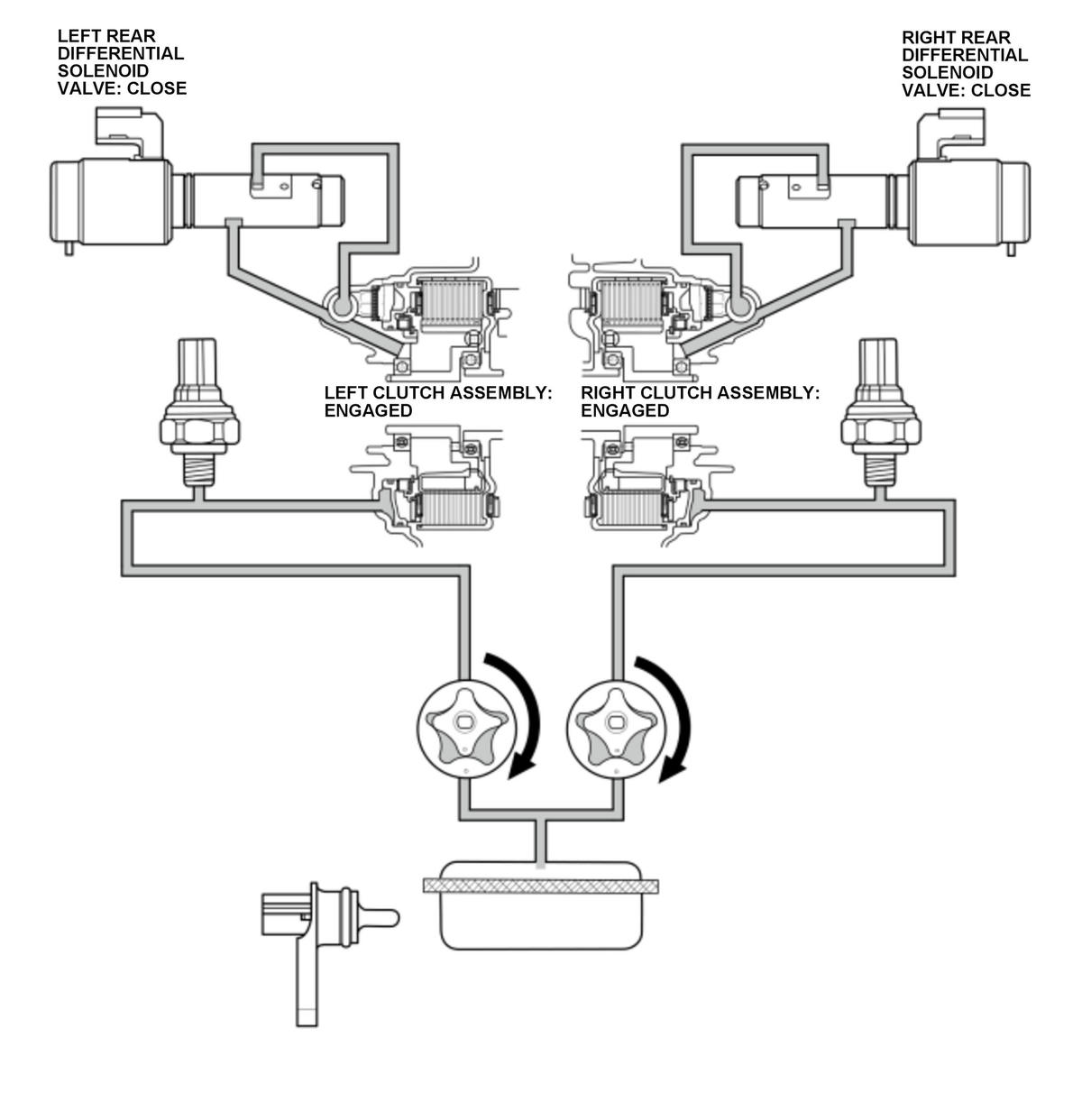

Acceleration
Once the oil pump is driven by the rear differential pump motor, hydraulic pressure is generated, and hydraulic pressure are applied to the clutches. But because the rear differential solenoid valves on the downstream of the clutches are CLOSE (ON), hydraulic pressure for the clutch piston rises, and the clutches can be engaged.

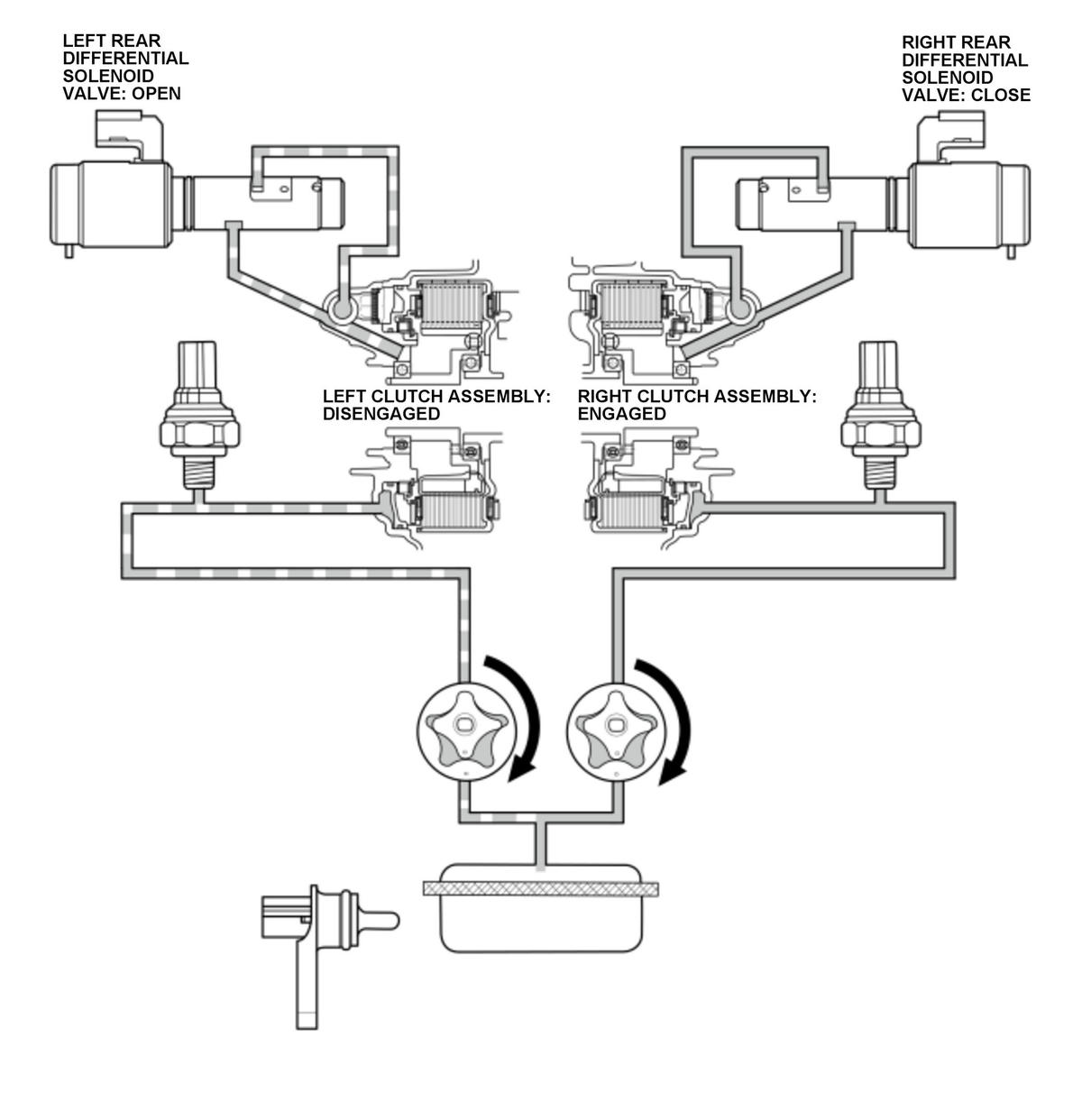

Left Turn
Left clutch assembly: Once the oil pump is driven by the rear differential pump motor, hydraulic pressure is generated, and hydraulic pressure is applied to the left clutch assembly. But because the left rear differential solenoid valve on the downstream of the left clutch assembly is OPEN (OFF), hydraulic pressure for the clutch piston does not rise, so the left clutch assembly cannot be engaged.Right clutch assembly: Once the oil pump is driven by the rear differential pump motor, hydraulic pressure is generated, and hydraulic pressure is applied to the right clutch assembly. But because the right rear differential solenoid valve on the downstream of the right clutch assembly is CLOSE (ON), hydraulic pressure for the clutch piston rises, and the right clutch assembly can be engaged.

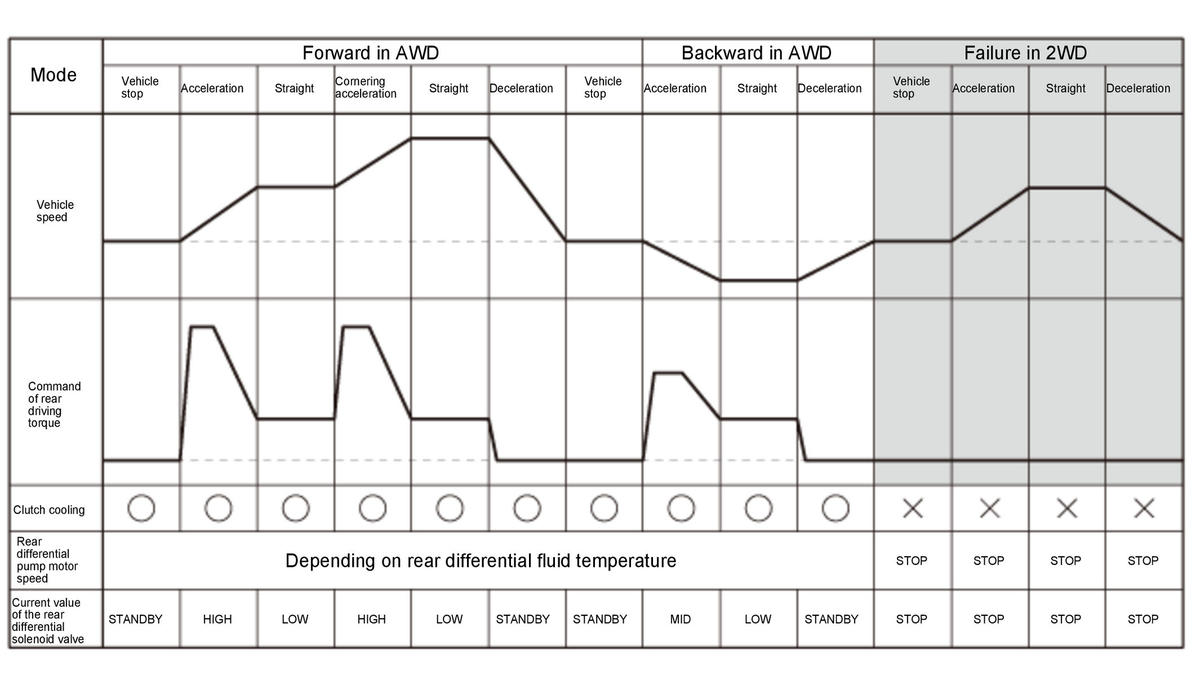

SH-AWD System Operation Pattern Chart
SH-AWD Control System
For locations of each component on vehicle, refer to Component Location Index.
- SH-AWD control unit
- PCM - Refer to: Fuel and Emissions Systems Component Location Index(Mexico models) or Fuel and Emissions Systems Component Location Index(Mexico models)
- TCM
- Yaw rate-lateral/longitudinal acceleration sensor
- Wheel speed sensor
- Gauge control module
- Steering angle sensor

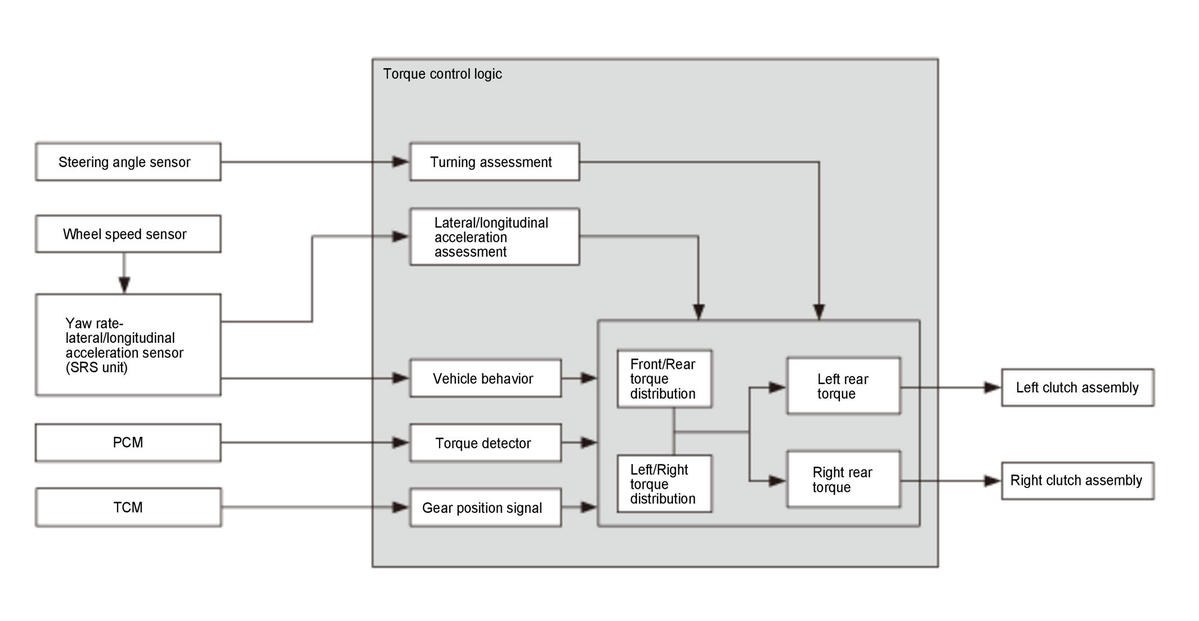

Control System
The SH-AWD control system consists of the SH-AWD control unit, PCM, TCM, yaw rate-lateral/longitudinal acceleration sensor (SRS unit), wheel speed sensor, gauge control module, and the steering angle sensor. The control units exchange information via the CAN communication lines. The SH-AWD control unit has a self-diagnostic function. If a malfunction is detected, the SH-AWD control unit turns on the AWD indicator in the gauge control module, and the system goes into fail-safe mode. When in fail-safe mode, the vehicle disables the SH-AWD differential. The vehicle defaults to front wheel drive and reduces engine torque to suit the driving conditions.
Driving Force Control
The driving force control distributes the power based on the driver's inputs. It distributes torque to the front and rear wheels based on the throttle opening and the available engine torque output. When turning, torque is applied to the rear wheels independently based on the lateral G input and the direction of the turn. This generates an inward yaw movement to help steer the vehicle around the turn.
