Unit Check
Some of the tests and screens that are displayed under the Unit Check are different from the more detailed checks listed under other menu options.

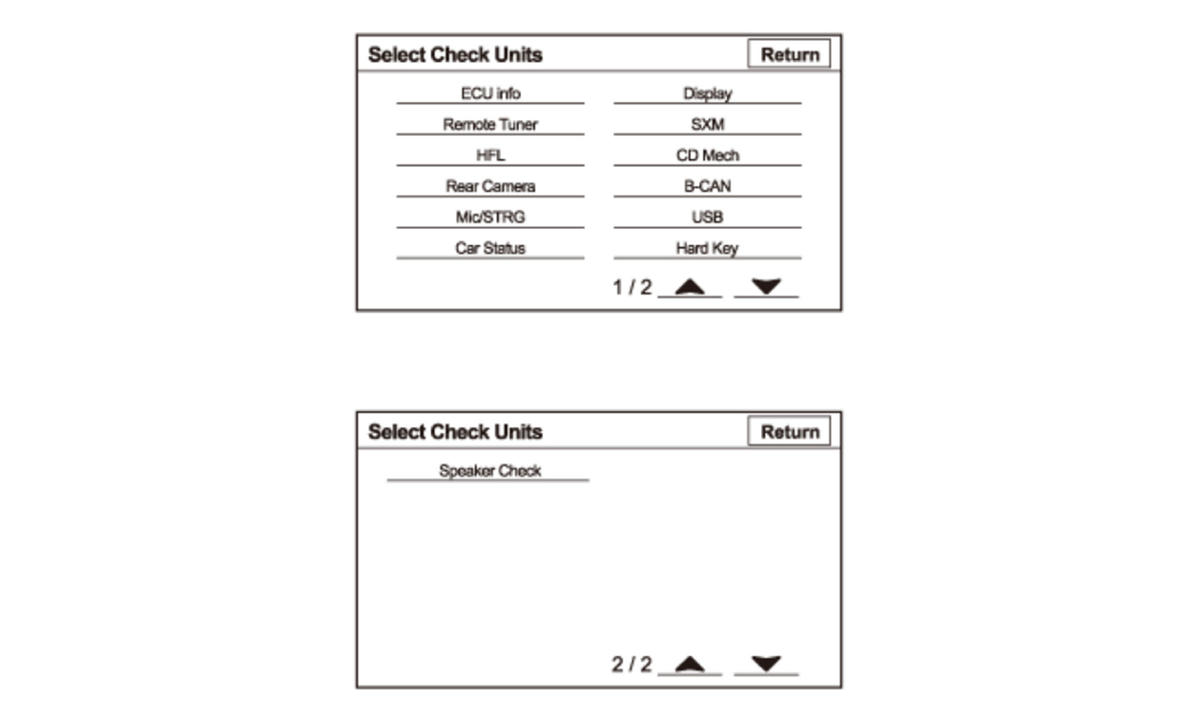

To start the test, select the item you want to check.
- ECU Info
- Display
- Remote Tuner
- SXM
- HFL
- CD Mech
- Rear Camera
- B-CAN
- Mic/STRG
- USB
- Car Status
- Hard Key
- Speaker Check

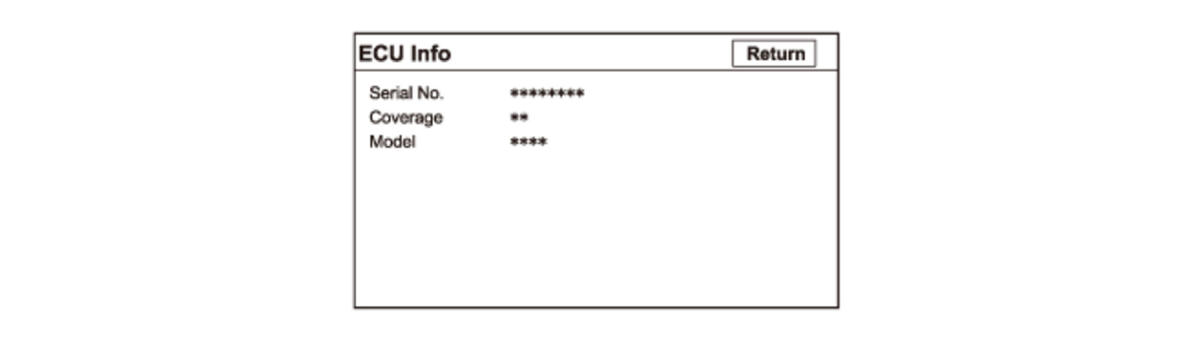

ECU Info
This screen displays for information in the audio ECU.
- Serial No.: Displays the audio unit serial number. That should be the same as the serial number found on the upper side of the audio unit.
- Coverage: Displays the destination market of the audio unit.
- Model: For this vehicle and trim level, the field should begin with TX6.

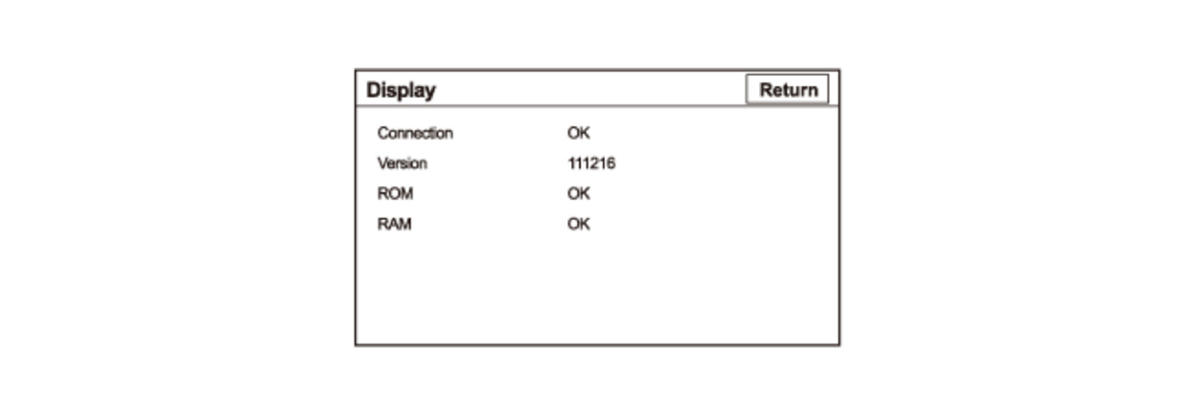

Display
This diagnosis does additional checks on the GA-Net bus between the audio unit and the center display unit. This test also checks the internal electronic functions.
- If Connection shows NG, the GA-net bus connection may be open or short between the center display unit and the audio unit.
- Version: Displays the center display unit software version.
- If ROM or RAM shows NG, replace the center display unit .

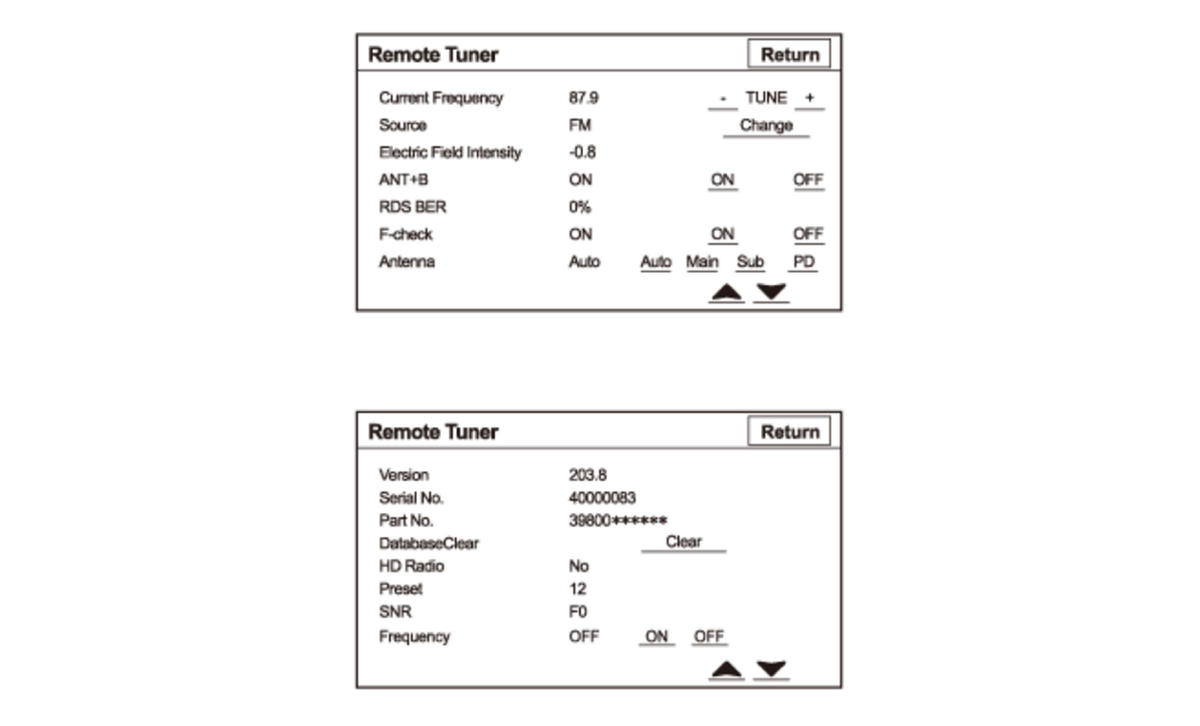

Remote Tuner
NOTE: For factory use only. Do not alter any settings unless directed.
This diagnosis shows the external radio tuner (AM/FM) status.
- Current Frequency can be changed by selecting TUNE.
- Source can be changed in this order: AM->FM by selecting Change.
- Electric Field Intensity: Displays radio reception sensitivity (dBμV).
- ANT +B: Changes the AM/FM antenna power status ON or OFF.
- RDS BER: Displays the number of RDS error that is receiving.
- F-Check: Changes the station list automatic updating operation status ON or OFF.
- Antenna: If the vehicle has diversity antenna, you can select the radio antenna function from Auto, Main, Sub, or PD (diversity).
- Version: Displays the tuner unit software version.
- Serial No.: Displays the tuner unit serial number.
- Part No.: Displays the tuner unit parts number.
- Database Clear: The Station list in the tuner unit can be cleared by selecting Clear.
- HD Radio: Changes the HD Radio (TM) function status YES or NO.

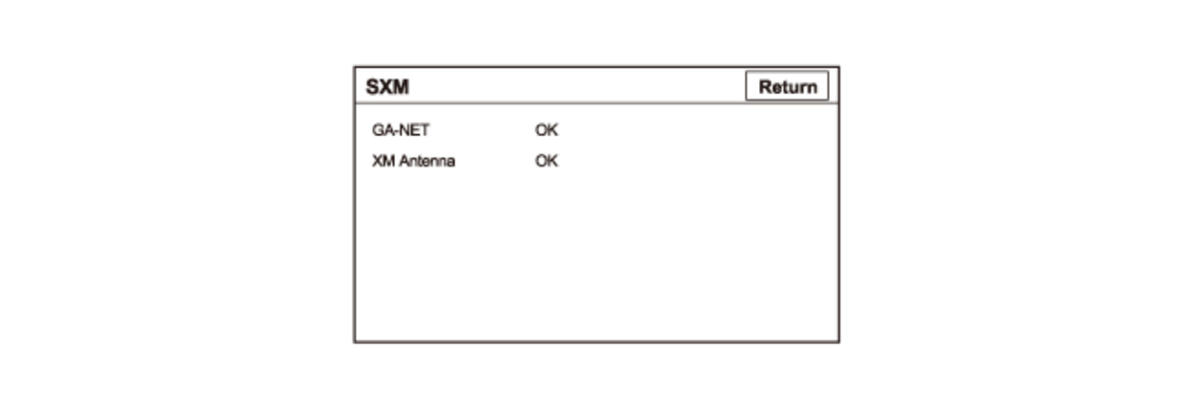

SXM
This diagnosis checks the GA-Net bus between the audio unit and the tuner unit. the XM receiver has been integrated with the tuner unit.
If the GA-Net bus connection is OK, the system checks the XM antenna connection.
- If GA-NET shows NG, go to XM radio display is blank and no station information is displayed troubleshooting .
- If XM Antenna shows NG, go to Error code: Check Antenna is displayed troubleshooting .

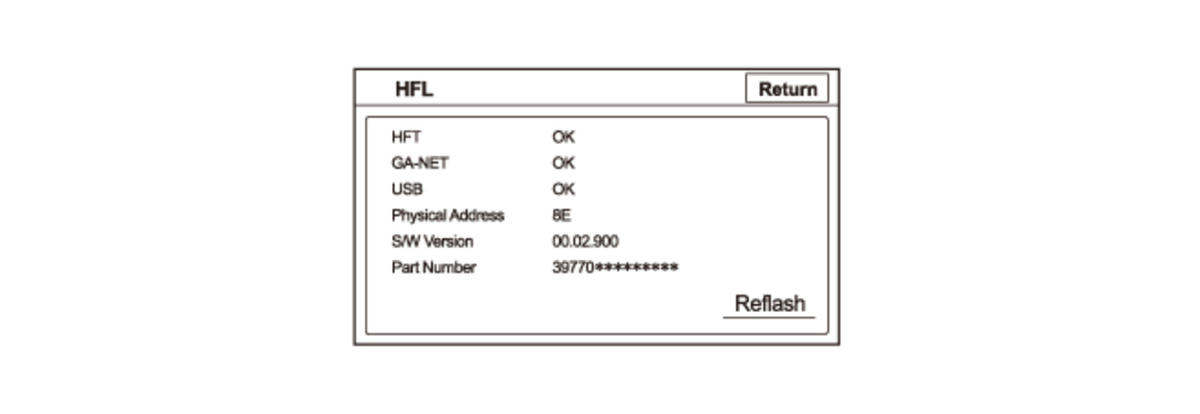

HFL
This diagnosis checks first whether the HandsFreeLink control unit is connecting to the audio unit via the GA-Net bus.
- If HFL shows B1792, go to the HFL DTC B1792 troubleshooting .
- If HFL and GA-NET shows NG, go to HFL does not respond troubleshooting .
- If USB shows NG, go to Phone book, TXT/E-mail does not work troubleshooting
.
NOTE: USB in this instance is referring to the HFT USB communication bus protocol between the HandsFreeLink control unit and the audio unit. It is not related to the USB port for the audio unit.
- Physical Address: Displays the HandsFreeLink control unit physical address (8E).
- S/W Version: Displays the HandsFreeLink control unit software version.
- Part Number: Displays the HandsFreeLink control unit parts number.
Check any official Honda service website to see if there are any updates available for the HandsFreeLink control unit. If the HandsFreeLink control unit need to update the software, do the HandsFreeLink Control Unit Update .

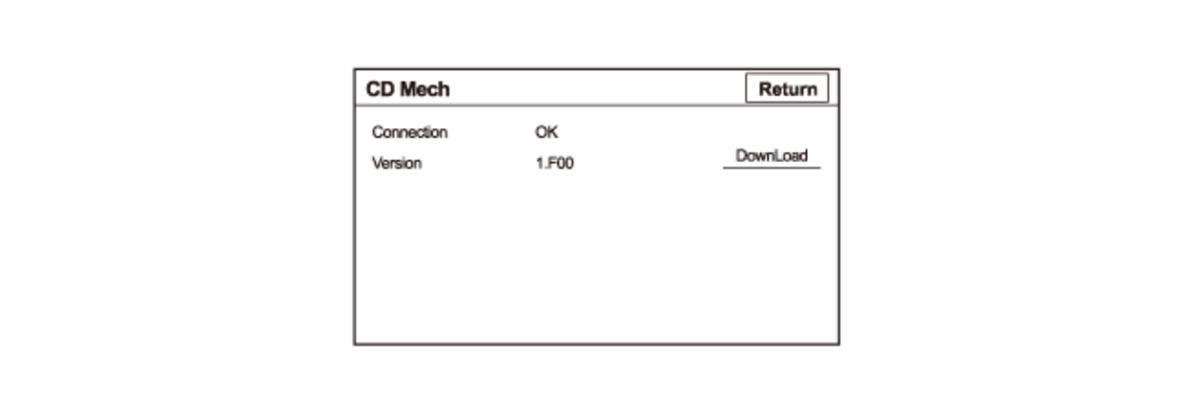

CD Mech
This diagnosis checks the audio unit internal CD player mechanism.
Version shows CD mech version. When the audio unit can read the version number, Connection shows OK. If the version number cannot be read, Connection shows NG.
- Inserting the CD mech update disc allows you to select Download. Otherwise it is grayed out.
- To update the CD mech, you must insert the update disc before selecting this screen. If you insert the update disc when you are on this diagnosis, the DownLoad stays grayed out. In this case, exit the CD Mech screen and start the diagnosis again.

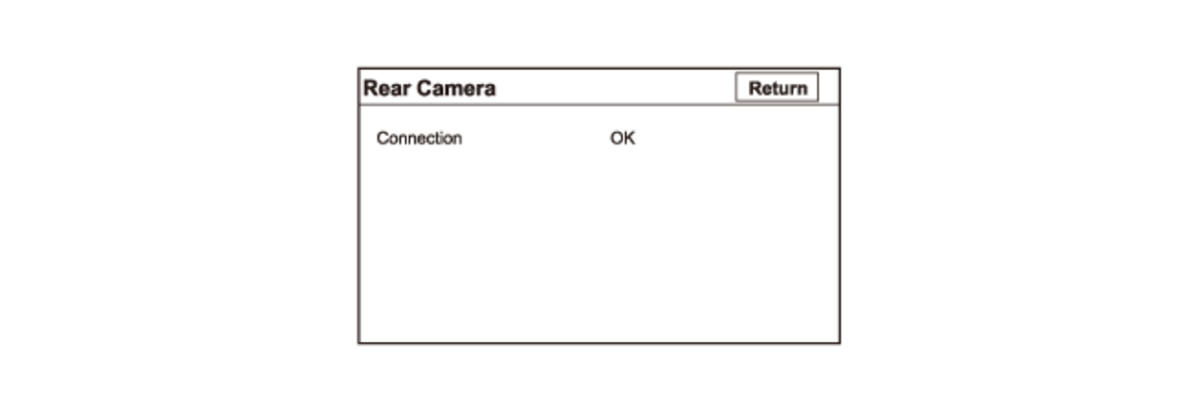

Rear Camera
This diagnosis checks the rearview camera connection.
- If Connection shows NG, the connection may be open between the rearview camera and the audio unit.
- If Connection shows OK, press the AUDIO button to display the rearview camera image. To return to the previous screen, press the AUDIO button again.

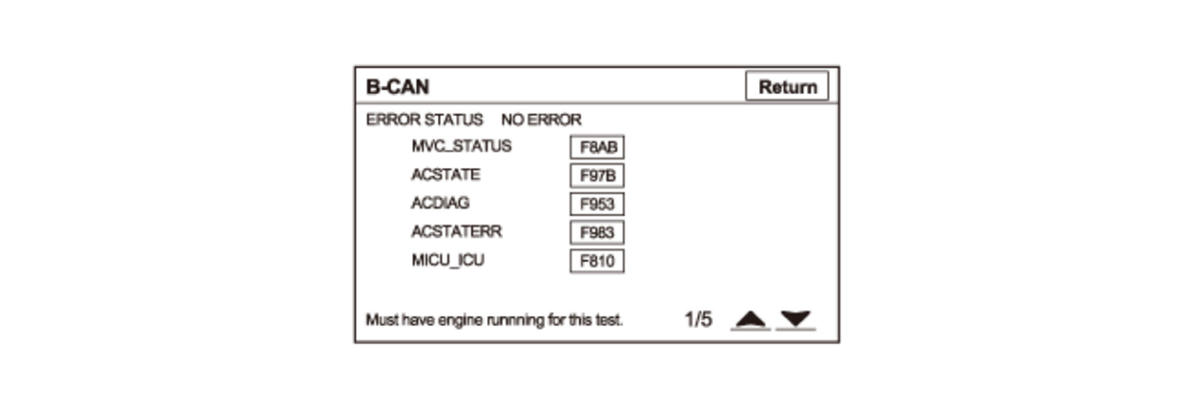

B-CAN
NOTE: This diagnosis must have the engine running.
This diagnosis checks whether the audio unit has received specific B-CAN data. If ERROR STATUS shows NO ERROR, an error is not detected between the B-CAN bus and the audio unit.
- If ERROR STATUS shows RAM ERROR, replace the audio unit .
- If the audio unit detects the B-CAN data reception error, ERROR Status shows RX ERROR.
- If ERROR STATUS shows TIME OUT, There is a possibility that some items are NG (red icon). When all the items from each transmitting unit is NG, check for B-CAN DTCs with the HDS. If DTCs not detected, check for continuity in the B-CAN lines between the audio unit and the transmitting unit.
| Target ID for Connection Check | Transmitting Unit |
|---|---|
| ACINFO | Climate control unit |
| MICU_ICU | MICU |
| ILLUMI | Gauge control module |

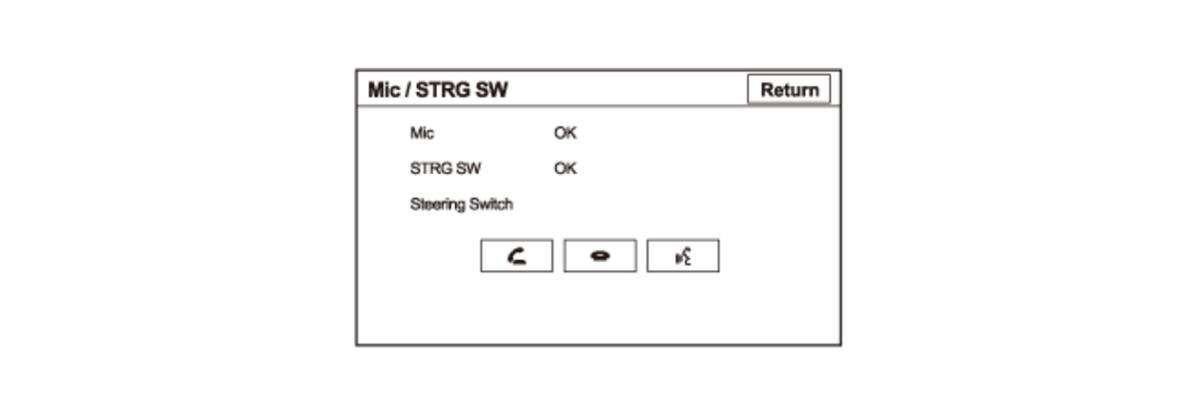

Mic/STRG SW
This diagnosis checks whether the microphone is connecting to the HandsFreeLink control unit, and checks whether the HFL switch is communicating with the audio unit.
- If Mic shows HFL DTCs (B1775 or B1776), go to the indicated HFL DTC troubleshooting.
- If Mic shows NG, the GA-net bus connection may be open or short between the HandsFreeLink control unit and the audio unit.
- If STRG SW shows HFT DTCs (B1779 or B1780), go to the indicated HFT DTC troubleshooting.

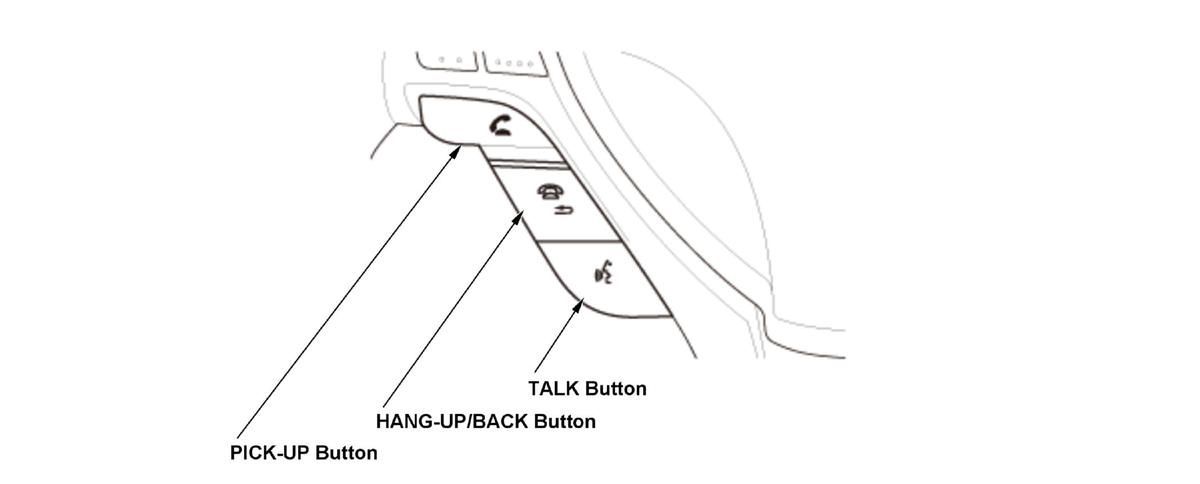

When STRG SW shows OK, press the PICK-UP, HANG-UP/BACK, and TALK buttons. As each button is pressed, the corresponding icon on the display should turn green. If any icon does not briefly turn green, replace the audio remote-HFL switch , and recheck.

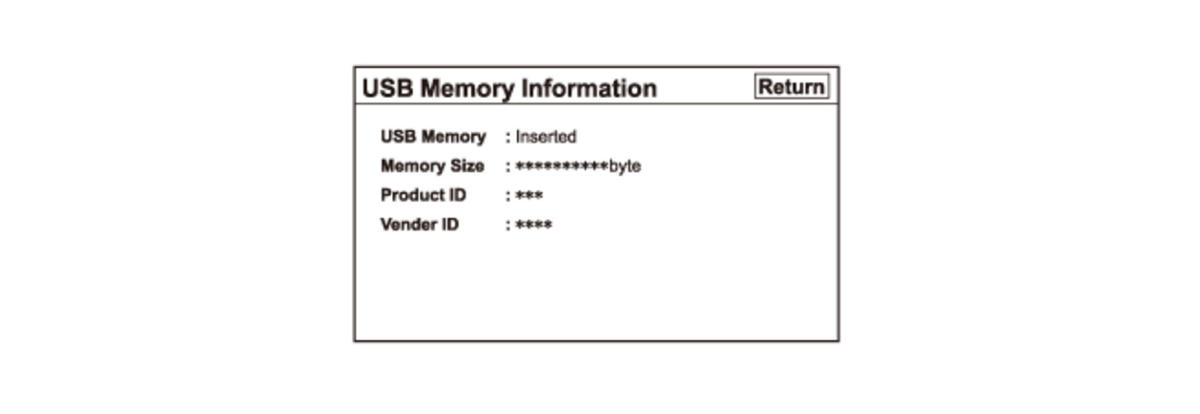

USB Memory Information
This diagnosis displays the USB memory status that is connected to the audio unit.
If the USB memory is connected to the USB port, the screen displays the connection status (Inserted/Not Inserted), the USB memory size, and the Product ID, Vender ID.

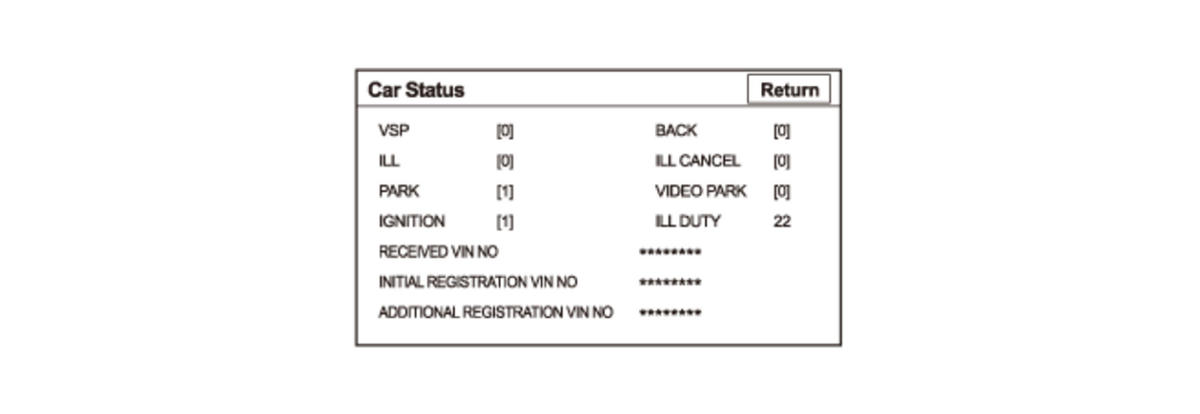

Car Status
Use this screen to confirm that the audio unit is properly receiving input signals. The displayed value changes each time according to the state of input signal.
| Item | Input | Description |
|---|---|---|
| VSP | B-CAN line |
|
| BACK | BACK LT line |
|
| ILL | B-CAN lines (from gauge control module) |
|
| ILL CANCEL | B-CAN lines |
|
| Item | Input | Description |
|---|---|---|
| PARK | B-CAN lines |
|
| VIDEO PARK * | PARKING BRAKE SW line |
|
| IGNITION | B-CAN lines |
|
| ILL DUTY | B-CAN lines (from gauge control module) | With the parking lights on, use the dashlights brightness control to dim and brighten the gauge. The value changes from 1 (max low) to 22 (max high). |
| RECEIVED VIN NO | B-CAN lines | This item indicates the VIN that received from the PCM. |
| INTERNAL REGISTRATION VIN NO | B-CAN lines | This item indicates the initial registration VIN that is saved in the audio unit. |
| ADDITIONAL REGISTRATION VIN NO | B-CAN lines | This item indicates the additional registration VIN when the audio unit is substituted into another vehicle, or when a PCM is substituted or replaced into this vehicle. |
| *: Not available |

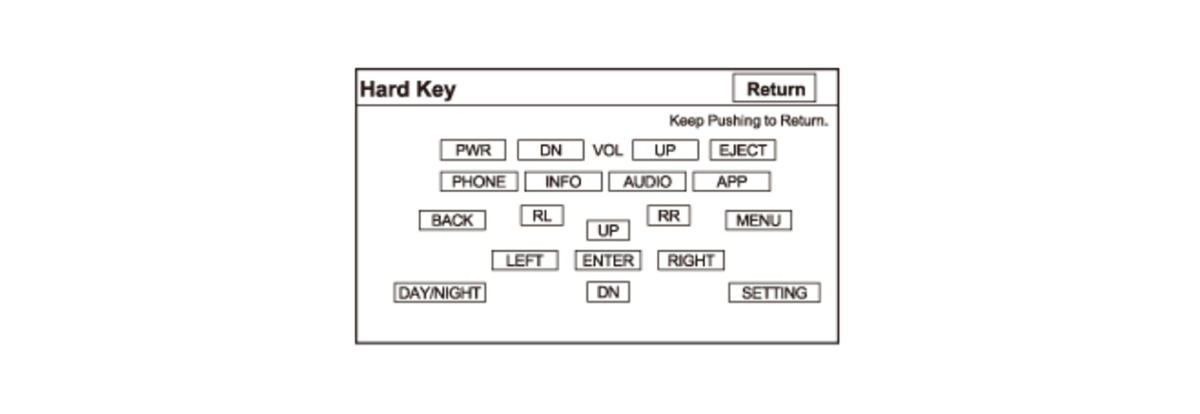

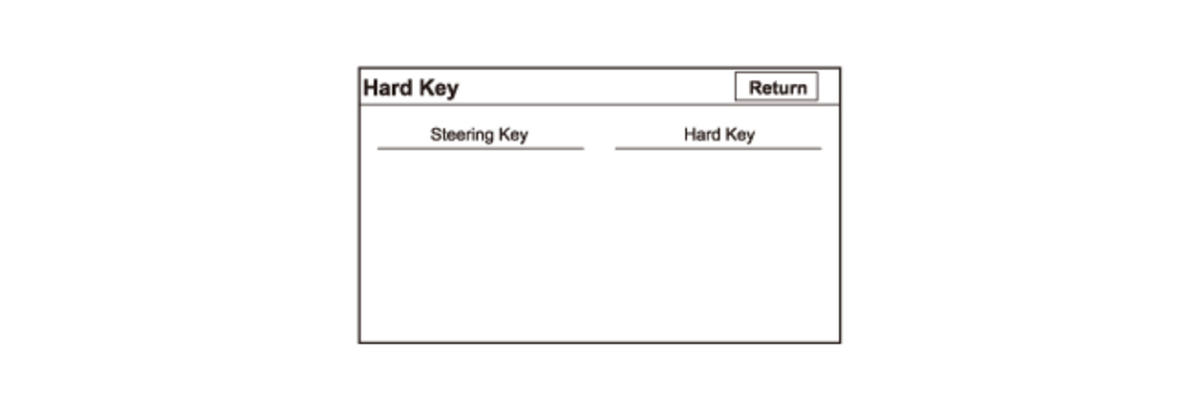

Hard Key
This diagnosis tests the interface dial, the center switch panel buttons that surround it, and the audio remote-HFL switch.
To complete the each test, control the audio remote-HFL switch, press the center switch panel buttons, and move the interface dial to each indicated position. As each function is tested, the corresponding button on the display should highlight. To exit, press in and hold the interface dial knob.
If the test cannot be completed, the corresponding icon on the Hard Key menu screen shows red.

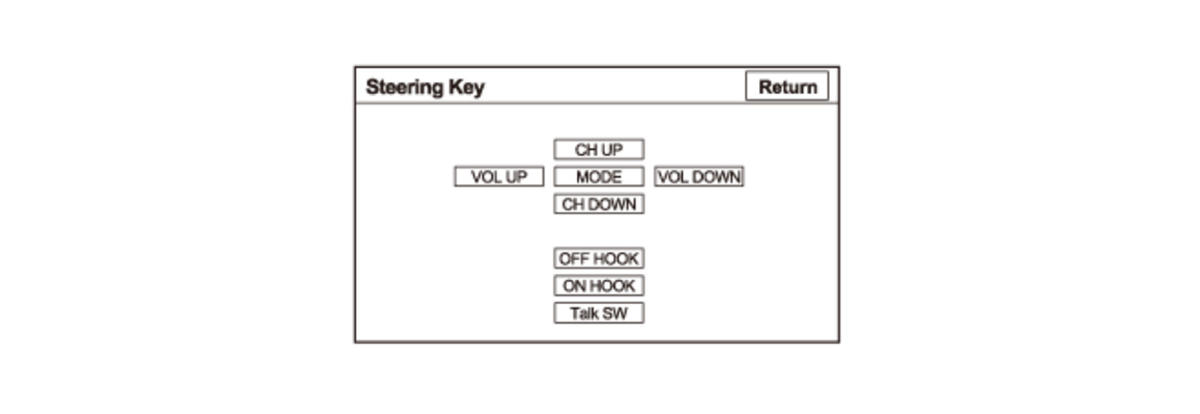

- Steering Key: Checks the audio remote-HFL switch buttons.
- Hard Key: Checks the center switch panel buttons and the interface dial.
NOTE: You cannot use the onscreen return button to exit this function.
Select Steering Key
Select Hard Key

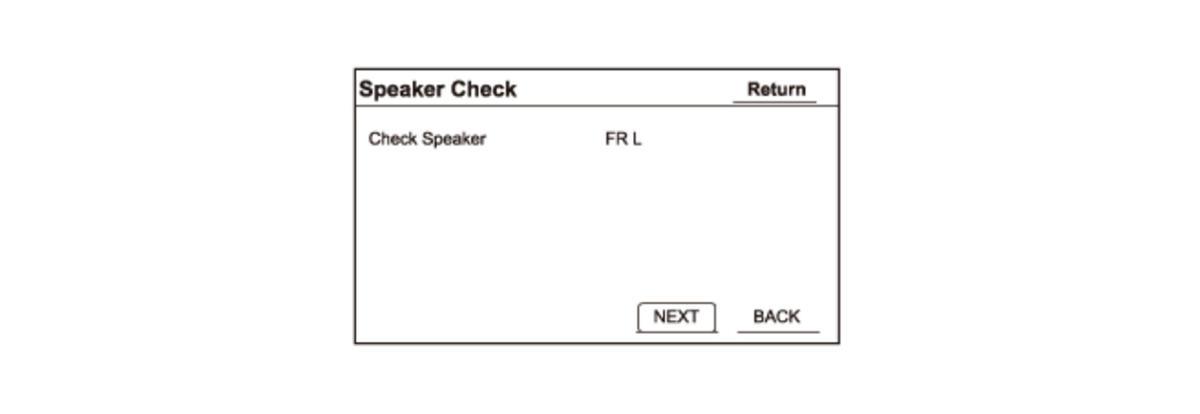

Speaker Check
NOTE: While doing the diagnosis, the fader and the balance positions are set to the center.
This diagnosis checks the audio speakers individually.
Selects NEXT or BACK to select Speaker. A tone should sound from the speaker.
| When you select NEXT, the system checks the speakers in this order: |
| When you select BACK, the system checks the speakers in this order: |
| Display Message | Vehicle Test Condition | |
|---|---|---|
| FR L | You should hear a tone from the driver's door speaker |
| Display Message | Vehicle Test Condition | |
|---|---|---|
| FR R | You should hear a tone from the front passenger's door speaker | |
| RR R | You should hear a tone from the right rear door speaker | |
| SWF | You should hear a tone from the subwoofer | |
| RR L | You should hear a tone from the left rear door speaker | |
| FRTW L | You should hear a tone from the left front tweeter | |
| FRTW R | You should hear a tone from the right front tweeter | |
| ALL | You should hear a tone from all speakers |
