HandsFreeLink System - Phone book, TXT/E-mail does not work (2016 2017 2018 2019 2020 2021 2022)

Phone book, TXT/E-mail does not work

NOTE:

• Check the vehicle battery condition first .
• Before you troubleshoot, make sure to follow the General Troubleshooting Information .
• Check any official Honda service website for more service information about the HFL system.
• Once the symptom is duplicated, contact the HFL Customer Service. Many HFL issues are related to the cell phone and not the HFL system.
• Make sure the client's cell phone is properly paired.
• See if you can duplicate the symptom in a known-good vehicle under the same conditions. If you can, it is probably a characteristic of the system.
• Always use the client's cell phone to successfully diagnose the problem.
• Check the connectors for poor connections or loose terminals.

1. Problem verification

   -1. Pair the client's cell phone with Bluetooth to the vehicle.

   Is the client's phone book and call history imported to the vehicle?

   YES

   Intermittent failure, the system is OK at this time.

   NO

   The failure is duplicated, go to step 2.

2. Determine possible failure area (cell phone, others)

   -1. Pair an approved known-good cell phone to the vehicle.

   Is the phone book and call history imported to the vehicle?

   YES

   The client's cell phone with Bluetooth is defective or not compatible. Check online, or call the HFL Customer Service to make sure the client's cell phone is compatible with the HFL system and that there are no known issues.

   NO

   Go to step 3.

3. HFL diagnosis check:

   Go into the System Diagnostic Mode, and select the HFL in the Unit Check menu:

   • With navigation
   • Without navigation

   Is USB NG indicated?

   YES

   Go to step 4.

   NO

   Replace the HandsFreeLink control unit .

4. Open wire check (USB lines)

   -1. Press the engine start/stop button to select the OFF mode.

   -2. Disconnect the following connectors.

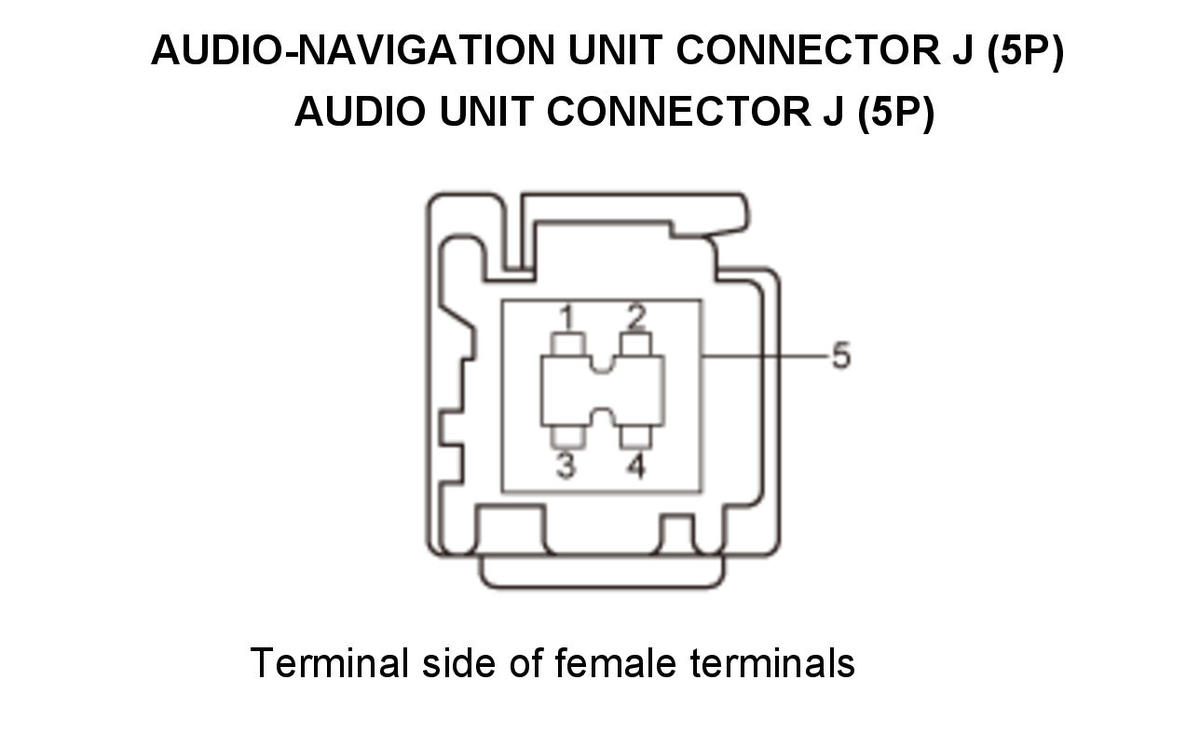

   Audio-navigation unit connector J (5P) (with navigation)

   Audio unit connector J (5P) (without navigation)

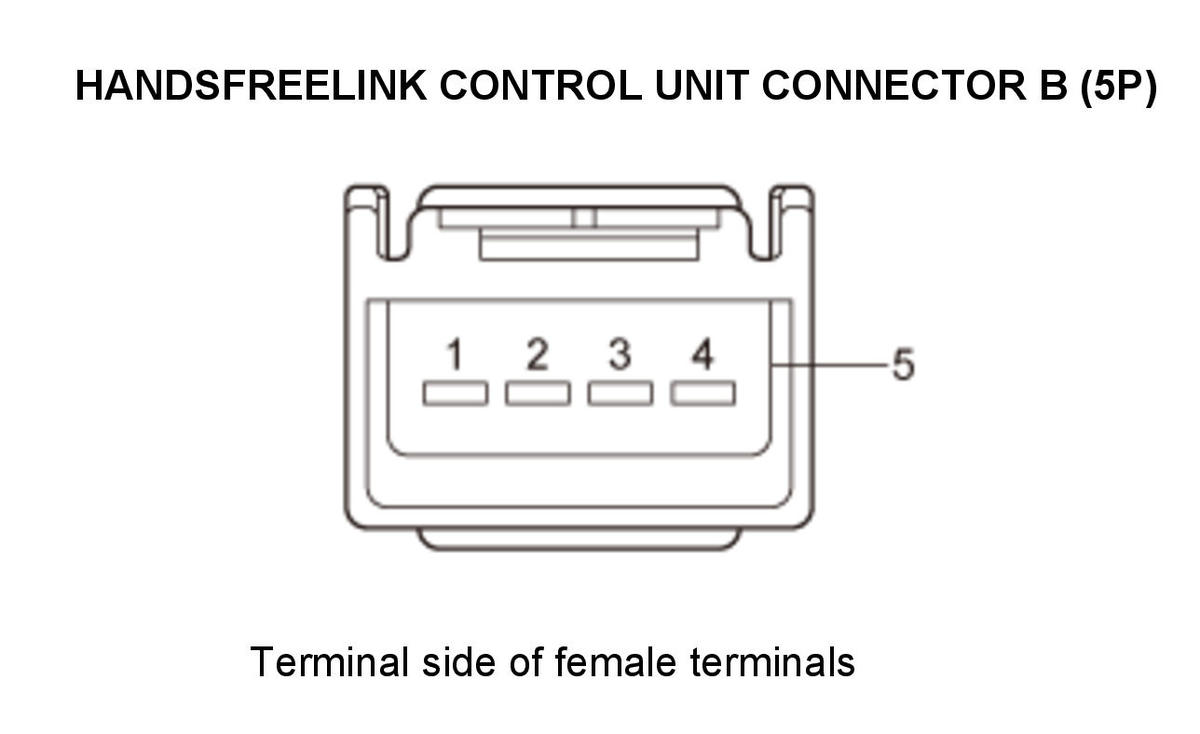

   HandsFreeLink control unit connector B (5P)

   -3. Check for continuity between test points 1 and 2.

   Test condition	OFF mode
   	Audio-navigation unit connector J (5P) (with navigation): disconnected
   	Audio unit connector J (5P) (without navigation): disconnected
   	HandsFreeLink control unit connector B (5P): disconnected

   Test circuit	Test point 1:Audio-navigation unit connector J (5P) or Audio unit connector J (5P)	Test point 2:HandsFreeLink control unit connector B (5P)
   USB GND	No. 1	No. 4
   USB VBUS	No. 2	No. 1
   USB DATA+	No. 3	No. 3
   USB DATA-	No. 4	No. 2

   Courtesy of HONDA, U.S.A., INC.

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The USB wires are OK. Go to step 5.

   NO

   There is an open in the wire(s) between the audio-navigation unit or the audio unit and the HandsFreeLink control unit. Replace affected shielded harness.

5. HandsFreeLink control unit check (substitution)

   -1. Substitute a known-good HandsFreeLink control unit .

   -2. Reconnect all the connectors, and recheck.

   Does the symptom go away?

   YES

   Replace the original HandsFreeLink control unit.

   NO: With navigation

   Replace the audio-navigation unit .

   NO: Without navigation

   Replace the audio unit .
