GPS Antenna Removal/Installation

Remove these items:
- Gauge control module (see GAUGE CONTROL MODULE REPLACEMENT )
- Audio-navigation switch panel (see AUDIO-NAVIGATION SWITCH PANEL REMOVAL/INSTALLATION )
- Audio-navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION )
Remove the bolts (A) and detach the clips (B).

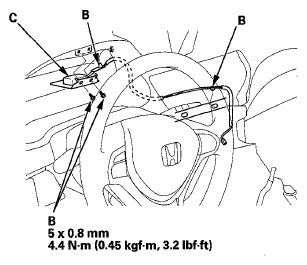

Fig 1: GPS Antenna, Bolts And Clips With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Carefully pull out the GPS antenna (C) from the dashboard, and remove it.
Install the GPS antenna in the reverse order of removal.
