Gauge Control Module Replacement

NOTE: Before replacing the gauge control module, retrieve the ODO value and the maintenance minder information from the gauge control module with the HDS (see REWRITING THE ODO DATA AND TRANSFERRING THE MAINTENANCE MINDER™ DATA TO A NEW GAUGE CONTROL MODULE ).
  1. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ), then remove the dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  2. Remove the two bolts from under the dashboard, then pull the gauge control module (A) out carefully.

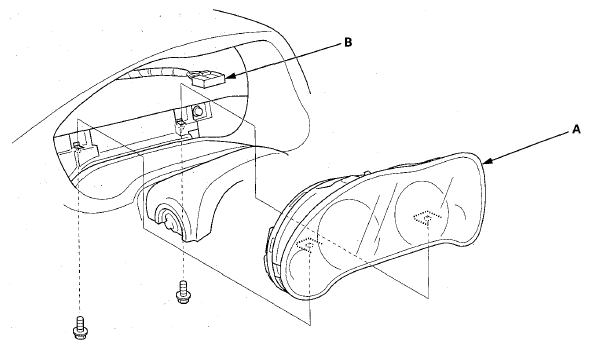

    Fig 1: Identifying Gauge Control Module And 32P Connector Terminals
    G07770915Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 32P connector (B) from the gauge control module.
  4. Install the gauge control module in the reverse order of removal.
  5. Rewriting the ODO data and transfer the maintenance minder data to a new gauge control module (see REWRITING THE ODO DATA AND TRANSFERRING THE MAINTENANCE MINDER™ DATA TO A NEW GAUGE CONTROL MODULE ).
