Audio-Navigation Unit Removal/Installation

NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the dashboard and related parts.
  • Lay a shop towel under the parts when working on them to protect the face panel from scratches or other damage.
  • Eject the disc before removing the audio-navigation unit to prevent damaging the CD/DVD player's load mechanism.
  • If you are replacing the audio-navigation unit, write down the audio presets (if possible), then enter them into the new audio-navigation unit.
  • If the audio-navigation unit is replaced or disconnected, a Map Matching must be done (see MAP MATCHING  ).
  1. Make sure you have the 5-digit anti-theft code.
  2. Remove the driver's center trim (see CENTER TRIM REMOVAL/INSTALLATION ) and the passenger's dashboard trim (see PASSENGER'S DASHBOARD TRIM REMOVAL/INSTALLATION ).
  3. Remove the passenger's center trim (see CENTER TRIM REMOVAL/INSTALLATION ) and the center console panel (see CENTER CONSOLE PANEL REMOVAL/INSTALLATION ).
  4. Remove the climate control unit (see CLIMATE CONTROL UNIT REMOVAL/INSTALLATION ).
  5. Carefully remove the bolts (A) and bolts (B), then pull the audio-navigation unit (C) out.

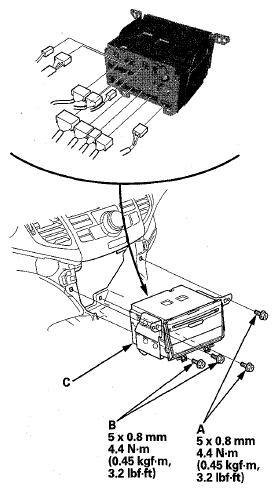

    Fig 1: Identifying Audio-Navigation Unit And Bolts
    G07771741Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Disconnect the audio-navigation unit connectors, and remove the audio-navigation unit.
    NOTE:
  7. Remove the bolts (A) and brackets (B) from the audio-navigation unit.
    Fig 2: Audio-Navigation Unit, Brackets And Bolts With Torque Specification
    G07771742Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Remove the screws and the front panel (A) from the audio-navigation unit (B).
    Fig 3: Identifying Front Panel And Audio-Navigation Unit With Screws
    G07771743Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Install the audio-navigation unit in the reverse order of removal.
    NOTE: Check any official Honda service website for more service information about patches for the navigation system. Apply any prescribed patches to the new audio-navigation unit.
  10. Enter the new 5-digit anti-theft code.
  11. Park the vehicle outside, and do the GPS Initialization (see SYSTEM INITIALIZATION  ).
  12. Give the new navigation anti-theft code to the client.
