Headlight Replacement

  1. Remove the parts shown.
  2. Remove the four bolts (A), and pull the headlight (B) out slightly.

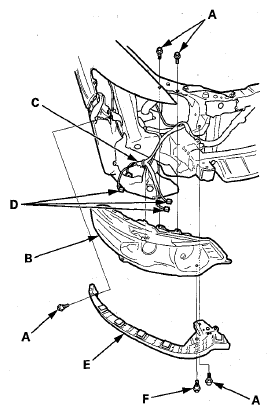

    Fig 1: Identifying Headlight (B) And Bolts (A)
    G07770499Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the harness clip (C) from the headlight housing, and disconnect the connectors (D) from the bulb sockets.
  4. Remove the headlight with the corner upper beam (E).
    NOTE: Be careful not to scratch the headlight lens and the fender.
  5. Remove the bolt (F) and the corner upper beam from the headlight.
  6. Install the headlight in the reverse order of removal.
  7. After replacement, adjust the headlights (see HEADLIGHT ADJUSTMENT ).
