Headlight Adjustment

Before adjusting the headlights:

• Park the vehicle on a level surface.
• Make sure the tire pressures are correct.
• The driver or someone who weighs the same should sit in the driver's seat.

1. Clean the outer lens so that you can see the center (A) of the headlights.
   Fig 1: Identifying Headlights Center (A)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Park the vehicle in front of a wall or a screen (A).
   Fig 2: Identifying Wall Or A Screen (A)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Turn the low beams on.
4. Determine if the headlights are aimed properly.

   Vertical adjustment:

   Measure the height of the headlights.

   Adjust the upper edge of cut line (B) to the headlight's height (A).

   Fig 3: Identifying Upper Edge Of Cut Line (B) And Headlight's Height (A)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. If necessary, open the hood and adjust the headlights by turning the vertical adjuster (A).
   NOTE: The R and L adjusters are not applicable for USA models.

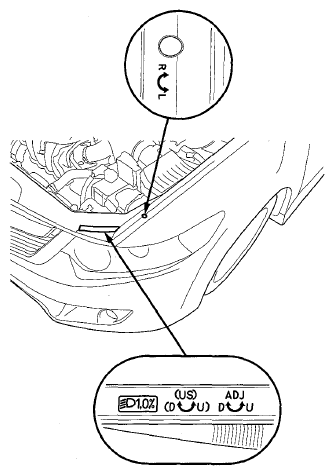

   Fig 4: Identifying R And L Adjusters

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   With HID

   Fig 5: Identifying Vertical Adjuster (A) (With HID)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   Without HID

   Fig 6: Identifying Vertical Adjuster (A) (Without HID)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
