BSI Radar Unit Mounting Area Check

Required materials:

• Masking tape
• Plumb line
• Scale

Before checking:

• Make sure the vehicle does not have aftermarket suspension.
• Make sure all the tires are the correct size, and set their pressures to the specifications shown on the doorjamb label.
• Make sure the fuel tank is full.
• Remove all cargo from the vehicle except the spare tire and tool kit.
• Park the vehicle on level ground (within 1 degree). Do not do this procedure with the vehicle on a lift or with the tires on steel plates or rollers.
• Make sure the steering wheel is pointed straight ahead, and do not turn it after parking the vehicle.
• Shift the transmission into P, and apply the parking brake.

1. Remove the rear bumper (see FRONT BUMPER SKID TRIM REPLACEMENT ).
2. Remove the BSI radar unit(s)
   NOTE: Make sure to remove BSI radar unit when repairing body.
3. Install the indicated length 6 mm bolt listed below in the appropriate BSI radar unit mounting holes.

   HOLE A: 65-70 mm (2.56-2.76 in)

   HOLE B: 45-50 mm (1.77-1.97 in)

   HOLE C: 55-60 mm (2.17-2.36 in)

4. Hold or tape the plumb line against the rear quarter panel directly above mounting hole A, and the thread bolt in or out until the head of the bolt just touches the plumb line.
5. Measure the distance from the head to the end of the threaded insert in the quarter panel. If needed, have a body shop adjust the body panel.

   HOLE A: 56.6±3 mm (2.228±0.118 in)

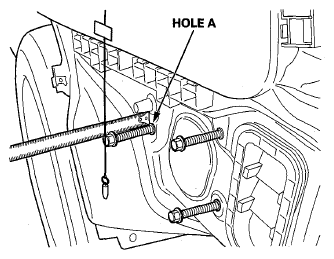

   Fig 1: Measuring Distance From Head To End Of Threaded Insert In Quarter Panel

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
   NOTE: The illustration shows the left side.
6. Hold or tape the plumb line against the rear quarter panel directly above mounting hole B, and the thread bolt in or out until the head of the bolt just touches the plumb line.
7. Measure the distance from the head to the end of the threaded insert in the quarter panel. If needed, have a body shop adjust the body panel.

   HOLE B: HOLE A-16±2 mm (0.63±0.079 in)

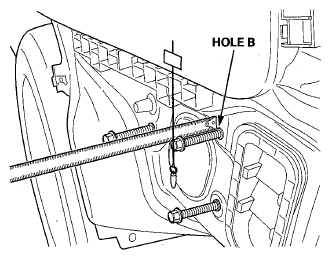

   Fig 2: Measuring Distance From Head To End Of Threaded Insert In Quarter Panel

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
   NOTE: The illustration shows the left side.
8. Hold or tape the plumb line against the rear quarter panel directly above mounting hole C, and the thread bolt in or out until the head of the bolt just touches the plumb line.
9. Measure the distance from the head to the end of the threaded insert in the quarter panel. If needed, have a body shop adjust the body panel.

   HOLE C: HOLE B+8±2 mm (0.315±0.079 in)

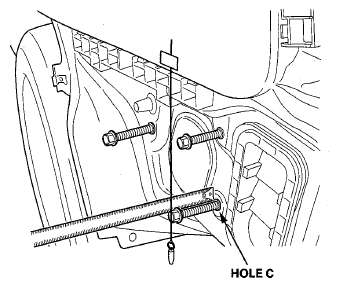

   Fig 3: Measuring Distance From Head To End Of Threaded Insert In Quarter Panel

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
   NOTE: The illustration shows the left side.
10. Install BSI radar unit, and do the BSI radar unit aiming inspection
11. Reinstall the remaining parts.
