Front Bumper Skid Trim Replacement

Special Tools Required

KTC Trim Tool Set SOJATP2014*

* Available through the Acura Tool and Equipment Program, 888-424-6857

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the front bumper
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
Remove all of the screws. Pry all of the hooks (A) up with a trim tool, then remove the front bumper skid trim (B) from the front bumper (C).

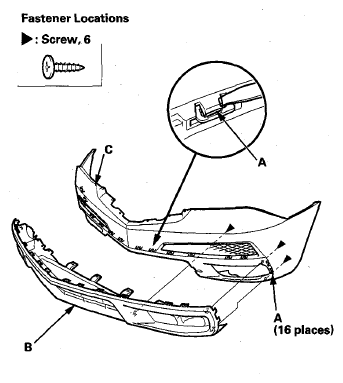

Fig 1: Identifying Front Bumper Skid Trim, Front Bumper And Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the trim in the reverse order of removal, and push the hooks into place securely.
