BSI Radar Unit Removal/Installation

  1. Remove the rear bumper (see FRONT BUMPER SKID TRIM REPLACEMENT ).
  2. Disconnect the 6P connector (A) from the BSI radar unit(B).
    Fig 1: Identifying 6P Connector And Radar Unit
    G08055736Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts and the BSI radar unit.
  4. Clean the surface of the BSI radar unit.

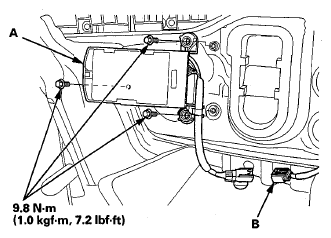

  5. Install the BSI radar unit (A) with the bolts.
    Fig 2: Identifying BSI Radar Unit And 6P Connector
    G08055737Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Connect the 6P connector (B) to the BSI radar unit.
  7. Inspect the BSI radar unit aiming
