Glove Box Removal/Installation

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the Acura Tool and Equipment Program, call 888-424-6857

1. Remove these items
   • Passenger's dashboard trim (see PASSENGER'S DASHBOARD TRIM REMOVAL/INSTALLATION )
   • Passenger's dashboard undercover (see Passenger's Dashboard Undercover Removal/Installation )
2. Remove the bolts (A) and the screws (B)

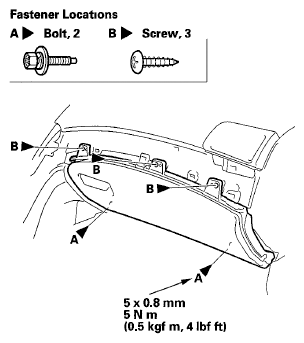

   Fig 1: Passenger's Dashboard Trim Clip Location With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Remove the glove box (A).
   1. Pull the glove box (A) by hand to detach the clips
   2. Disconnect the glove box light bulb (B), the trunk lid opener main switch connector (C), and the keyless access system mode switch connector (D) (for some models
   Fig 2: Identifying Glove Box Components
   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install the glove box in the reverse order of removal, and note these items
   • If the clips are damaged or stress-whitened, replace them with new ones
   • Make sure each connector is plugged in properly
   • Push the clips into place securely
