Driver's Under-dash Fuse/Relay Box

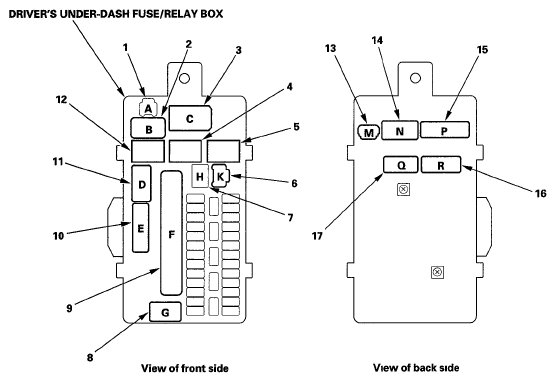

DRIVER'S UNDER-DASH FUSE/RELAY BOX CONNECTOR TERMINAL REFERENCE
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| A | 1 | - | Not used | |
| B | 2 | 2 | Dashboard wire harness (View of driver's side) (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | |
| C | 3 | 5 | Dashboard wire harness (View of driver's side) (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | |
| D | 11 | 16 | Left side wire harness (see LEFT SIDE WIRE HARNESS ) | |
| E | 10 | 20 | Left side wire harness (see LEFT SIDE WIRE HARNESS ) | |
| F | 9 | 33 | Left engine compartment wire harness (Dashboard branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) ) | |
| Front accessory power socket relay | 4 | 4 | ||
| G | 8 | 13 | Left engine compartment wire harness (Dashboard branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) ) | |
| H (optional connector) | 7 | 10 | ||
| K (MICU service check connector) | 6 | 2 | ||
| M | 13 | 2 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | |
| N | 14 | 16 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | |
| P | 15 | 20 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | |
| PGM-FI main relay 2 (FUEL PUMP) | 12 | 4 | ||
| Q | 17 | 20 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | |
| R | 16 | 24 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | |
| Starter cut relay | 5 | 4 |
