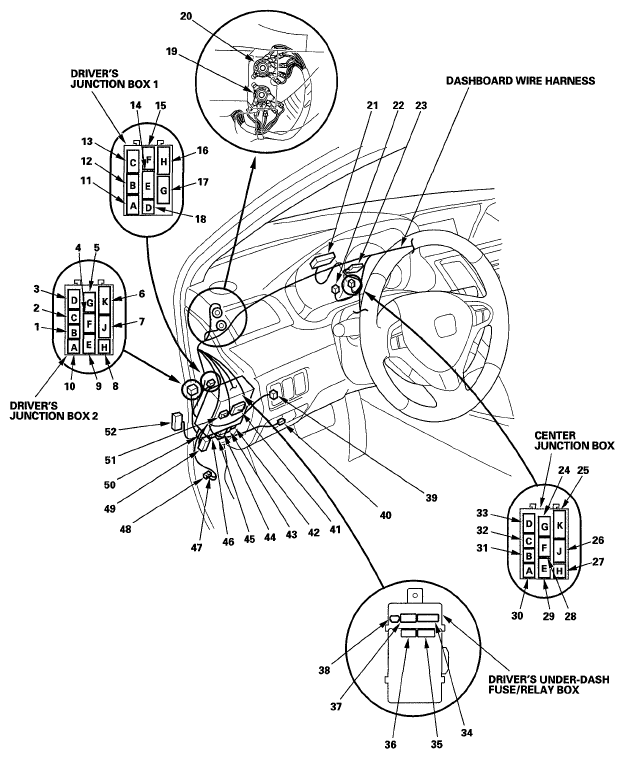

Dashboard Wire Harness (View of driver's side)
DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) - CONNECTOR TO HARNESS INDEX
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Center junction box connector A | 30 | 4 | Under middle of dash | ||
| Center junction box connector B | 31 | 4 | Under middle of dash | ||
| Center junction box connector C | 32 | 4 | Under middle of dash | ||
| Center junction box connector D | 33 | 6 | Under middle of dash | ||
| Center junction box connector E | 29 | 6 | Under middle of dash | ||
| Center junction box connector F | 28 | 6 | Under middle of dash | ||
| Center junction box connector G | 24 | 6 | Under middle of dash | ||
| Center junction box connector H | 27 | 4 | Under middle of dash | ||
| Center junction box connector J | 26 | 8 | Under middle of dash | ||
| Center junction box connector K | 25 | 10 | Under middle of dash | ||
| Console accessory power socket relay | 22 | 4 | Behind gauge | ||
| Data link connector (DLC) | 49 | 16 | Under left side of dash | ||
| Driver's footwell light | 40 | 2 | Under left side of dash | ||
| Driver's junction box 1 connector A | 11 | 6 | Under left side of dash | ||
| Driver's junction box 1 connector B | 12 | 6 | Under left side of dash | ||
| Driver's junction box 1 connector C | 13 | 8 | Under left side of dash | ||
| Driver's junction box 1 connector D | 18 | 4 | Under left side of dash | ||
| Driver's junction box 1 connector E | 14 | 10 | Under left side of dash | ||
| Driver's junction box 1 connector F | 15 | 8 | Under left side of dash | ||
| Driver's junction box 1 connector G | 17 | 10 | Under left side of dash | ||
| Driver's junction box 1 connector H | 16 | 10 | Under left side of dash | ||
| Driver's junction box 2 connector A | 10 | 4 | Under left side of dash | ||
| Driver's junction box 2 connector B | 1 | 4 | Under left side of dash | ||
| Driver's junction box 2 connector C | 2 | 4 | Under left side of dash | ||
| Driver's junction box 2 connector D | 3 | 6 | Under left side of dash | ||
| Driver's junction box 2 connector E | 9 | 6 | Under left side of dash | ||
| Driver's junction box 2 connector F | 4 | 6 | Under left side of dash | ||
| Driver's junction box 2 connector G | 5 | 6 | Under left side of dash | ||
| Driver's junction box 2 connector H | 8 | 4 | Under left side of dash | ||
| Driver's junction box 2 connector J | 7 | 8 | Under left side of dash | ||
| Driver's junction box 2 connector K | 6 | 10 | Under left side of dash | ||
| Driver's under-dash fuse/relay box connector B (see DRIVER'S UNDER-DASH FUSE/RELAY BOX ) | 51 | 2 | Under left side of dash | ||
| Driver's under-dash fuse/relay box connector C (see DRIVER'S UNDER-DASH FUSE/RELAY BOX ) | 41 | 5 | Under left side of dash | ||
| Driver's under-dash fuse/relay box connector M (see DRIVER'S UNDER-DASH FUSE/RELAY BOX ) | 38 | 4 | Under left side of dash | ||
| Driver's under-dash fuse/relay box connector N (see DRIVER'S UNDER-DASH FUSE/RELAY BOX ) | 37 | 16 | Under left side of dash | ||
| Driver's under-dash fuse/relay box connector P (see DRIVER'S UNDER-DASH FUSE/RELAY BOX ) | 34 | 20 | Under left side of dash | ||
| Driver's under-dash fuse/relay box connector Q (see DRIVER'S UNDER-DASH FUSE/RELAY BOX ) | 36 | 20 | Under left side of dash | Driver's MICU | |
| Driver's under-dash fuse/relay box connector R (see DRIVER'S UNDER-DASH FUSE/RELAY BOX ) | 35 | 24 | Under left side of dash | Driver's MICU | |
| Gauge control module | 21 | 32 | Behind gauge | ||
| TPMS control unit | 23 | 20 | Behind gauge | ||
| VSA OFF switch | 39 | 5 | Left side of dashboard | ||
| C301 | 43 | 24 | Under left side of dash | Left engine compartment wire harness (Dashboard branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) ) | |
| C302 | 45 | 2 | Under left side of dash | Left engine compartment wire harness (Dashboard branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) ) | |
| C303 | 42 | 4 | Under left side of dash | Left engine compartment wire harness (Dashboard branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) ) | |
| C304 | 44 | 13 | Under left side of dash | Left engine compartment wire harness (Dashboard branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) ) | |
| C501 | 46 | 20 | Under left side of dash | Roof wire harness (see ROOF WIRE HARNESS ) | |
| C502 | 50 | 8 | Under left side of dash | Roof wire harness (see ROOF WIRE HARNESS ) | |
| C601 | 48 | 23 | Under left side of dash | Left side wire harness (see LEFT SIDE WIRE HARNESS ) | |
| C602 | 47 | 16 | Under left side of dash | Left side wire harness (see LEFT SIDE WIRE HARNESS ) | |
| C751 | 52 | 28 | Under left side of dash | Driver's door wire harness (see DRIVER'S DOOR WIRE HARNESS ) | |
| G501 | 20 | Under left side of dash | Body ground, via dashboard wire harness | ||
| G502 | 19 | Under left side of dash | Body ground, via dashboard wire harness |
