With Premium Audio System

SRS components are located in this area Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service

NOTE:

Put on gloves to protect your hands
Take care not to scratch the dashboard and related parts
Lay a shop towel under the parts when working on them to protect the face panel from scratches or other damage
Eject all the discs before remove the audio unit to prevent damaging the CD/DVD player's load mechanism
If you are replacing the audio unit, write down the audio presets (if possible), then enter them into the new audio unit

Make sure you have the anti-theft codes for the audio system
Remove the driver's center trim (see CENTER TRIM REMOVAL/INSTALLATION ) and passenger's dashboard trim (see PASSENGER'S DASHBOARD TRIM REMOVAL/INSTALLATION )
Remove the passenger's center trim (see CENTER TRIM REMOVAL/INSTALLATION ) and center console panel (see CENTER CONSOLE PANEL REMOVAL/INSTALLATION )
Remove the climate control unit (see CLIMATE CONTROL UNIT REMOVAL/INSTALLATION ), and center pocket (see CENTER POCKET REMOVAL/INSTALLATION )
Remove the bolts, then pull out the audio unit (A)

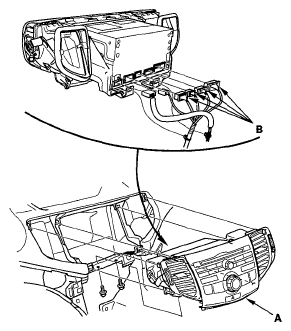

Fig 1: Identifying Audio Unit And Connectors With Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connectors (B), then remove the audio unit
Remove the dashboard center vent (see DASHBOARD CENTER VENT REMOVAL/INSTALLATION )
Remove the mounting screws and bolts from the audio unit (A), then remove the audio unit from the audio switch panel (B)

Fig 2: Identifying Audio Unit And Audio Switch Panel With Mounting Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the audio unit in the reverse order of removal, and note these items
- Make sure all the connectors and the antenna lead are secure
- Enter the anti-theft codes for the audio system
Give the new anti-theft codes to the client if the audio unit is replaced
