Cylinder Head Removal

NOTE:
  • Use fender covers to avoid damaging painted surfaces.
  • To avoid damaging the wires and terminals, unplug the wiring connectors carefully while holding the connector portion.
  • To avoid damaging the cylinder head, wait until the engine coolant temperature drops below 100°F (38°C) before loosening the cylinder head bolts.
  • Mark all wiring and hoses to avoid misconnection. Also, be sure that they do not contact other wiring or hoses, or interfere with other parts.
  1. Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).
  2. Drain the engine coolant, '04-05 models (see '04-05 MODELS ), '06-08 models (see '06-08 MODELS ).
  3. Remove the drive belt (see DRIVE BELT REPLACEMENT ).
  4. Disconnect the intake air temperature (IAT) sensor connector (A).
    Fig 1: Identifying Intake Air Temperature Sensor Connector Vacuum Hose And Breather Pipe
    G05490108Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Disconnect the vacuum hose (B) and breather pipe (C), then remove the air intake duct (D).
  6. Remove the quick-connect fitting cover (A), then disconnect the fuel feed hose (B) (see FUEL LINE/QUICK-CONNECT FITTING REMOVAL ).
    Fig 2: Identifying Quick-Connect Fitting Cover And Fuel Feed Hose
    G05490109Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the intake manifold, '04-05 models (see REMOVAL ('04-05 MODELS) ) or '06-08 models (see REMOVAL ('06-08 MODELS) ).
  8. Remove the exhaust manifold (see EXHAUST MANIFOLD REMOVAL AND INSTALLATION ).
  9. Remove the bolt (A) securing the connecting pipe.
    Fig 3: Identifying Connecting Pipe Bolt
    G05490110Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Disconnect the water bypass hose (B).
  11. Disconnect the evaporative emission (EVAP) canister hose (A) and brake booster vacuum hose (B).
    Fig 4: Identifying Evaporative Emission Canister Hose And Brake Booster Vacuum Hose
    G05490111Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Disconnect the positive crankcase ventilation (PCV) hose (A) and remove the ground cable (B).
    Fig 5: Identifying Positive Crankcase Ventilation Hose And Ground Cable
    G05490112Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Remove the upper radiator hose (A) and heater hoses (B).
    Fig 6: Identifying Upper Radiator Hose And Heater Hoses
    G05490113Courtesy of AMERICAN HONDA MOTOR CO., INC.
  14. Remove the engine wire harness connectors and wire harness clamps from the cylinder head.
    • Four injector connectors
    • Engine coolant temperature (ECT) sensor connector ('04-05 models)
    • Engine coolant temperature (ECT) sensor 1 connector ('06-08 models)
    • Camshaft position (CMP) sensor A/B connectors
    • Rocker arm oil control solenoid (VTEC solenoid valve) connector
    • Rocker arm oil pressure switch (VTEC oil pressure switch) connector

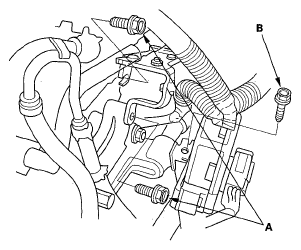

  15. Remove the two bolts (A) securing the EVAP canister purge valve bracket and remove the bolt (B) securing the harness bracket.
    Fig 7: Identifying EVAP Canister Purge Valve Bracket And Bolts
    G05490114Courtesy of AMERICAN HONDA MOTOR CO., INC.
  16. Remove the cam chain (see CAM CHAIN REMOVAL  ).
  17. Remove the rocker arm assembly (see ROCKER ARM ASSEMBLY REMOVAL  ).
  18. Remove the cylinder head bolts. To prevent warpage, loosen the bolts in sequence 1/3 turn at a time, repeat the sequence until all bolts are loosened.
    Fig 8: Identifying Cylinder Head Bolts In Sequence
    G05490115Courtesy of AMERICAN HONDA MOTOR CO., INC.
  19. Remove the cylinder head.
