Cam Chain Installation

Special Tools Required

Camshaft lock pin set 07AAB-RWCA120

NOTE:
  • Keep the cam chain away from magnetic fields.
  • Before this procedure, check that the variable valve timing control (VTC) actuator is locked by turning the VTC actuator counterclockwise. If not locked, turn the VTC actuator clockwise until it stops, then recheck it. If it is still not locked, replace the VTC actuator.
  1. Set the crankshaft to top dead center (TDC). Align the TDC mark (A) on the crankshaft sprocket with the pointer (B) on the engine block.
    Fig 1: Aligning TDC Mark On Crankshaft Sprocket With Pointer On Engine Block
    G05490069Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Set the camshafts to TDC. The punch mark (A) on the VTC actuator and the punch mark (B) on the exhaust camshaft sprocket should be at the top. Align the TDC marks (C) on the VTC actuator and exhaust camshaft sprocket.
    Fig 2: Aligning Punch Mark On VTC Actuator And Exhaust Camshaft Sprocket
    G05490070Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. To hold the intake camshaft, insert one of the pins (C) from the camshaft lock pin set into the maintenance hole in the camshaft position (CMP) pulse plate A and through the hole in the No. 5 rocker shaft holder (D).
    Fig 3: Identifying Camshaft Lock Pin Set And Pulse Plate
    G05490071Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. To hold the exhaust camshaft, insert the other pin from the camshaft lock pin set into the maintenance hole in the camshaft position (CMP) pulse plate B and through the hole in the No. 5 rocker shaft holder.
  5. Install the cam chain on the crankshaft sprocket with the colored link plate (A) aligned with the mark (B) on the crankshaft sprocket.
    Fig 4: Aligning Colored Link Plate With Mark On Crankshaft Sprocket
    G05490072Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the cam chain on the VTC actuator and the exhaust camshaft sprocket with the punch marks (A) aligned with the center of the two colored link plates (B).
    Fig 5: Identifying Cam Chain On VTC Actuator And Exhaust Camshaft Sprocket
    G05490073Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Install the cam chain guide A and the tensioner arm (B).

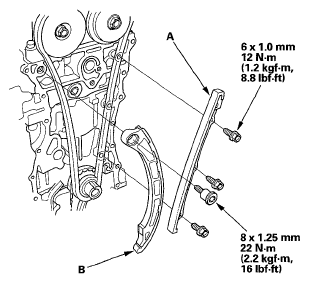

    Fig 6: Cam Chain Guide And Tensioner Arm W/Torque Specification
    G05490074Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install the auto-tensioner.
    Fig 7: Auto-Tensioner W/Torque Specification
    G05490075Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Install cam chain guide B.
    Fig 8: Cam Chain Guide W/Torque Specification
    G05490076Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Remove the pin or lock pin (P/N 14511-PNA-000) from the auto-tensioner.
    Fig 9: Identifying Lock Pin
    G05490077Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Remove the camshaft lock pin set (P/N 07AAB-RWCA120).
    Fig 10: Identifying Camshaft Lock Pin Set
    G05490078Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Install the crankshaft position (CKP) pulse plate.
    Fig 11: Identifying Crankshaft Position (CKP) Pulse Plate
    G05490079Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Check the chain case oil seal for damage. If the oil seal is damaged, replace the chain case oil seal (see CHAIN CASE OIL SEAL INSTALLATION  ).
  14. Remove all of the old liquid gasket from the chain case mating surfaces, bolts, and bolt holes.
  15. Clean and dry the chain case mating surfaces.
  16. Apply liquid gasket, P/N 08717-0004,08718-0001, 08718-0003, or 08718-0009, evenly to the engine block mating surface of the chain case.

    Install the component within 5 minutes of applying the liquid gasket.

    NOTE:
    • If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes.
    • If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.
      Fig 12: Applying Liquid Gasket To Engine Block Mating Surface
      G05490080Courtesy of AMERICAN HONDA MOTOR CO., INC.
  17. Apply liquid gasket to the engine block upper surface contact areas (A) on the chain case and lower block upper surface contact areas (B) on the chain case.
  18. Apply liquid gasket, P/N 08717-0004,08718-0001, 08717-0003, or 08718-0009, evenly to the oil pan mating surface of the chain case.

    Install the component within 5 minutes of applying the liquid gasket.

    NOTE:
    • If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes.
    • If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.
      Fig 13: Applying Liquid Gasket To Oil Pan Mating Surface
      G05490081Courtesy of AMERICAN HONDA MOTOR CO., INC.
  19. Install the new O-ring (A) on the chain case. Set the edge of the chain case (B) to the edge of the oil pan (C), then install the chain case on the engine block (D). Wipe off all of the excess liquid gasket on the oil pan and chain case mating surface.
    NOTE:
    • When installing the chain case, do not slide the bottom surface on the oil pan mounting surface.
    • Wait at least 30 minutes before filling the engine with oil.
    • Do not run the engine within 3 hours after installing the chain case.

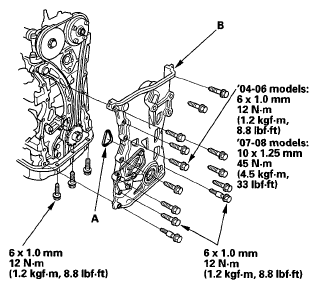

      Fig 14: Chain Case W/Torque Specification
      G05490082Courtesy of AMERICAN HONDA MOTOR CO., INC.
      Fig 15: Identifying Engine Block
      G05490083Courtesy of AMERICAN HONDA MOTOR CO., INC.
  20. Install the side engine mount bracket.
    Fig 16: Side Engine Mount Bracket With Torque Specification
    G05490084Courtesy of AMERICAN HONDA MOTOR CO., INC.
  21. Install the upper bracket (A), then tighten the bolts in the sequence shown.
    Fig 17: Tightening Upper Bracket Bolts In Sequence W/Torque Specifications
    G05490085Courtesy of AMERICAN HONDA MOTOR CO., INC.
  22. Install the ground cable (B).
  23. Install the VTC oil control solenoid valve (see VTC OIL CONTROL SOLENOID VALVE REMOVAL/TEST/INSTALLATION ).
  24. Connect the CKP sensor connector (A) and VTC oil control solenoid valve connector (B).
    Fig 18: Identifying Crankshaft Position Sensor Connector And VTC Oil Control Solenoid Valve Connector
    G05490086Courtesy of AMERICAN HONDA MOTOR CO., INC.
  25. Install the crankshaft pulley (see INSTALLATION  ).
  26. Install the cylinder head cover (see CYLINDER HEAD COVER INSTALLATION  ).
  27. Install the drive belt (see DRIVE BELT REPLACEMENT ).
  28. Install the splash shield (see step 25 on TRANSMISSION INSTALLATION ).
  29. Install the front wheels.
  30. Do the CKP pattern clear/CKP learn procedure (see CRANK (CKP) PATTERN CLEAR/CRANK (CKP) PATTERN LEARN ).
