Frame and Drain Tube Replacement

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

1. Remove these items:
   • Headliner (see HEADLINER REMOVAL/INSTALLATION )
   • Moonroof glass (see GLASS REPLACEMENT  )

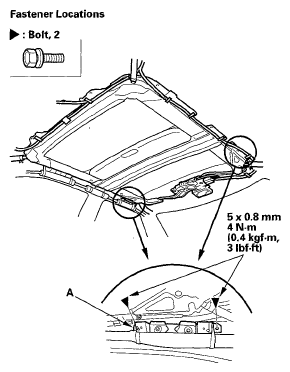

2. Remove the bolts securing both rear grab handle brackets (A), then release them from the body. Do not pull the bracket with the airbag excessively. Take care not to damage the airbag.
   Fig 1: Removing Bolts Securing Both Rear Grab Handle Brackets W/Torque Specification

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Put on gloves to protect your hands. Disconnect the motor connector (A), open/close-tilt/close switch connector (B), and remove the moonroof relays (C).
   Fig 2: Removing Moonroof Relays

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Disconnect the drain tubes (A).
   Fig 3: Identifying Drain Tubes

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Remove the roof harness (B) by detaching the harness clips (C) and removing the tape (D).
6. With an assistant holding the frame (A), remove the bolts, starting at the rear, and release the rear hooks (B) by moving the frame forward.
   Fig 4: Releasing Rear Hooks W/Torque Specification

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. With the help of an assistant, move the frame (A) to the left or right, then lower the opposite side of rear grab handle down. If equipped, keep the rear grab handle bracket (B) away from the frame while lowering the frame. Take care not to hang the frame on the bracket.
   Fig 5: Identifying Rear Grab Handle Bracket And Frame

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. With the help of an assistant, carefully remove the frame through the front door opening. Take care not to scratch the roof trim and body, or tear the seat covers.
9. To remove a front drain valve (A) from the body, remove the kick panel, left or right (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ). Tie a string to the top end of the drain tube, then pull the front drain tube (B) down out of the A-pillar leaving the string inside the pillar.
   Fig 6: Removing Front Drain Valve From Body

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
10. To remove a rear drain valve (A) from the body, remove these parts:
    • Spare tire lid (see TRIM REMOVAL/INSTALLATION - TRUNK AREA )
    • Trunk rear trim panel (see TRIM REMOVAL/INSTALLATION - TRUNK AREA )

    Tie a string to the top end of the rear drain tube (B), then pull back the trunk side trim panel and pull the drain tube down out of the pillar leaving the string inside the pillar.

    Fig 7: Removing Rear Drain Valve From Body

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
11. Install the frame and drain tube in the reverse order of removal, and note these items:
    • Before installing the frame, clear the drain tubes and drain valves using compressed air.
    • When installing, tie the string to the top end of the new drain tube and pull it up into the roof.
    • Check the frame seal.
    • Clean the surface of the frame.
    • When installing the frame, first attach the rear hooks into the body holes.
    • Make sure the connectors are plugged in properly.
    • When connecting the drain tube, slide it over the frame nozzle at least 10 mm (0.39 in.).
    • Install the tube clip (A) on the drain tube (B) as shown.
      Fig 8: Installing Tube Clip On Drain Tube

      Courtesy of AMERICAN HONDA MOTOR CO., INC.
12. Check for water leaks. Let the water run freely from a hose without a nozzle. Do not use a high-pressure spray.
