Component Location Index

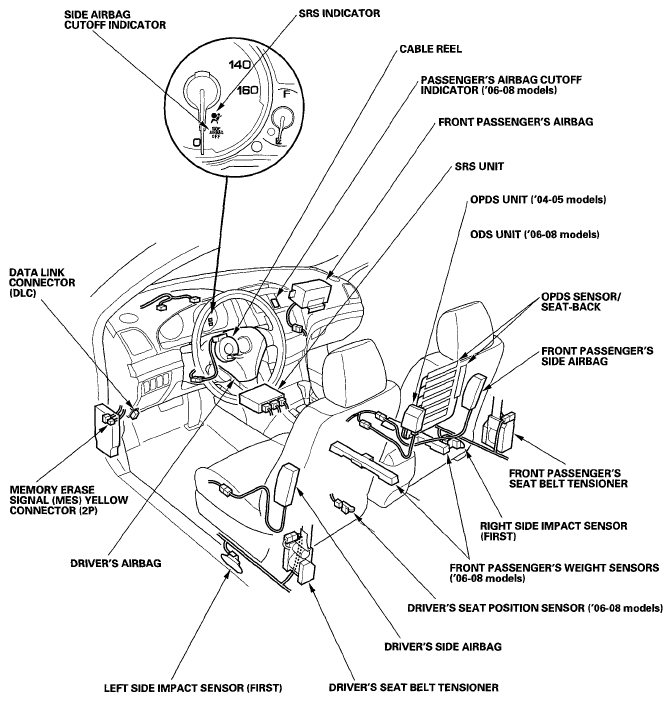

Fig 1: Identifying Supplemental Restraint System Component Location (1 Of 2)
G05489505Courtesy of AMERICAN HONDA MOTOR CO., INC.

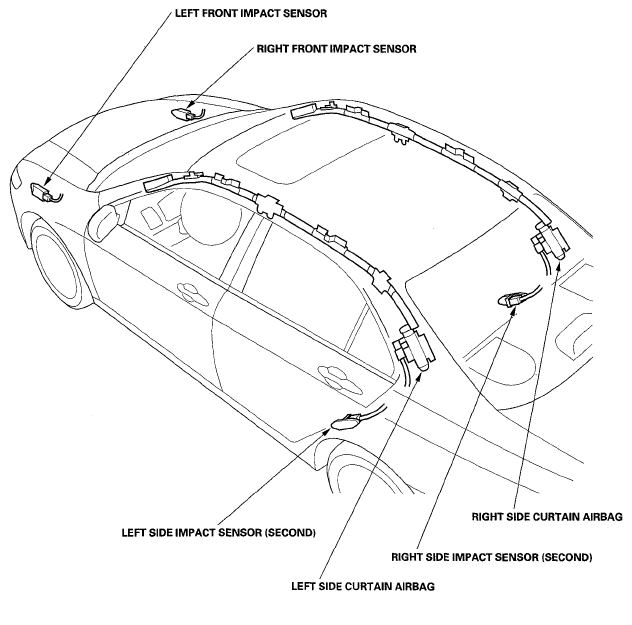

Fig 2: Identifying Supplemental Restraint System Component Location (2 Of 2)
G05489506Courtesy of AMERICAN HONDA MOTOR CO., INC.
