Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Follow instructions for lifting points body frame, refer to: JACKING POINTS BODY

Remove the right drive shaft, refer to: DRIVE SHAFT RIGHT

GLL177542

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

GLL1018980

Courtesy of VOLVO CARS CORPORATION

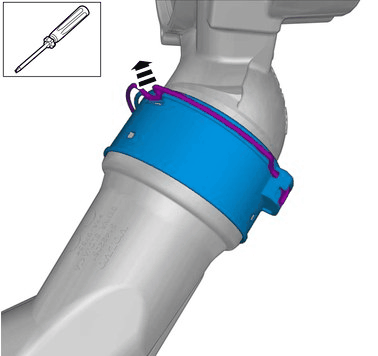

Release the catch.

Undo the hose from the connection.

GLL1009651

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the mating faces are clean and free of foreign material.

NOTE:

Make sure that the seal is correctly located.

GLL1008883

Courtesy of VOLVO CARS CORPORATION

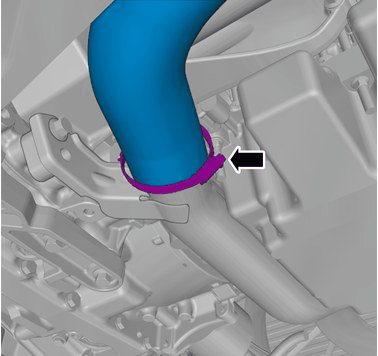

Loosen the hose clamp.

Remove the marked part.

GLL1038372

Courtesy of VOLVO CARS CORPORATION

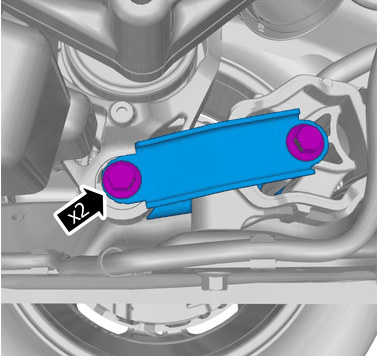

Remove the screws.

Remove the marked part.

Torque: Lower torque rod rear right, to Engine mount bracket, 110Nm

GLL1024882

Courtesy of VOLVO CARS CORPORATION

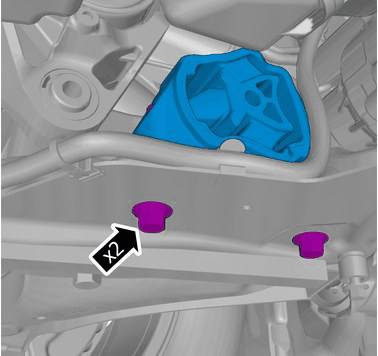

Remove the screws.

Remove the marked part.

Torque:Lower torque rod rear right, to subframe,

Stage 1: 90Nm
Stage 2: 80 °

GLL1019605

Courtesy of VOLVO CARS CORPORATION

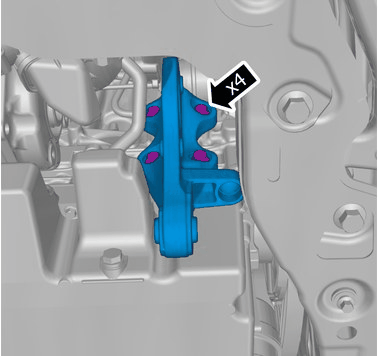

Torque:Drive shaft bearing bracket, to Engine,

Stage 1: 50Nm
Stage 2: 50°

GLL1024184

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

Special Tool: 999 5651

GLL1038187

Courtesy of VOLVO CARS CORPORATION

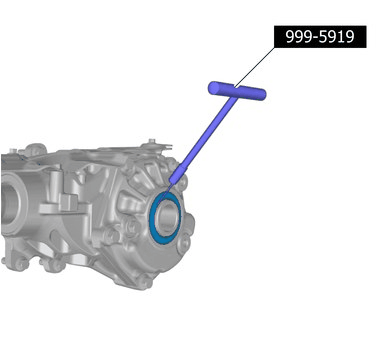

Special Tool: 999 5919

INSTALLATION

GLL1020512

Courtesy of VOLVO CARS CORPORATION

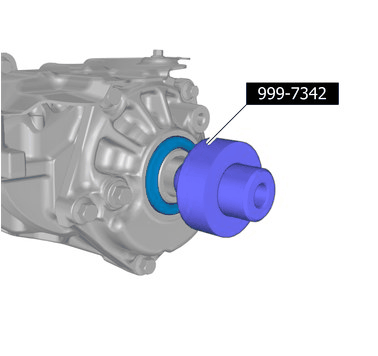

Special Tool: 999 7342

Use: Plastic mallet

GLL1023042

Courtesy of VOLVO CARS CORPORATION

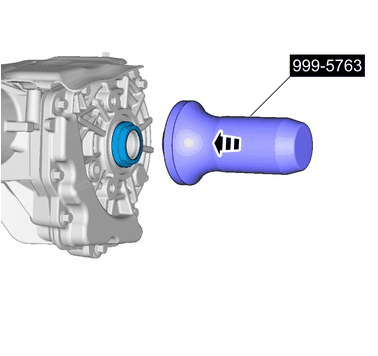

Special Tool: 999 5763

Use: Plastic mallet

INSTALLATION

To install, reverse the removal procedure.

Perform oil level bevel gear, check, refer to: OIL LEVEL BEVEL GEAR, CHECKING
