Transfer Case Seal RH [2017-2018, B4204T11, TG-81SC AWD]: Notes

NOTE: For information on Volvo color coded illustrations, refer to: IMAGES

SPECIAL TOOLS

Courtesy of VOLVO CARS CORPORATION	999 5651 Extractor (crankshaft rear seal) D5252T  Tool number:  999 5651 Tool description:  Extractor (crankshaft rear seal) D5252T Tool boards:  21
Courtesy of VOLVO CARS CORPORATION	999 5919 PULLER (SEAL-PINION, CAM-CRANKSHAFT) B200-6304  Tool number:  999 5919 Tool description:  PULLER (SEAL-PINION, CAM-CRANKSHAFT) B200-6304 Tool boards:  46

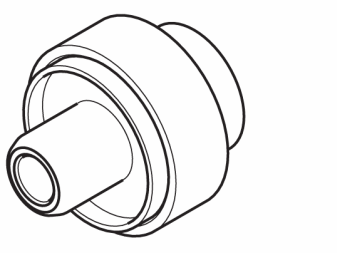

Courtesy of VOLVO CARS CORPORATION	999 7342 Drift  Tool number:  999 7342 Tool description:  Drift Tool boards:  43
Courtesy of VOLVO CARS CORPORATION	999 5763 Drift (installing/seal-primary shaft) GM4T65  Tool number:  999 5763 Tool description:  Drift (installing/seal-primary shaft) GM4T65 Tool boards:  43
