Front Strut And Spring Assembly [2016-2018]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove Front Strut and Spring Assembly, refer to: FRONT STRUT AND SPRING ASSEMBLY

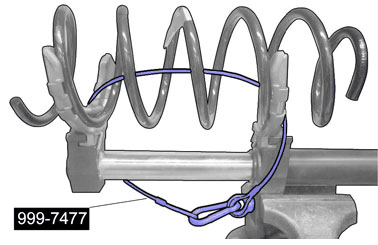

GLL1011817Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 7477

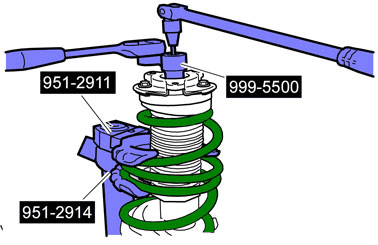

GLL155723Courtesy of VOLVO CARS CORPORATION

Torque:  Bearing front shock absorber to shock absorber, 50Nm

Special Tool: 999 5500  , Special Tool: 951 2911  and Special Tool: 951 2914

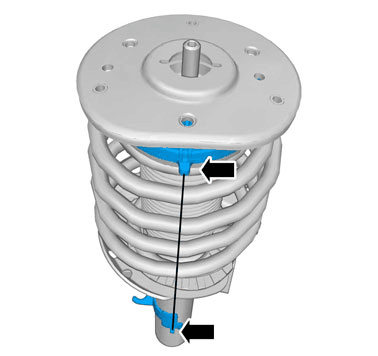

GLL164387Courtesy of VOLVO CARS CORPORATION
NOTE:

Note the position of each component before removal.

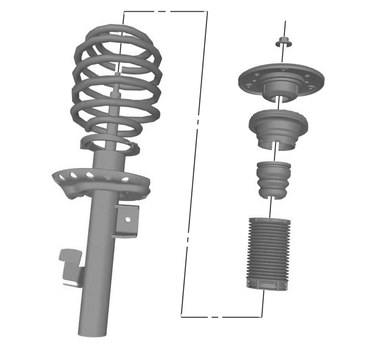

GLL155725Courtesy of VOLVO CARS CORPORATION
