Front Strut And Spring Assembly [2016-2018]: Notes

NOTE: For information on Volvo color coded illustrations, refer to: IMAGES

SPECIAL TOOLS

Courtesy of VOLVO CARS CORPORATION	999 7477 Wire  Tool number:  999 7477 Tool description:  Wire Tool boards:  70

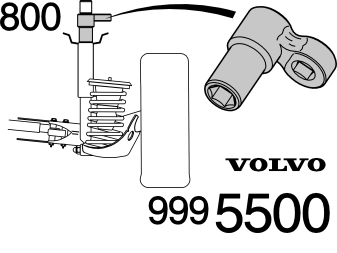

Courtesy of VOLVO CARS CORPORATION	999 5500 SOCKET UPPER NUT REAR SHOCK ABSORBER  Tool number:  999 5500 Tool description:  SOCKET UPPER NUT REAR SHOCK ABSORBER Tool boards:  70
Courtesy of VOLVO CARS CORPORATION	951 2911 Hydraulic piston  Tool number:  951 2911 Tool description:  Hydraulic piston Tool boards:  70

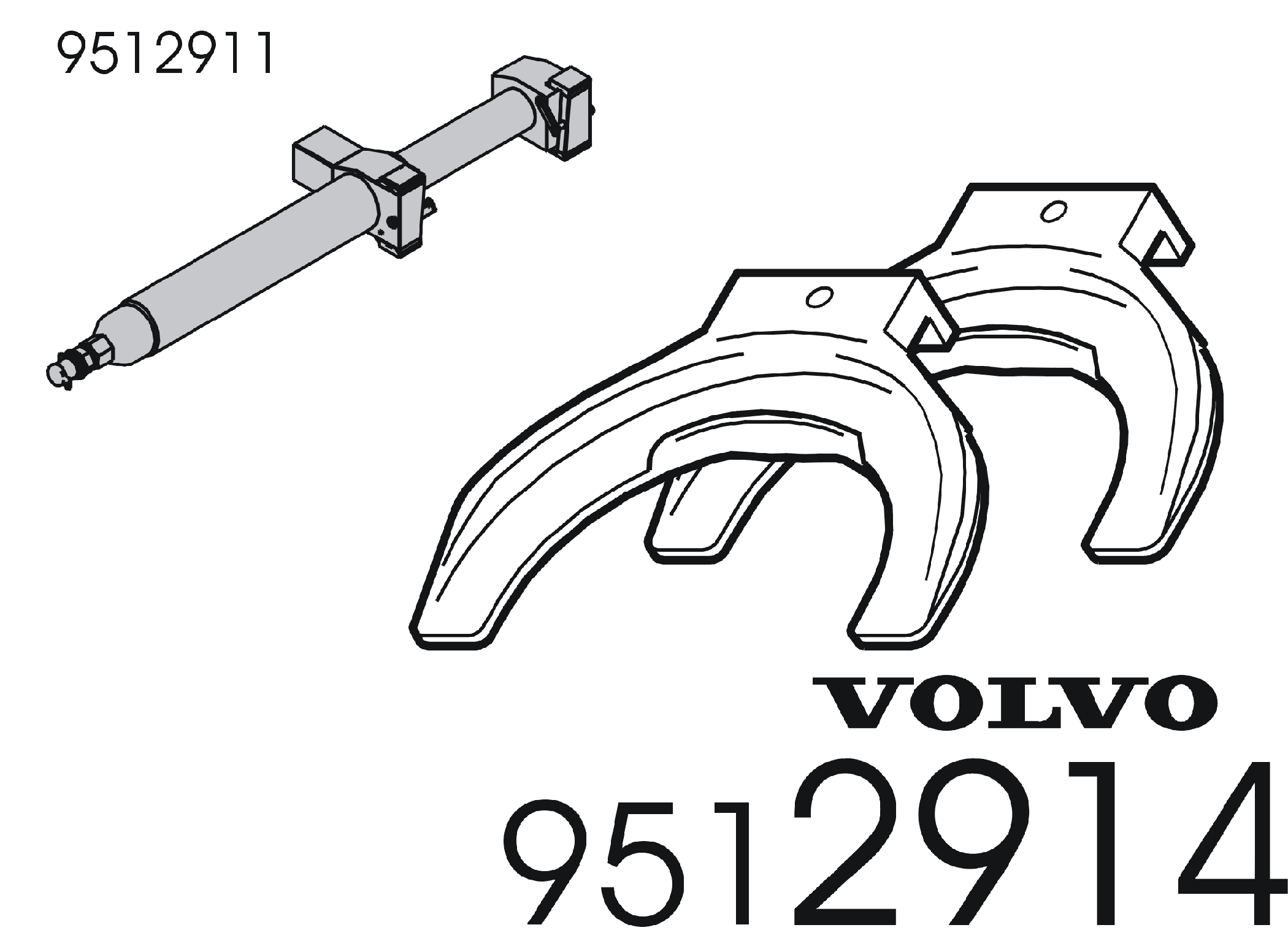

Courtesy of VOLVO CARS CORPORATION	951 2914 Claw (size 2, for hydraulic piston 9512911)  Tool number:  951 2914 Tool description:  Claw (size 2, for hydraulic piston 9512911) Tool boards:  70
