Cylinder Head [2016, B5254T12, TF-80SC AWD]: Installation

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the component.

CAUTION:

Make sure that the mating faces are clean and free of foreign material.

CAUTION:

Make sure that no fluids are present in the cylinder head bolt threaded bores.

Use: Abrasive cloth, 9511024

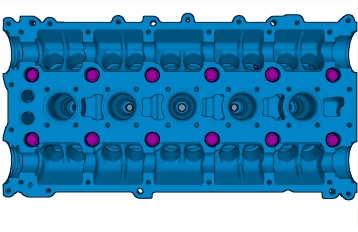

Courtesy of VOLVO CARS CORPORATION

Special Tool: 951 2050

Torque:Cylinder head,

Stage 1: 20Nm
Stage 2: 60Nm
Stage 3: 130°

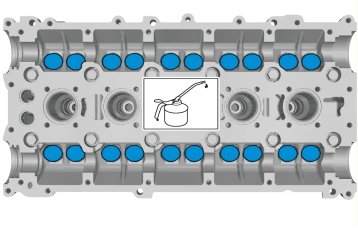

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Only use the specified lubricant.

NOTE:

Make sure that this component is installed to the noted removal position.

Use: Engine oil

NOTE:

This step is only necessary if adjustment is required

Perform valve clearance, refer to: VALVE CLEARANCE

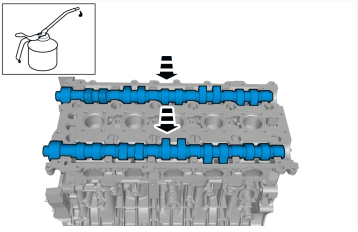

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Only use the specified lubricant.

NOTE:

Make sure that this component is installed to the noted removal position.

Use: Engine oil

Courtesy of VOLVO CARS CORPORATION

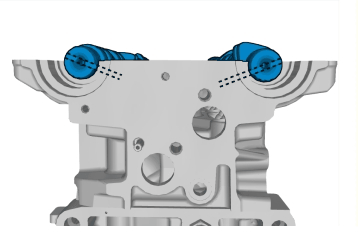

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Use: Abrasive cloth, 9511024

Special Tool: 951 2767

Use: Chemical gasket, 1161059

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the component.

Courtesy of VOLVO CARS CORPORATION

Torque: M7, 17Nm

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

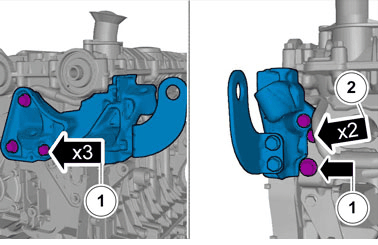

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Torque: M10, 50Nm
Torque: M8, 24Nm

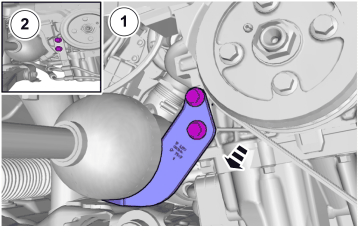

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Install the following items:

VVT unit, refer to: VVT UNIT
VVT solenoid, refer to: VVT SOLENOID
spark plugs, refer to: SPARK PLUGS
exhaust manifold, refer to: EXHAUST MANIFOLD
the intake manifold, refer to: INDUCTION PIPE

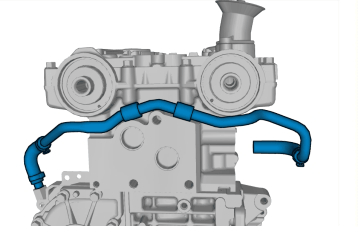

Courtesy of VOLVO CARS CORPORATION

Torque: M10, 50Nm

Perform cooling system draining, charging and bleeding, refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING
