Cylinder Head [2016, B5254T12, TF-80SC AWD]: Notes

NOTE: For information on Volvo color coded illustrations, refer to: IMAGES

SPECIAL TOOLS

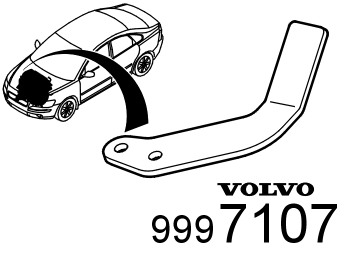

Courtesy of VOLVO CARS CORPORATION	999 7107 Support Tool number: 999 7107 Tool description: Support Tool boards: 21

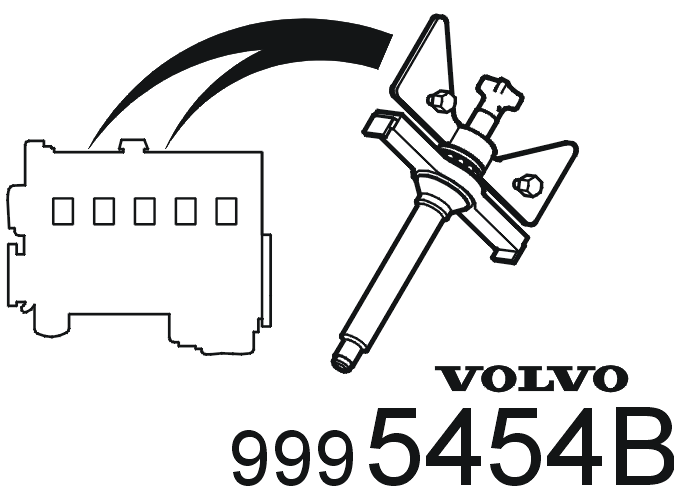

Courtesy of VOLVO CARS CORPORATION	999 5454 PRESS TOOL (2) (CYLINDER HEAD) B6304/B5254 Tool number: 999 5454 Tool description: PRESS TOOL (2) (CYLINDER HEAD) B6304/B5254 Tool boards: 21

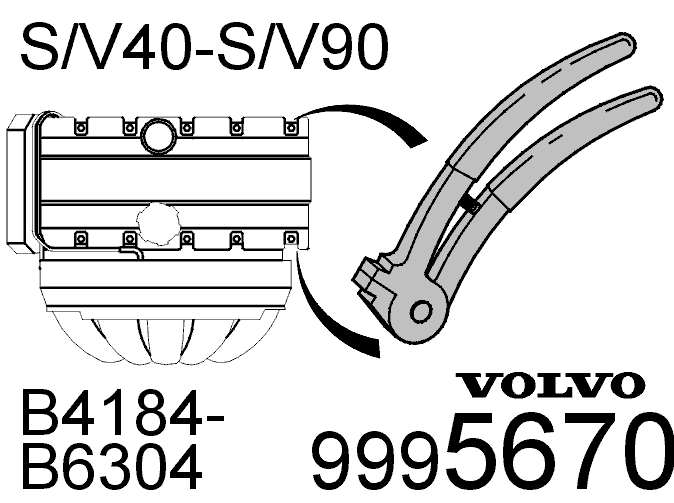

Courtesy of VOLVO CARS CORPORATION	999 5670 Pliers (removing valve/camshaft cover) B4184-B6304 Tool number: 999 5670 Tool description: Pliers (removing valve/camshaft cover) B4184-B6304 Tool boards: 21
Courtesy of VOLVO CARS CORPORATION	951 2050 BEVEL PROTRACTOR Tool number: 951 2050 Tool description: BEVEL PROTRACTOR Tool boards: 08
Courtesy of VOLVO CARS CORPORATION	951 2767 Roller (Applying liquid gasket) B234, 5234, 6304 Tool number: 951 2767 Tool description: Roller (Applying liquid gasket) B234, 5234, 6304 Tool boards: 08
