Cylinder Head [2016, B5254T12, TF-80SC AWD]: Removal

Perform cooling system draining, charging and bleeding, refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING

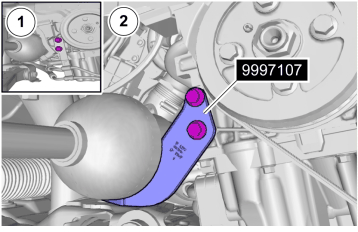

GLL168558

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 7107

Remove the following items:

spark plugs, refer to: SPARK PLUGS
VVT unit, refer to: VVT UNIT
VVT solenoid, refer to: VVT SOLENOID
exhaust manifold, refer to: EXHAUST MANIFOLD
the intake manifold, refer to: INDUCTION PIPE

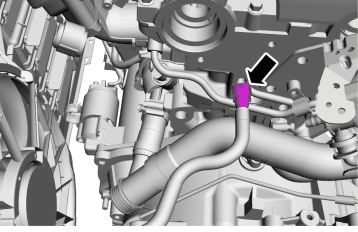

GLL155565

Courtesy of VOLVO CARS CORPORATION

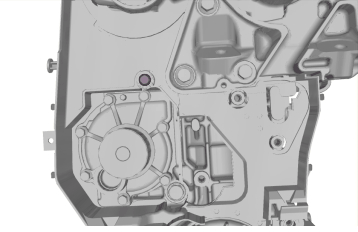

GLL168552

Courtesy of VOLVO CARS CORPORATION

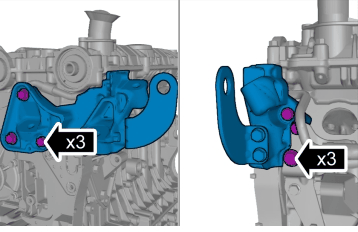

GLL168549

Courtesy of VOLVO CARS CORPORATION

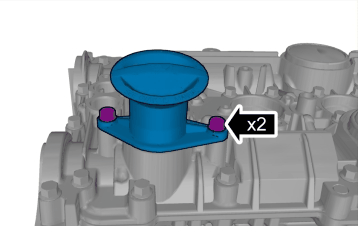

GLL168551

Courtesy of VOLVO CARS CORPORATION

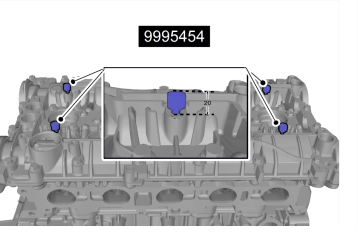

GLL168559

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 5454

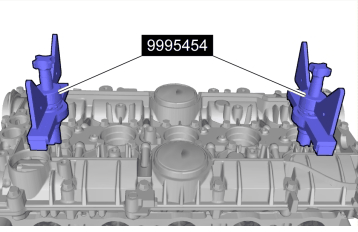

GLL168557

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 5454

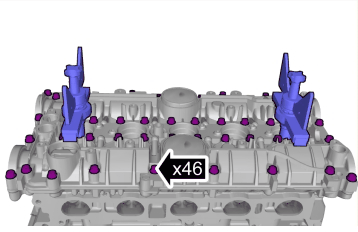

GLL168553

Courtesy of VOLVO CARS CORPORATION

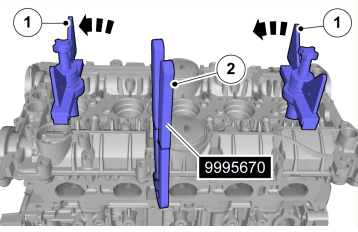

GLL168556

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the component.

Special Tool: 999 5670

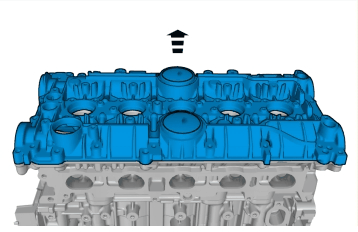

GLL168570

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the component.

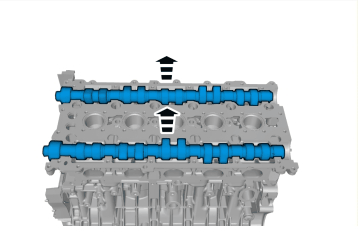

GLL168546

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of each component before removal.

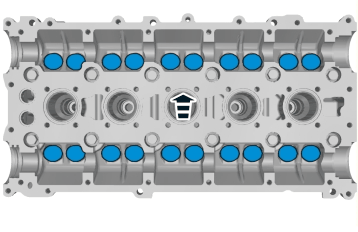

GLL168554

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of each component before removal.

Use: Magnet

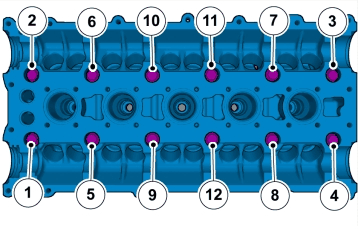

GLL168542

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to damage the mating faces.
