Cylinder Head, Disassembly/Assembly [2016, B4204T27]: Installation

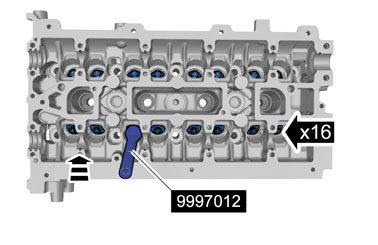

GLL172291Courtesy of VOLVO CARS CORPORATION
CAUTION:

Take extra care not to damage the seal.

NOTE:

Only use moderate force.

Refer to: Special Tool: 999 7012

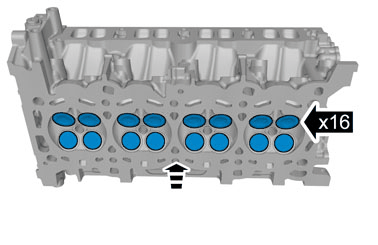

GLL172292Courtesy of VOLVO CARS CORPORATION
CAUTION:

Take extra care not to damage the seal.

NOTE:

Make sure that these components are installed to the noted removal position.

Use:  Engine oil,

Install the marked component.

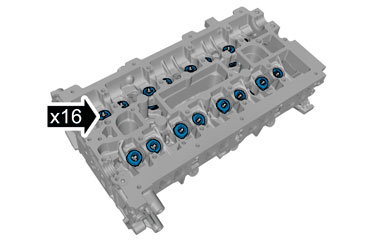

GLL172286Courtesy of VOLVO CARS CORPORATION
NOTE:

Make sure that these components are installed to the noted removal position.

Install the marked component.

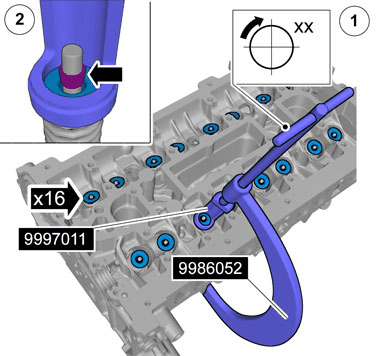

GLL172285Courtesy of VOLVO CARS CORPORATION
WARNING:

Make sure that the component is positioned correctly.

    NOTE:

    Only use moderate force.

  2. Install the catch.
