Cylinder Head, Disassembly/Assembly [2016, B4204T27]: Notes

NOTE: For more information on Volvo color coded illustrations, refer to IMAGES

SPECIAL TOOLS

Courtesy of VOLVO CARS CORPORATION	998 6052 VALVE SPRING B21 D16 D24  Tool number:  998 6052 Tool description:  VALVE SPRING B21 D16 D24 Tool boards:  20

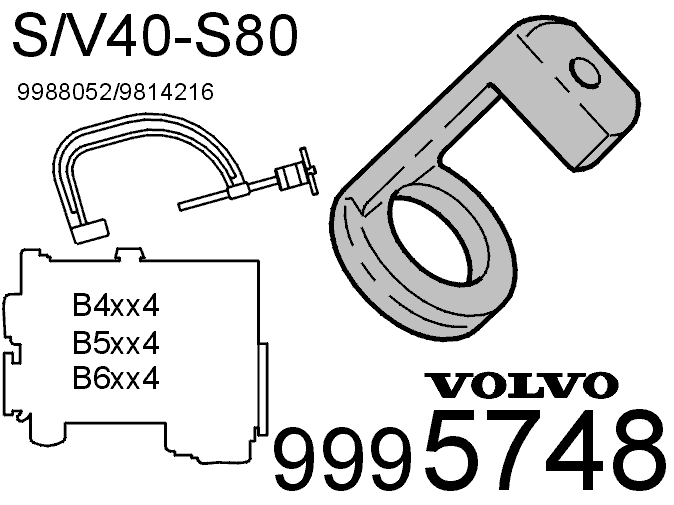

Courtesy of VOLVO CARS CORPORATION	999 5748 Valve compressor B 4164-B 6304  Tool number:  999 5748 Tool description:  Valve compressor B 4164-B 6304 Tool boards:  21

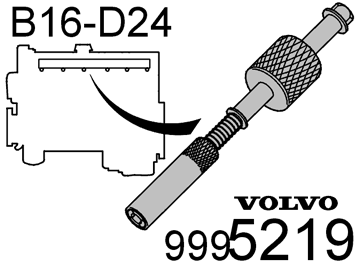

Courtesy of VOLVO CARS CORPORATION	999 5219 GRIP TOOL (VALVE GUIDE-SEAL)B16-D24  Tool number:  999 5219 Tool description:  GRIP TOOL (VALVE GUIDE-SEAL)B16-D24 Tool boards:  21
Courtesy of VOLVO CARS CORPORATION	999 7012 Drift valve stem seal diesel  Tool number:  999 7012 Tool description:  Drift valve stem seal diesel Tool boards:  21

Materials
Designation	Part number
Engine oil
