Removing torque converter screws

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

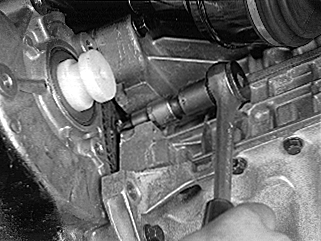

Fig 1: Removing Screws From Torque Converter

Courtesy of VOLVO CARS OF NORTH AMERICA.

(6 screws). Use Torx socket TX50 .

Open the hatch in the right fender liner and turn crankshaft with a socket.
