Removing right-hand side
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

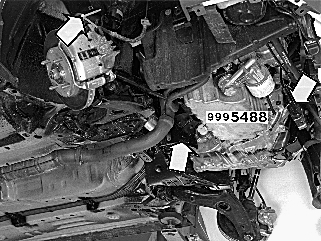

Pull drive shaft out of transmission.
Remove stub axle from spring strut, turn the stub axle (steering left) while pulling the drive shaft out of the transmission.
CAUTION:
Take care not to damage the sealing ring in the transmission.
Let drive shaft rest against front axle member.
Install plug 9995488 .
Tie up the stub axle so as not to stretch the brake hose.
Remove:
- Front and rear transmission brackets
- Screw on exhaust pipe mounting.
