Installing hoist

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

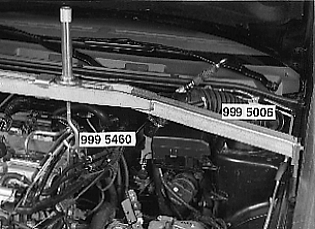

Fig 1: Identifying Lifting Beam And Lifting Hook Special Tools

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

Lifting beam 9995006
Lifting hook 9995460

Locate the lifting beam directly above the lifting eyelet on the engine

Raise the lifting hook a little.
