Disconnecting components in the engine compartment

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

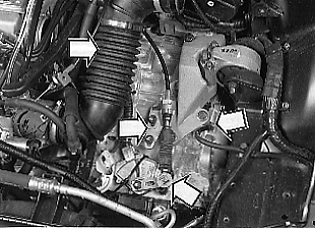

Fig 1: Charge Air Cooler (CAC) At Intake Manifold Hoses

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect:

Fresh air intake with connections and connector from intake manifold.
Fold the hose to one side and place on the fusebox
Gear selector cable from transmission
Ground lead from transmission.
