Connecting fixture
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

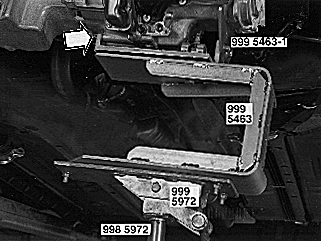

Install universal tool 9995972 and transmission fixture 9995463 on the mobile jack.
Install transmission fixture on transmission with two M10x35 screws.
At the same time install bearing plate (number 9995463-1) on fixture. The bearing plate has been modified according to Volvo Workshop Guide.
Bring mobile jack lightly into contact.
