Lifting engine and transmission

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

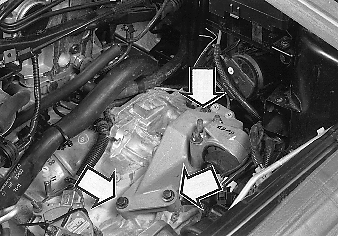

Fig 1: Installing Upper Transmission Mounting
GLL126137Courtesy of VOLVO CARS OF NORTH AMERICA.

Lower the car.

Raise engine and transmission

Locate and install the upper transmission mounting (3 screws).

Tighten screws.

Tightening torque: 50 Nm  .

Remove lifting hook and lifting beam.
