Installing torque converter screws

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

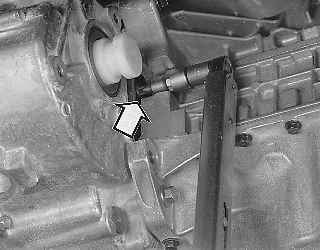

Fig 1: Fitting Torque Converter Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

Use new screws, Torx TX50.

Locate torque converter on carrier plate by turning engine with the crankshaft pulley nut (accessible through fender liner hatch).

Install all screws loosely (six screws). Tighten screws until heads are in contact with the carrier plate.

Then tighten to 35 Nm . Socket Torx TX 50.

CAUTION:

Remove socket from crankshaft when the work is complete.
