Installing left/right drive shafts
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

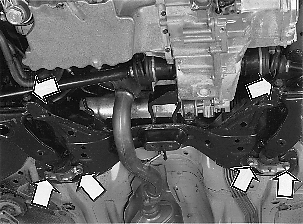

Install drive shafts in differential housing.
HINT: Use mobile jack 9985972 as a support under the control arm.
At the same time locate stub axles on spring strut. Install screws loosely. The nuts will be installed later.
CAUTION:
Take care not to damage boots and sealing rings.
Press in drive shafts properly.
