Install the support
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Install:
- lifting beam
9995006
directly above the rear lifting eye.
- lifting hook
9995460
. Raise the engine a little.

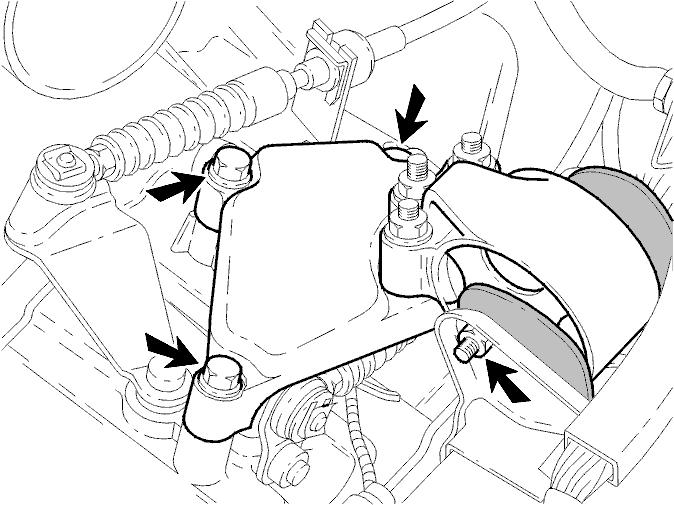

Remove the transmission mounting bolt from the bodywork. Remove the 3 bolts from the transmission bracket.
Remove the mounting assembly.
