Connect fixture
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLVO CARS OF NORTH AMERICA.

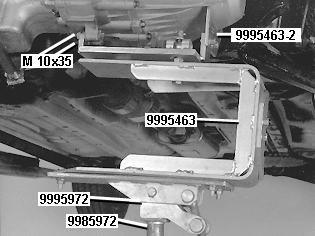

Install fixture
9995972
and fixture
9995463
on mobile jack
9985972
.
Install the transmission fixture on the transmission. Use two screws M10x35.
At the same time locate support plate 999 5463-2 on the fixture.
Install the mobile jack to light contact.
