Installing the electronic accessory pump assembly
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

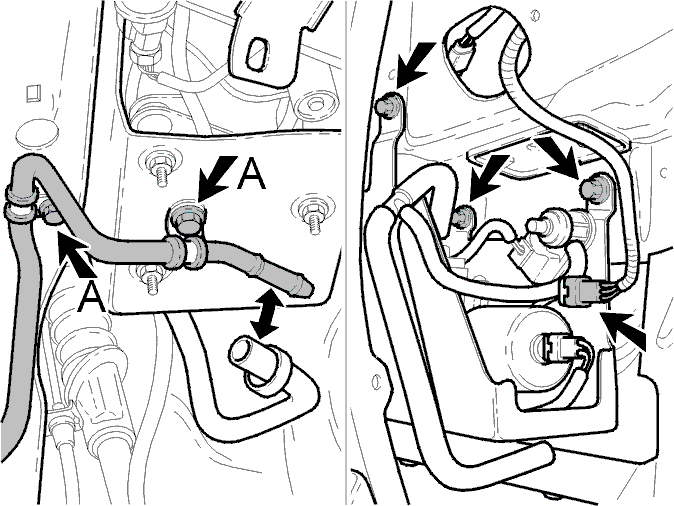

- Install the electronic accessory pump assembly on the side member. Use the three screws.
HINT: Install the front screw. Use an extension socket.
Tighten to 25 Nm
- Connect the connector to the cable harness
- Press the connector into the mounting. Ensure that the connector is secure.
HINT: Cut away part of the connector if it does not sit in the mounting correctly.
- To prevent damage, the cable harness must be routed so that it is not rubbing against the bodywork
- Install the vacuum line on the side member and pump bracket. Use the clamps (A).
Tighten to 25 Nm .
NOTE: Make sure that the vacuum line is not in contact with the body. - Connect the vacuum hose to the vacuum line.
Check the function of the electronic accessory pump. See Checking the Function Of the Electric Auxiliary Pump
- Secure the fender liner (1 screw, 1 bolt and 1 plug).
