Checking the Function Of the Electric Auxiliary Pump

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

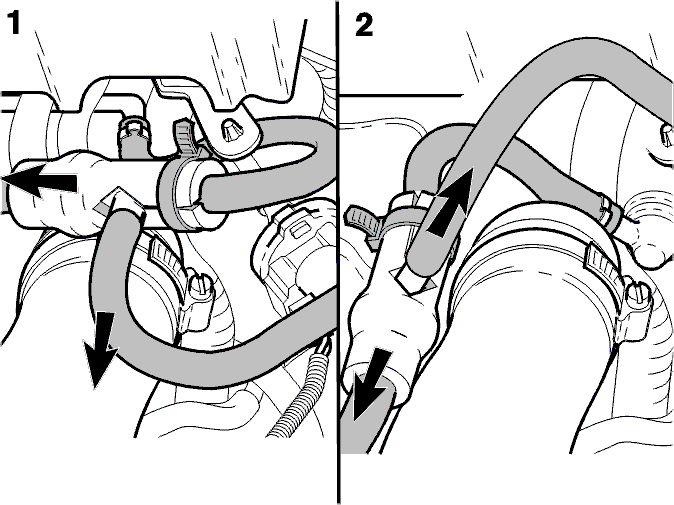

Fig 1: Identifying Engine Guard And Vacuum Hose Of Pump

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the engine guard.
- LHD car, see 2 in Fig 1.
- RHD car, see 1 in Fig 1.
Move the insulation aside and detach the vacuum hose of the pump from the T-valve.
- LHD car, see 2 in Fig 1.
- RHD car, see 1 in Fig 1.
NOTE: First check the function of the T-valve. See Checking the T-valve
Ignition on: Listen to the electric auxiliary pump. Is it activated and does it run for a few seconds?

If the electric auxiliary pump is not activated, see Checking Fuses, Relays, Pressostat And Cable Harness
If the electric auxiliary pump is activated and runs, see Checking the Output Of the Electric Auxiliary Pump
