Removing engine complete with transmission
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

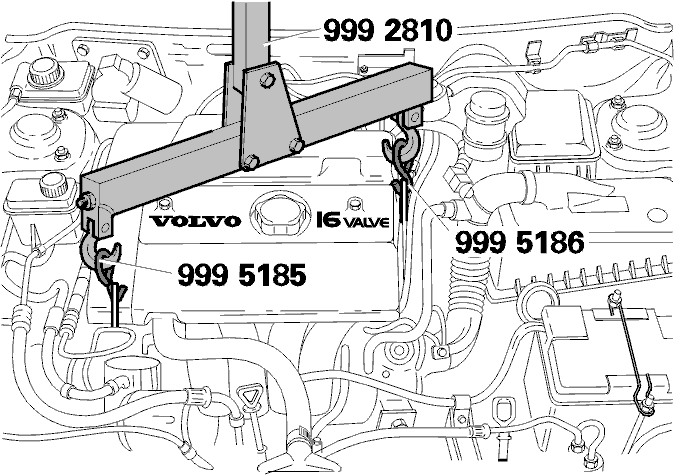

- Attach the lifting lugs 9995185 and 9995186 to the lifting beam 9992810
- Connect the lifting beam 9992810 to a hoist
- Connect the lifting lugs 9995185 and 9995186 to the engine
- Lift the weight of the engine
- Remove the engine mountings on the engine side and the transmission side
- Lift the engine out.
NOTE:
Check carefully to see that the complete transmission does not touch the body or any components.
