Non turbo engine complete with transmission, removing: Remove:

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

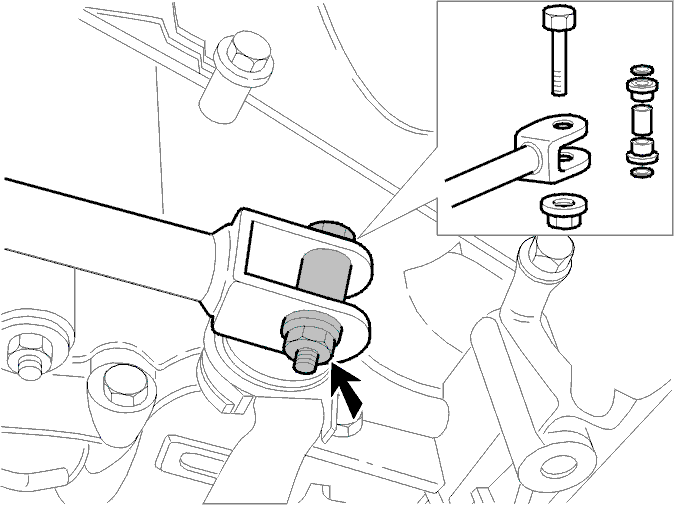

Fig 1: Selector Rod

Courtesy of VOLVO CARS OF NORTH AMERICA.

The down pipe, see Remove the down pipe
The selector rod at the transmission side, tie up the rod
The front engine and (MT) the rear engine bracket.

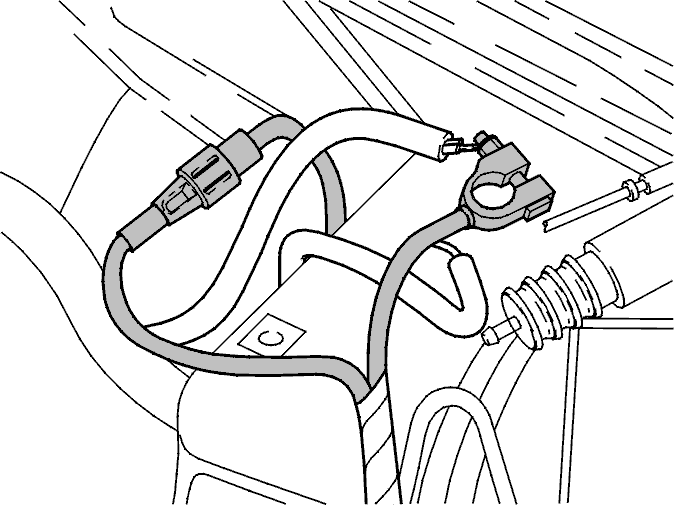

Fig 1: Removing Cable Lug And Plug Connector From Positive Battery Lead

Courtesy of VOLVO CARS OF NORTH AMERICA.

The vacuum hose from the pressure sensor
The vacuum hose from the air solenoid valve
The cable lug and the plug connector from the positive battery lead
The lock nut from the plastic lead holder.
